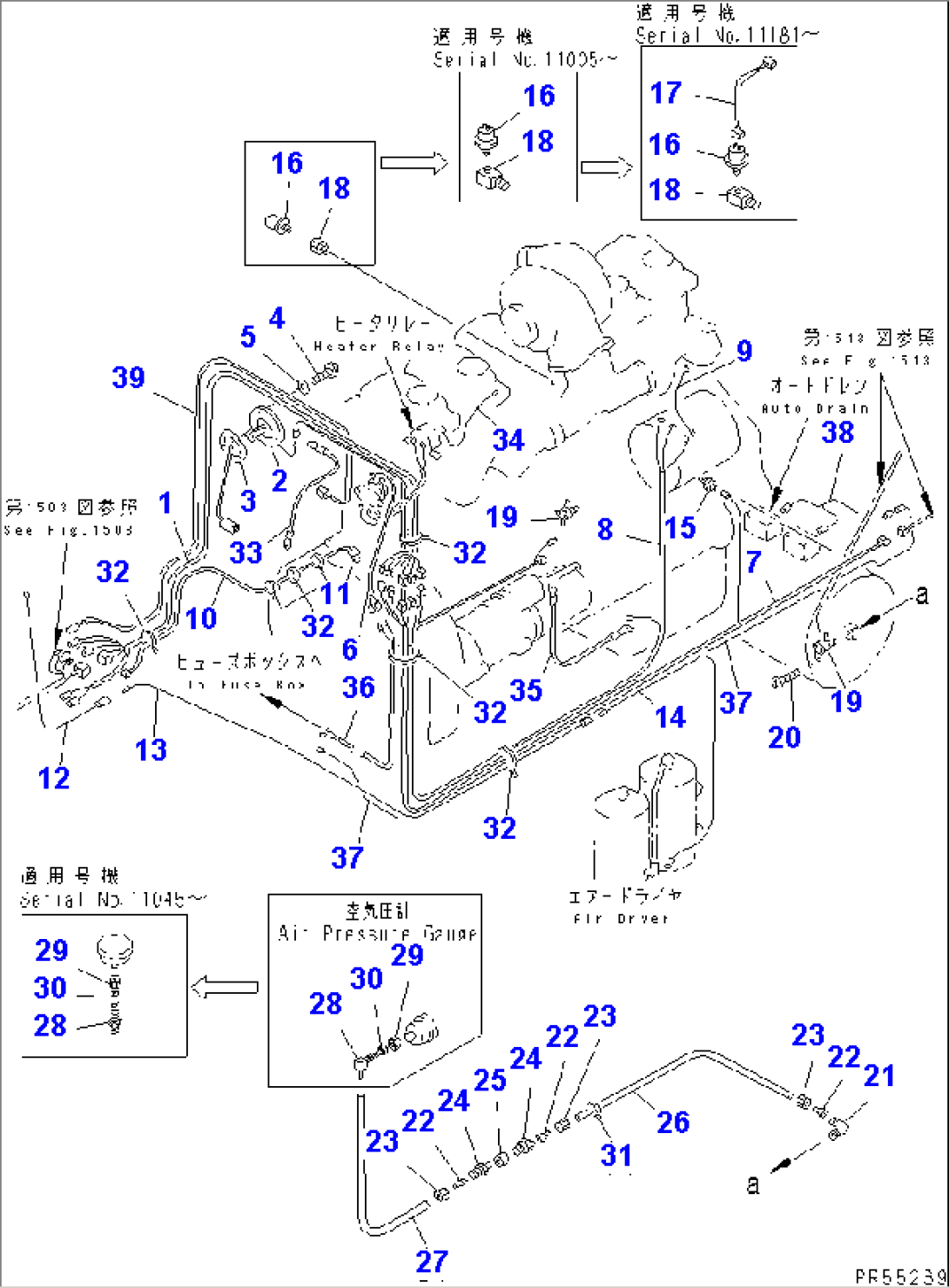

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 234-06-41131 | HARNESS | 11001- | |
| 2 | 232-06-52431 | SENSOR,FUEL | 11340- | |
| 232-06-52430 | SENSOR,FUEL | 11001-11339 | ||
| 3 | 237-06-15190 | PACKING | 11001- | |
| 4 | 01220-40412 | SCREW | 11001- | |
| 5 | 01601-20410 | WASHER,SPRING | 11001- | |
| 6 | 232-06-51790 | HARNESS | 11001- | |
| 7 | 234-06-41142 | HARNESS | 11340- | |
| 234-06-41141 | HARNESS | 11001-11339 | ||
| 8 | 234-06-41252 | HARNESS | 12001- | |
| 234-06-41251 | HARNESS | 11256-12000 | ||
| 234-06-41250 | HARNESS | 11001-11255 | ||
| 234-06-41351 | HARNESS,(FOR 90A ALTERNATOR) | 12001- | ||
| 234-06-41350 | HARNESS,(FOR 90A ALTERNATOR) | 11001-12000 | ||
| 9 | 232-808-5110 | CABLE | 11256- | |
| 234-06-42560 | CABLE | 11001-11255 | ||
| 234-806-4540 | CABLE,(FOR 90A ALTERNATOR) | 11001- | ||
| 10 | 234-06-41310 | HARNESS,(100B) | 11032-11367 | |
| \0\232-06-54190 | CABLE,(60B) | 11001-11031 | ||
| 11 | 281-06-14280 | SWITCH,DIFFERENTIAL LOCK | 11001-11367 | |
| 12 | 237-806-6160 | CABLE | 11001- | |
| 13 | 237-806-6130 | CABLE | 11001- | |
| 14 | 237-806-6120 | CABLE | 11001- | |
| 15 | 237-06-15120 | SENSOR,THERMO | 11001- | |
| 16 | 232-06-52461 | SENSOR,OIL PRESSURE | 11005- | |
| \0\232-06-52460 | SENSOR,OIL PRESSURE | 11001-11004 | ||
| 17 | 234-06-42220 | HARNESS | 11181- | |
| 18 | 232-06-61470 | NIPPLE | 11005- | |
| \0\238-06-14310 | NIPPLE | 11001-11004 | ||
| 19 | 500-44-14160 | SWITCH,LOW PRESSURE | 11001- | |
| 20 | 01220-40408 | SCREW | 11001- | |
| 21 | 07834-00413 | ELBOW | 11001- | |
| 22 | 07831-00411 | SLEEVE | 11001- | |
| 23 | 07833-00410 | NUT | 11001- | |
| 24 | 07836-00410 | CONNECTOR | 11001- | |
| 25 | 07324-60100 | COUPLING | 11001- | |
| 26 | 07823-00427 | TUBE | 11045- | |
| 07823-00425 | TUBE | 11001-11044 | ||
| 27 | 07823-00419 | TUBE | 11001- | |
| 28 | 235-06-15350 | NIPPLE | 11045- | |
| 238-06-11690 | ELBOW | 11001-11044 | ||
| 29 | 234-06-11920 | NUT | 11001- | |
| 30 | 234-06-11930 | SLEEVE | 11001- | |
| 31 | 08034-00310 | BAND | 11001- | |
| 32 | 08034-00414 | BAND | 11368- | |
| 08034-00414 | BAND | 11001-11367 | ||
| 33 | 238-06-11150 | CABLE | 11001- | |
| 34 | 234-06-41220 | CABLE | 11005- | |
| \0\234-06-21290 | CABLE | 11001-11004 | ||
| 35 | 234-06-32190 | CABLE | 11256- | |
| 234-06-31610 | CABLE | 11001-11255 | ||
| 36 | (232-06-51780) | HARNESS | 11001- | |
| 37 | 234-06-31650 | CABLE | 11001- | |
| 38 | 234-06-31640 | CABLE | 11001- | |
| 39 | 234-06-42630 | HARNESS | 11321- |
