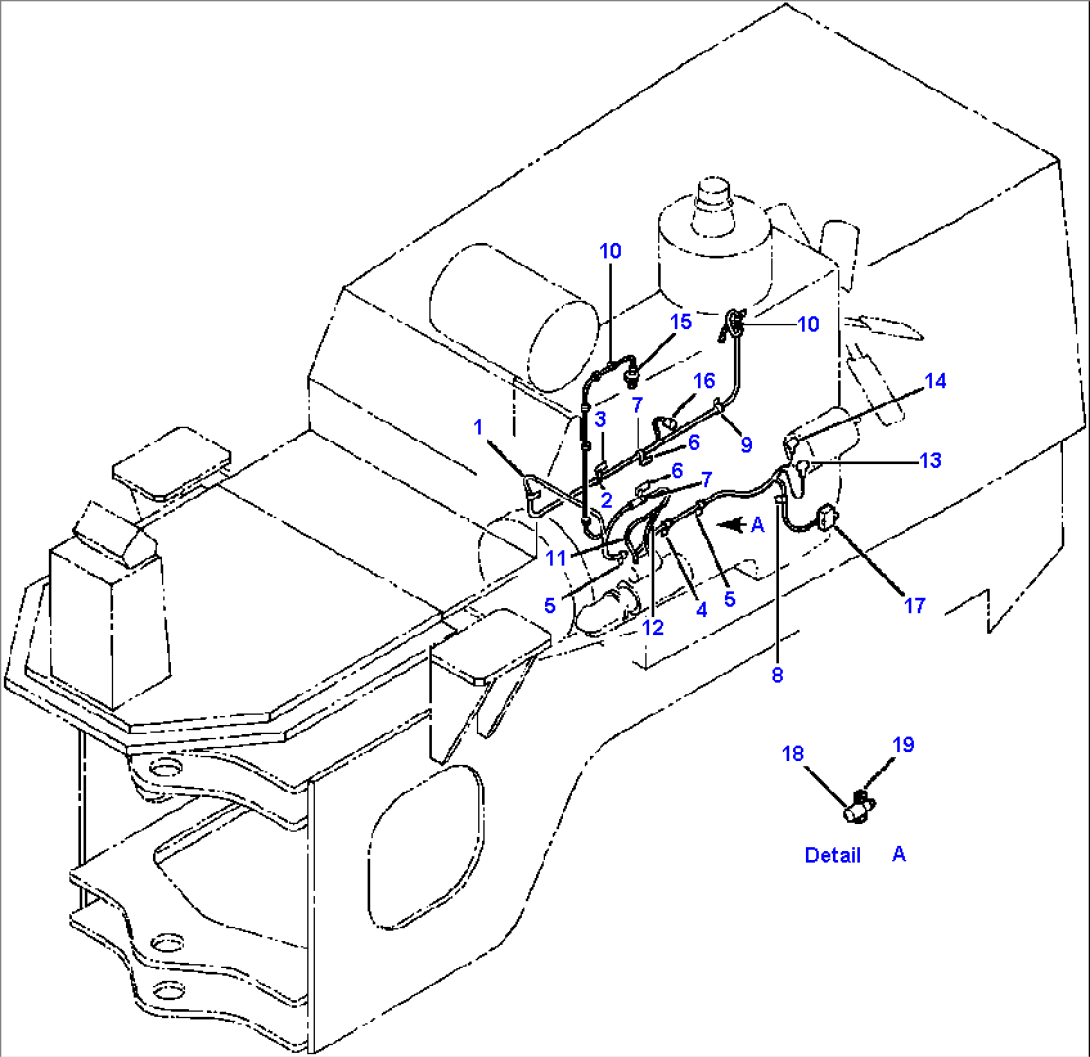

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-06-12410 | HARNESS, ENGINE WIRING | ||
| 421-06-11970 | DIODE | |||
| 2 | 08052-02711 | CLIP, HARNESS | ||
| 01220-40608 | SCREW, CLIP | |||
| 01641-20608 | WASHER | |||
| 3 | 421-06-12670 | BRACKET | ||
| 02010-70719 | BOLT, BRACKET | |||
| 01640-21016 | WASHER | |||
| 4 | 08036-01814 | CLIP, HARNESS | ||
| 5 | 08036-01414 | CLIP, HARNESS | ||
| 6 | 421-06-12670 | BRACKET, CLIP | ||
| 24 859 R1 | BOLT, 1/2NC X 3/4 CLIP | |||
| 01640-21323 | WASHER | |||
| 7 | 421-06-12910 | CLIP, HARNESS | ||
| 01220-40608 | SCREW, CLIP | |||
| 01641-20608 | WASHER | |||
| 8 | 08036-01014 | CLIP, HARNESS | ||
| 01010-51016 | BOLT, CLIP | |||
| 01643-31032 | WASHER | |||
| 9 | 08036-00814 | CLIP, HARNESS | ||
| 10 | 08034-00519 | STRAP, TIE | ||
| 11 | 425-06-12460 | WIRE, STARTER MOTOR | ||
| 12 | 425-06-12450 | WIRE, STARTER RELAY | ||
| 13 | 08038-00519 | CAP, ALTERNATOR TERMINAL | ||
| 14 | 08038-02027 | CAP, ALTERNATOR TERMINAL | ||
| 15 | 206-01-A1130 | SENSOR, WATER TEMPERATURE | ||
| 16 | 425-06-A1120 | SENSOR, ENGINE OIL PRESSURE | ||
| 17 | 421-06-11440 | BREAKER, MAIN CIRCUIT | ||
| 01435-00616 | BOLT, CIRCUIT BREAKER | |||
| 18 | 425-06-11510 | RELAY, SAFETY (STARTER) | ||
| 19 | 425-06-11520 | PLATE, RELAY MOUNTING | ||
| 01435-00612 | BOLT, PLATE | |||
| 01584-00605 | NUT | |||
| 25 496 R1 | BOLT, PLATE | |||
| 01643-31032 | WASHER |
