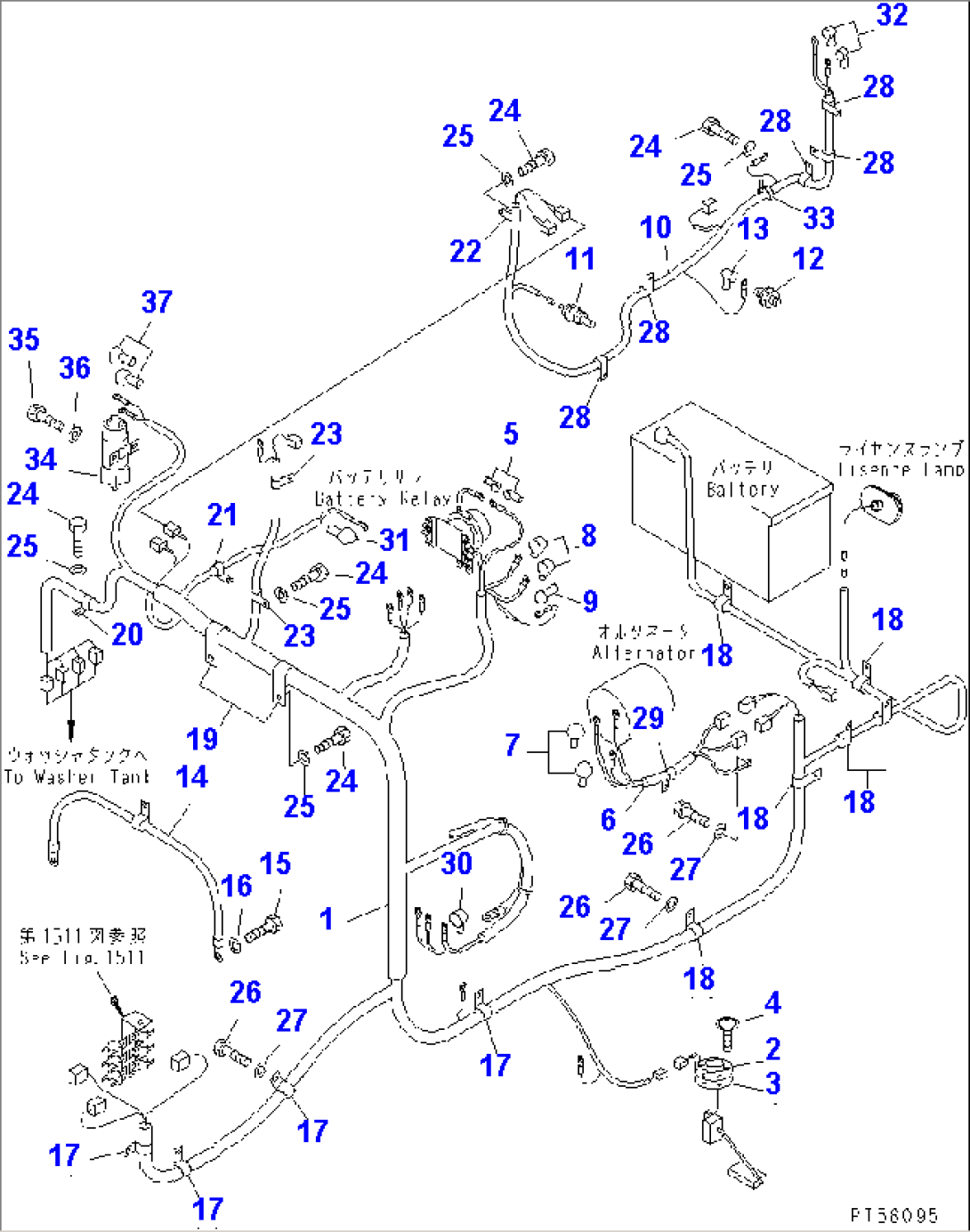

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23E-06-31311 | HARNESS,ENGINE | 7001- | |
| 08020-10000 | DIODE | 7001- | ||
| 2 | 23E-06-33410 | SENSOR,FUEL LEVEL | 7001- | |
| 3 | 237-06-15190 | PACKING | 7001- | |
| 4 | 01023-10412 | SCREW | 7001- | |
| 5 | 08038-00218 | CAP | 7001- | |
| 6 | 23D-06-31320 | HARNESS,ALTERNATOR | 7001- | |
| 7 | 08038-00525 | CAP | 7001- | |
| 8 | 08038-02027 | CAP | 7001- | |
| 9 | 08038-00519 | CAP | 7001- | |
| 10 | 23E-06-31350 | HARNESS,SENSOR | 7001- | |
| 11 | 237-06-15120 | SENSOR,ENGINE WATER TEMPERATURE | 7001- | |
| 12 | 08073-00505 | SWITCH,ENGINE OIL PRESSURE | 7001- | |
| 13 | 08038-00519 | CAP | 7001- | |
| 14 | 23E-06-11220 | WIRE,EARTH | 7001- | |
| 15 | 01010-81020 | BOLT | 7001- | |
| 16 | 01643-31032 | WASHER | 7001- | |
| 17 | 23D-06-31780 | CLIP | 7001- | |
| 18 | 23D-06-31790 | CLIP | 7001- | |
| 19 | 04434-53411 | CLIP | 7001- | |
| 20 | 04434-52510 | CLIP | 7001- | |
| 21 | 04434-51010 | CLIP | 7001- | |
| 22 | 04434-51410 | CLIP | 7001- | |
| 23 | 04434-51710 | CLIP | 7001- | |
| 24 | 01010-81020 | BOLT | 7001- | |
| 25 | 01643-31032 | WASHER | 7001- | |
| 26 | 01010-81016 | BOLT | 7001- | |
| 27 | 01643-31032 | WASHER | 7001- | |
| 28 | 04434-51408 | CLIP | 7001- | |
| 29 | 08036-01414 | CLIP | 7001- | |
| 30 | 08038-00525 | CAP | 7001- | |
| 31 | 08038-02027 | CAP | 7001- | |
| 32 | 08038-00519 | CAP | 7001- | |
| 33 | 08034-00519 | BAND | 7001- | |
| 34 | 600-815-7550 | SOLENOID ASS'Y | 7001- | |
| 35 | 01010-80612 | BOLT | 7001- | |
| 36 | 01643-30623 | WASHER | 7001- | |
| 37 | 08038-00218 | CAP | 7001- |
