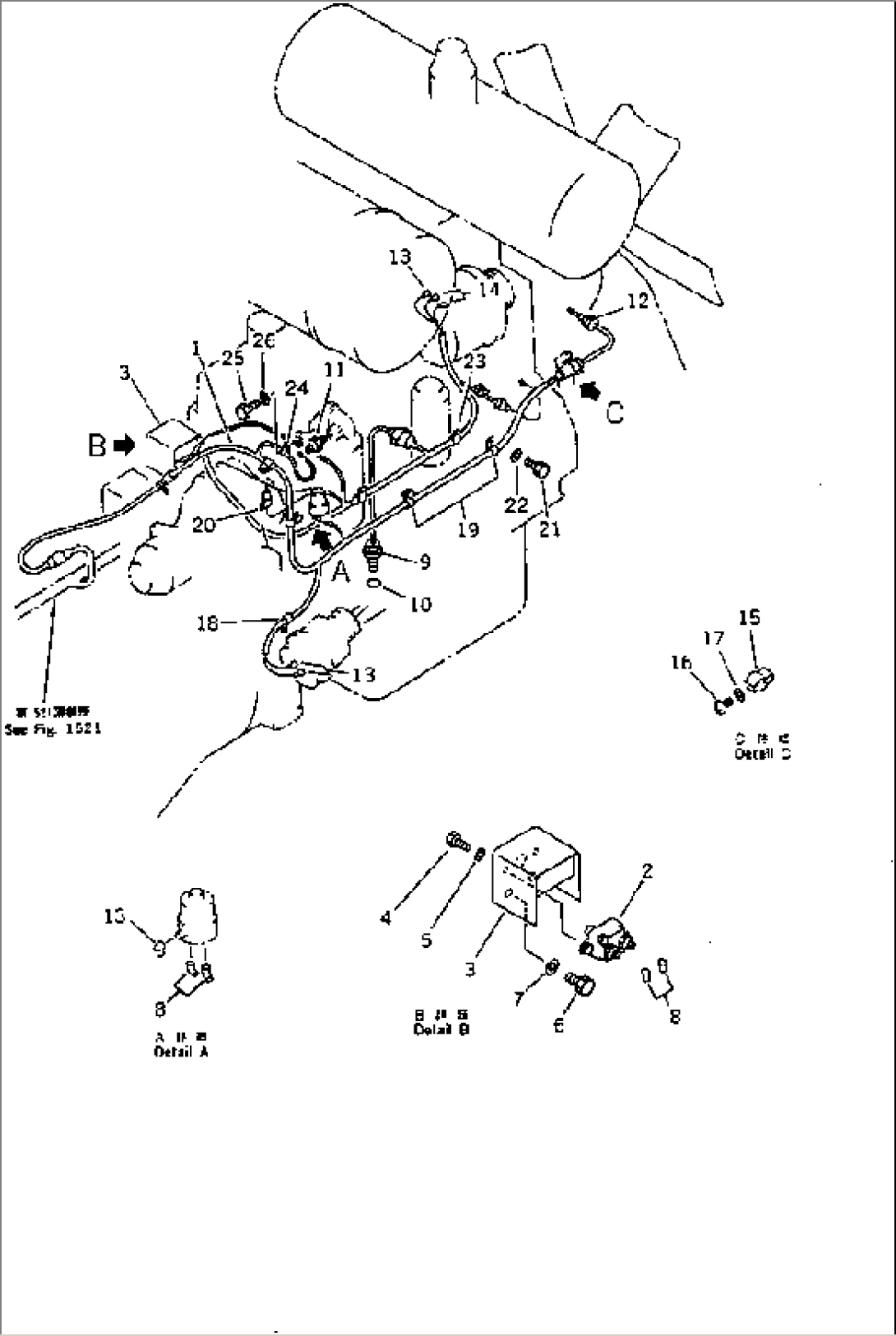

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-12371 | WIRE ASS'Y | 10001-19999 | |
| 1 | 421-06-11970 | DIODE | 10001-19999 | |
| 2 | 421-06-11440 | BREAKER | 10001-19999 | |
| 3 | 421-06-11450 | BRACKET | 10001-19999 | |
| 4 | 01010-50616 | BOLT | 10001-19999 | |
| 5 | 01643-30623 | WASHER | 10001-19999 | |
| 6 | 01010-51020 | BOLT | 10001-19999 | |
| 7 | 01643-31032 | WASHER | 10001-19999 | |
| 8 | 08038-00525 | CAP | 10001-19999 | |
| 9 | (7861-91-4500) | SENSOR,ENGINE OIL LEVEL | 10001-19999 | |
| 10 | 07002-23634 | O-RING | 10001-19999 | |
| 11 | (08073-00505) | SWITCH | 10001-19999 | |
| 12 | (7861-91-3320) | SENSOR,WATER TEMPERATURE | 10540-@ | |
| 12 | (\0\7861-91-3310) | SENSOR,WATER TEMPERATURE | 10001-10539 | |
| 13 | 08038-00519 | CAP | 10054-19999 | |
| 13 | 08038-00518 | CAP | 10001-10053 | |
| 14 | 08038-00519 | CAP | 10001-19999 | |
| 15 | 421-06-12910 | CLIP | 10001-19999 | |
| 16 | 01220-40612 | SCREW | 10001-19999 | |
| 17 | 01641-20608 | WASHER | 10001-19999 | |
| 18 | 424-35-12240 | CLIP | 10001-19999 | |
| 19 | 419-09-11160 | CLIP | 10001-19999 | |
| 20 | 423-06-12640 | CLIP | 10001-19999 | |
| 21 | 01010-51016 | BOLT | 10001-19999 | |
| 22 | 01643-31032 | WASHER | 10001-19999 | |
| 23 | 08036-01814 | CLIP | 10001-19999 | |
| 24 | 08036-10810 | CLIP | 10001-19999 | |
| 25 | 01010-50612 | BOLT | 10001-19999 | |
| 26 | 01643-30623 | WASHER | 10001-19999 |
