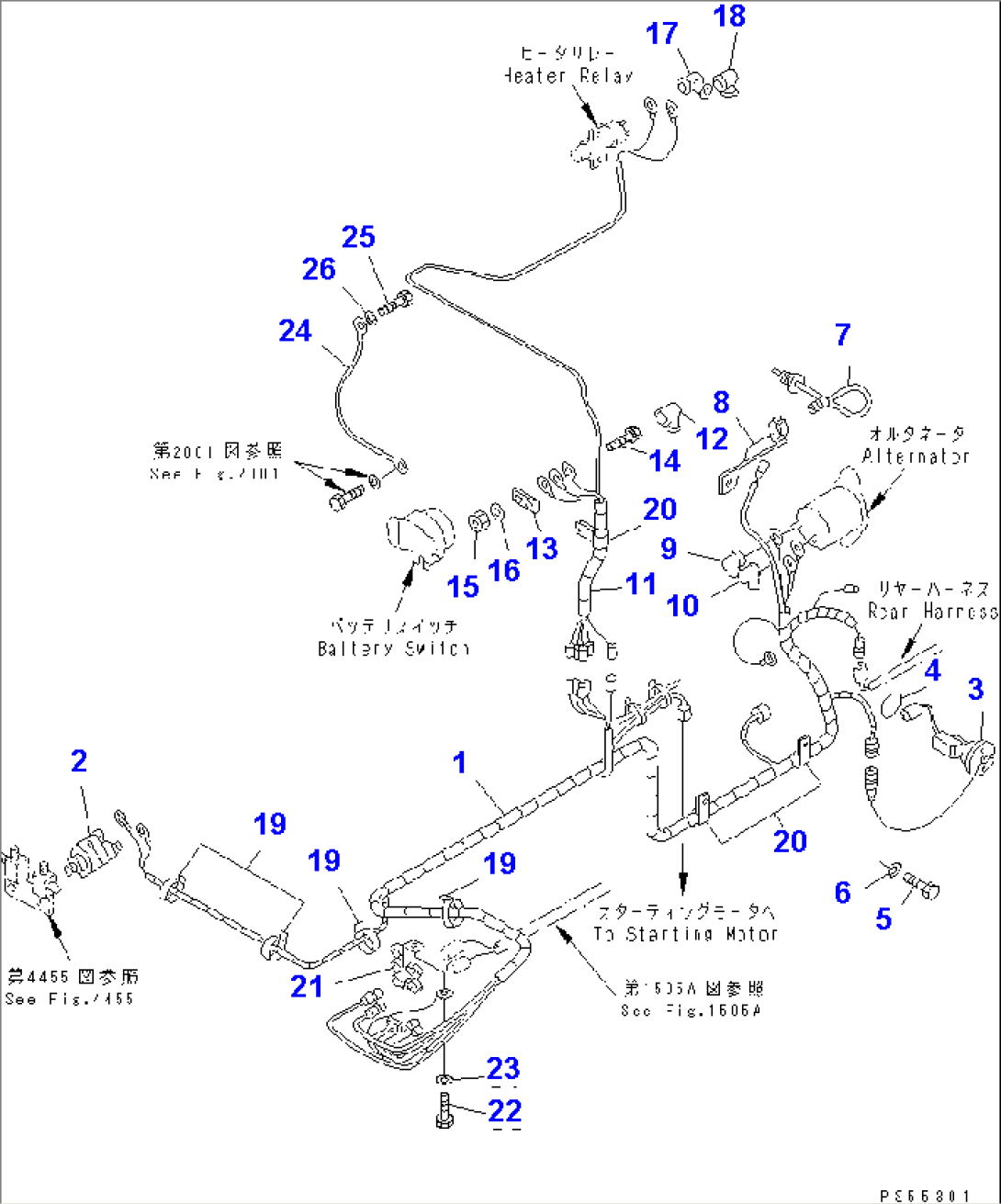

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23F-06-11391 | HARNESS | 11002-@ | |
| 2 | 281-06-14280 | SWITCH,STOP LAMP | 11001-@ | |
| 3 | 7861-91-4760 | SENSOR,FUEL | 11001-@ | |
| 4 | 07000-12085 | O-RING | 11001-@ | |
| 5 | 01010-51020 | BOLT | 11001-@ | |
| 6 | 01643-31032 | WASHER | 11001-@ | |
| 7 | 7861-91-3320 | SENSOR,WATER TEMPERATURE | 11001-@ | |
| 8 | 23B-06-12110 | BRACKET | 11001-@ | |
| 9 | 08038-02027 | CAP | 11002-@ | |
| 10 | 08038-00519 | CAP | 11002-@ | |
| 11 | 23F-06-11431 | HARNESS | 11003-@ | |
| 12 | 232-06-11960 | CAP | 11001-@ | |
| 13 | 234-06-32240 | PLATE | 11001-@ | |
| 14 | 01010-50820 | BOLT | 11001-@ | |
| 15 | 01580-10806 | NUT | 11001-@ | |
| 16 | 01643-30823 | WASHER | 11001-@ | |
| 17 | 08038-00519 | CAP | 11001-@ | |
| 18 | 08038-02027 | CAP | 11003-@ | |
| 19 | 08034-00519 | BAND | 11001-@ | |
| 20 | 08036-02514 | CLIP | 11001-@ | |
| 21 | 23F-06-11210 | BRACKET | 11001-11013 | |
| 22 | 01010-51016 | BOLT | 11001-@ | |
| 23 | 01643-31032 | WASHER | 11001-@ | |
| 24 | 23C-06-11150 | WIRE | 11001-@ | |
| 25 | 01010-51018 | BOLT | 11001-@ | |
| 26 | 01643-31032 | WASHER | 11001-@ |
