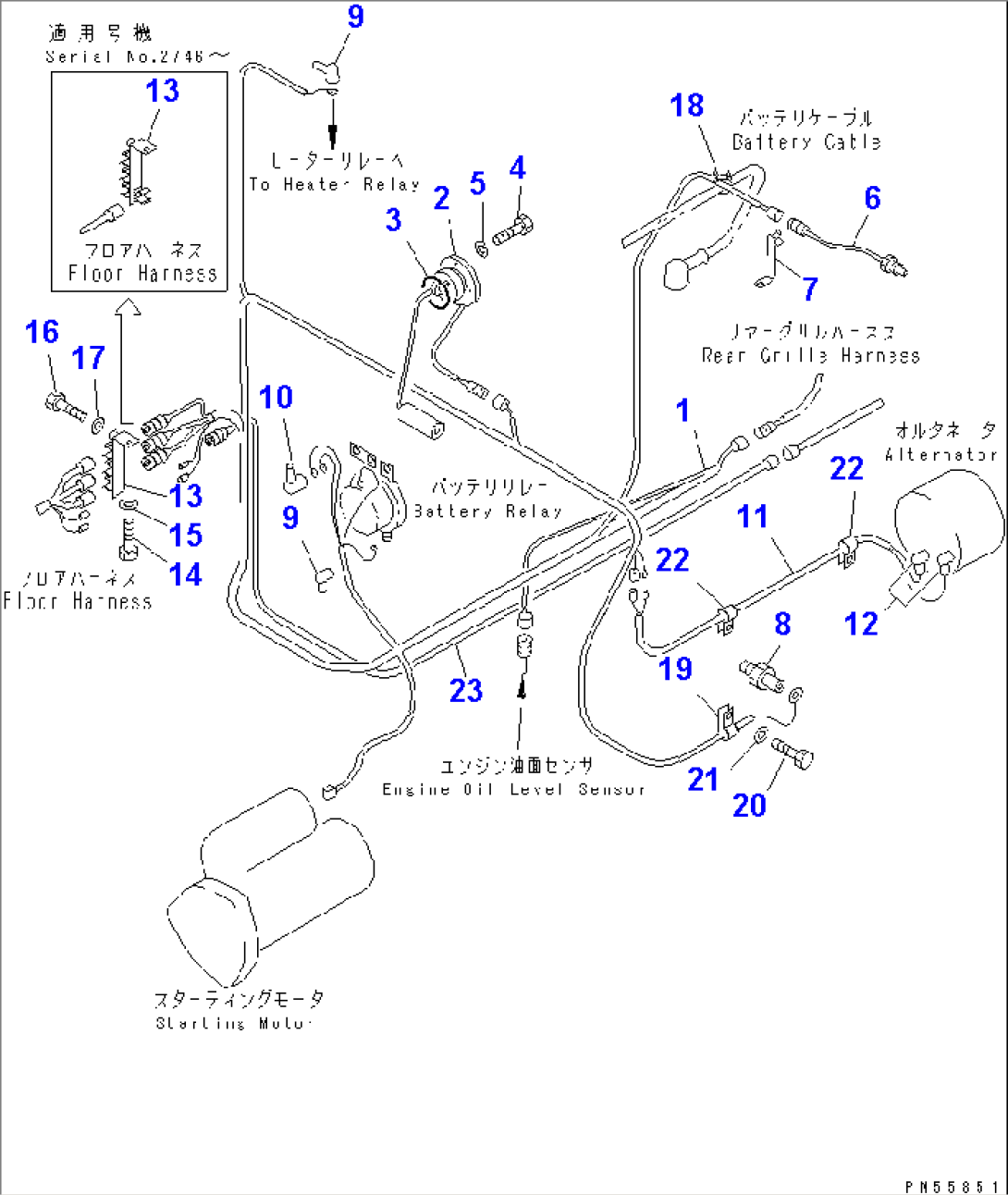

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-06-11161 | WIRE ASS'Y | 1236-3400 | |
| 2 | 7861-91-4860 | SENSOR,FUEL | 1356-@ | |
| 3 | 07000-12085 | O-RING | 1001-@ | |
| 4 | 01010-51020 | BOLT | 1001-@ | |
| 5 | 01643-31032 | WASHER | 1001-@ | |
| 6 | 7861-91-3320 | SENSOR,WATER TEMPERATURE | 1170-@ | |
| 7 | 23D-06-12350 | BRACKET | 1001-@ | |
| 8 | 08073-00505 | SWITCH,ENGINE OIL PRESSURE | 1236-@ | |
| 9 | 08038-00218 | CAP | 1001-@ | |
| 10 | 232-06-11960 | CAP | 1001-@ | |
| 11 | 23D-06-11230 | WIRE ASS'Y | 1001-3400 | |
| 12 | 08038-00519 | CAP | 1001-@ | |
| 13 | 23D-06-12362 | BRACKET | 2746-@ | |
| 23D-06-12361 | BRACKET | 1236-2745 | ||
| 14 | 01010-51016 | BOLT | 1001-@ | |
| 15 | 01643-31032 | WASHER | 1001-@ | |
| 16 | 01010-50610 | BOLT | 1001-@ | |
| 17 | 01643-30623 | WASHER | 1001-@ | |
| 18 | 08034-00414 | BAND | 1001-@ | |
| 19 | 08036-01814 | CLIP | 1001-@ | |
| 20 | 01010-51016 | BOLT | 1001-@ | |
| 21 | 01643-31032 | WASHER | 1001-@ | |
| 22 | 08036-01414 | CLIP | 1001-@ | |
| 23 | 23E-06-11530 | WIRE ASS'Y | 2746-3400 |
