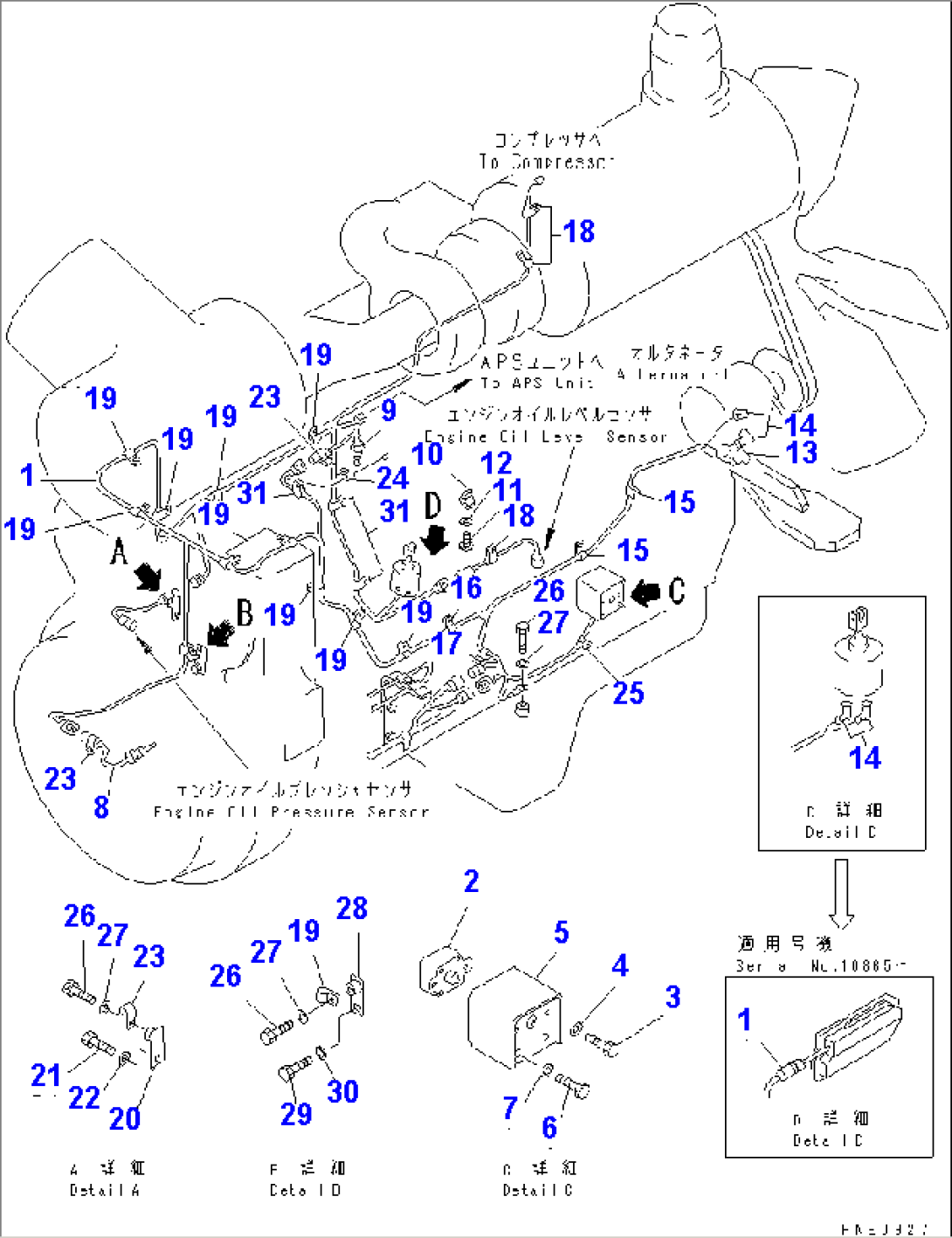

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-12129 | WIRE ASS'Y | 11387- | |
| \0\426-06-12128 | WIRE ASS'Y | 11335-11386 | ||
| \0\426-06-12127 | WIRE ASS'Y | 11129-11334 | ||
| 426-06-12126 | WIRE ASS'Y | 10966-11128 | ||
| \0\426-06-12125 | WIRE ASS'Y | 10865-10965 | ||
| 426-06-12124 | WIRE ASS'Y | 10343-10864 | ||
| 426-06-12123 | WIRE ASS'Y | 10158-10342 | ||
| 426-06-12122 | WIRE ASS'Y | 10001-10157 | ||
| 08020-10000 | DIODE | 10001- | ||
| 2 | 421-06-11440 | BREAKER | 10001- | |
| 3 | 01010-80616 | BOLT | 10001- | |
| 4 | 01643-30623 | WASHER | 10001- | |
| 5 | 421-06-11450 | BRACKET | 10001- | |
| 6 | 01010-81020 | BOLT | 10001- | |
| 7 | 01643-31032 | WASHER | 10001- | |
| 8 | (7861-91-3320) | SENSOR,OIL TEMPERATURE | ..- | |
| (\0\7861-91-3310) | SENSOR,OIL TEMPERATURE | .-.. | ||
| (\0\7861-99-3300) | SENSOR,OIL TEMPERATURE | 10001-. | ||
| 9 | (7861-91-3320) | SENSOR,WATER TEMPERATURE | 10382- | |
| (\0\7861-99-3300) | SENSOR,WATER TEMPERATURE | 10001-10381 | ||
| 10 | 421-06-12910 | CLIP | 10001- | |
| 11 | 01220-40608 | SCREW | 10001- | |
| 12 | 01641-20608 | WASHER | 10001- | |
| 13 | 08038-02027 | CAP | 10001- | |
| 14 | 08038-00519 | CAP | 10001- | |
| 15 | 424-06-12740 | CLIP | 10001- | |
| 16 | 424-06-12760 | CLIP | 10001- | |
| 17 | 08036-02514 | CLIP | 10001- | |
| 18 | 425-70-13120 | CLIP | 10001- | |
| 19 | 426-35-11250 | CLIP | 10001- | |
| 20 | 425-06-11570 | BRACKET | 10001- | |
| 21 | 01010-81225 | BOLT | 10001- | |
| 22 | 01643-31232 | WASHER | 10001- | |
| 23 | 423-06-12640 | CLIP | 10001- | |
| 24 | 362-43-18780 | CLIP | 10001- | |
| 25 | 424-06-12720 | CLIP | 10001- | |
| 26 | 01010-81020 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10001- | |
| 28 | 426-06-11570 | BRACKET | 10001- | |
| 29 | 01010-81220 | BOLT | 10001- | |
| 30 | 01643-31232 | WASHER | 10001- | |
| 31 | 08052-01711 | CLIP | 10001- |
