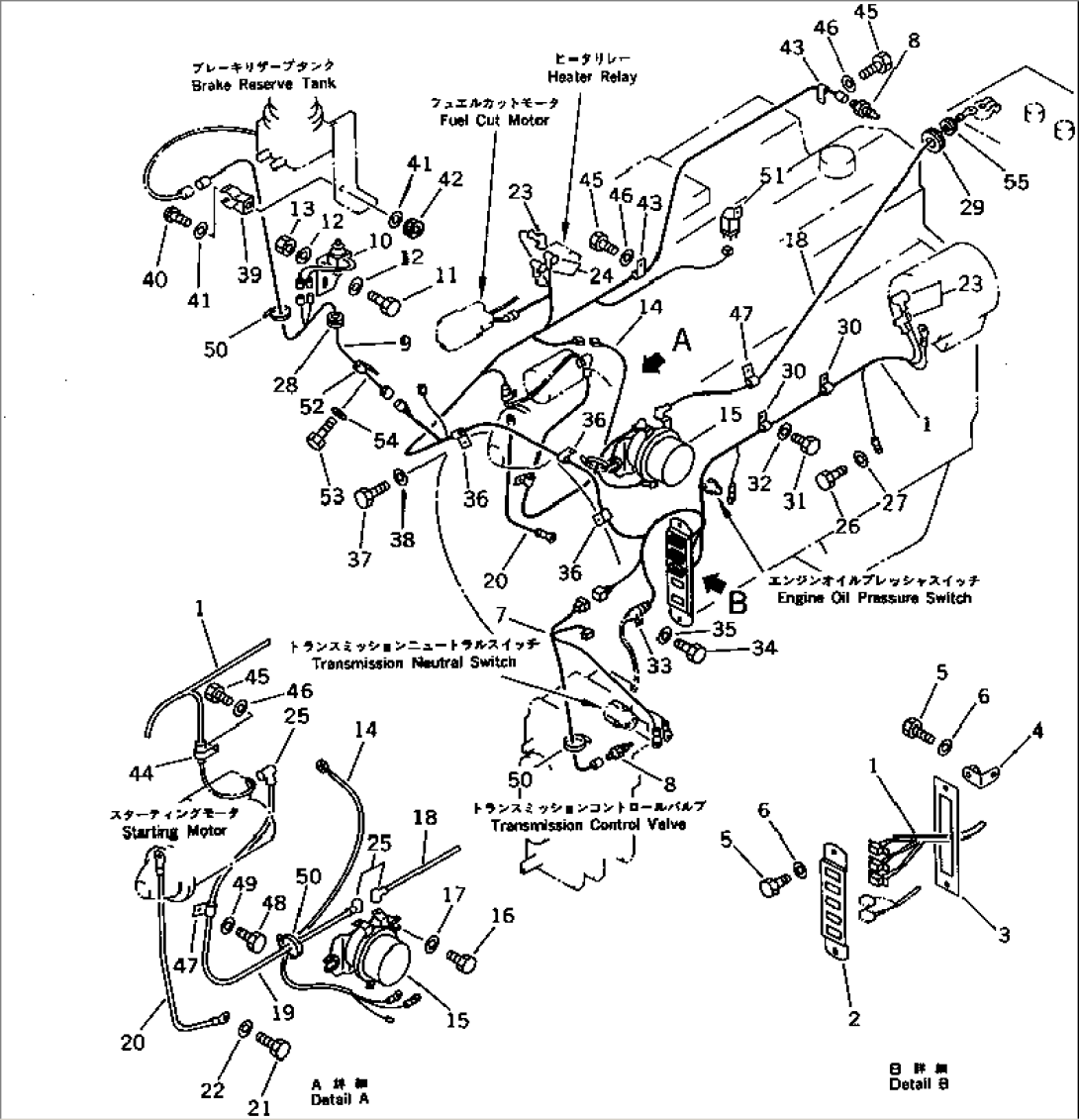

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-12226 | WIRE ASS'Y | ..-19999 | |
| 2 | 417-06-12350 | PLATE | 10001-19999 | |
| 3 | 417-06-12360 | PLATE | 10001-19999 | |
| 4 | 6110-23-5331 | BRACKET | 10001-19999 | |
| 5 | 01010-30820 | BOLT | 10001-19999 | |
| 6 | 01643-30823 | WASHER | 10001-19999 | |
| 7 | 417-06-12372 | WIRE ASS'Y | 10001-. | |
| 8 | 232-06-52410 | SENSOR,OIL TEMP. AND WATER TEMP. | 10001-. | |
| 9 | 417-06-12381 | WIRE ASS'Y | 10001-19999 | |
| 10 | 417-06-11240 | SWITCH,PARKING | 10001-19999 | |
| 11 | 01010-30816 | BOLT | 10001-19999 | |
| 12 | 01643-30823 | WASHER | 10001-19999 | |
| 13 | 01580-00806 | NUT | 10001-19999 | |
| 14 | 417-06-12391 | WIRE ASS'Y | 10001-19999 | |
| 15 | 421-06-11930 | RELAY,BATTERY | 10001-19999 | |
| 16 | 01010-30830 | BOLT | 10001-19999 | |
| 17 | 01643-30823 | WASHER | 10001-19999 | |
| 18 | 416-06-12110 | WIRE | 10001-19999 | |
| 19 | 417-06-12410 | WIRE | 10001-19999 | |
| 20 | 417-06-12420 | WIRE | 10001-19999 | |
| 21 | 01010-31016 | BOLT | 10001-19999 | |
| 22 | 01643-31032 | WASHER | 10001-19999 | |
| 23 | 08038-00519 | CAP | 10001-19999 | |
| 24 | 08038-02027 | CAP | 10001-19999 | |
| 25 | 08038-06031 | CAP | 10001-19999 | |
| 26 | 01010-31016 | BOLT | 10001-19999 | |
| 27 | 01643-31032 | WASHER | 10001-19999 | |
| 28 | 08037-01610 | GROMMET | 10001-19999 | |
| 29 | 08037-03614 | GROMMET | 10001-19999 | |
| 30 | 08036-01414 | CLIP | 10001-19999 | |
| 31 | 01010-30816 | BOLT | 10001-19999 | |
| 32 | 01643-30823 | WASHER | 10001-19999 | |
| 33 | 08036-01814 | CLIP | 10001-19999 | |
| 34 | 01010-31220 | BOLT | 10001-19999 | |
| 35 | 01643-31232 | WASHER | 10001-19999 | |
| 36 | 08036-02514 | CLIP | 10001-19999 | |
| 37 | 01010-31020 | BOLT | 10001-19999 | |
| 38 | 01643-31032 | WASHER | 10001-19999 | |
| 39 | 421-06-12910 | CLIP | 10001-19999 | |
| 40 | 01220-40612 | SCREW | 10001-19999 | |
| 41 | 01642-20608 | WASHER | 10001-19999 | |
| 42 | 01580-10605 | NUT | 10001-19999 | |
| 43 | 08036-10810 | CLIP | 10001-19999 | |
| 44 | 423-06-12640 | CLIP | 10001-19999 | |
| 45 | 01010-31020 | BOLT | 10001-19999 | |
| 46 | 01643-31032 | WASHER | 10001-19999 | |
| 47 | 08036-21814 | CLIP | 10001-19999 | |
| 48 | 01010-31020 | BOLT | 10001-19999 | |
| 49 | 01643-31032 | WASHER | 10001-19999 | |
| 50 | 08034-00519 | BAND | 10001-19999 | |
| 51 | 287-06-16410 | RELAY | ..-19999 | |
| 52 | 08036-10810 | CLIP | 10001-19999 | |
| 53 | 01010-31016 | BOLT | 10001-19999 | |
| 54 | 01643-31032 | WASHER | 10001-19999 | |
| 55 | 08037-02512 | GROMMET | 10001-19999 |
