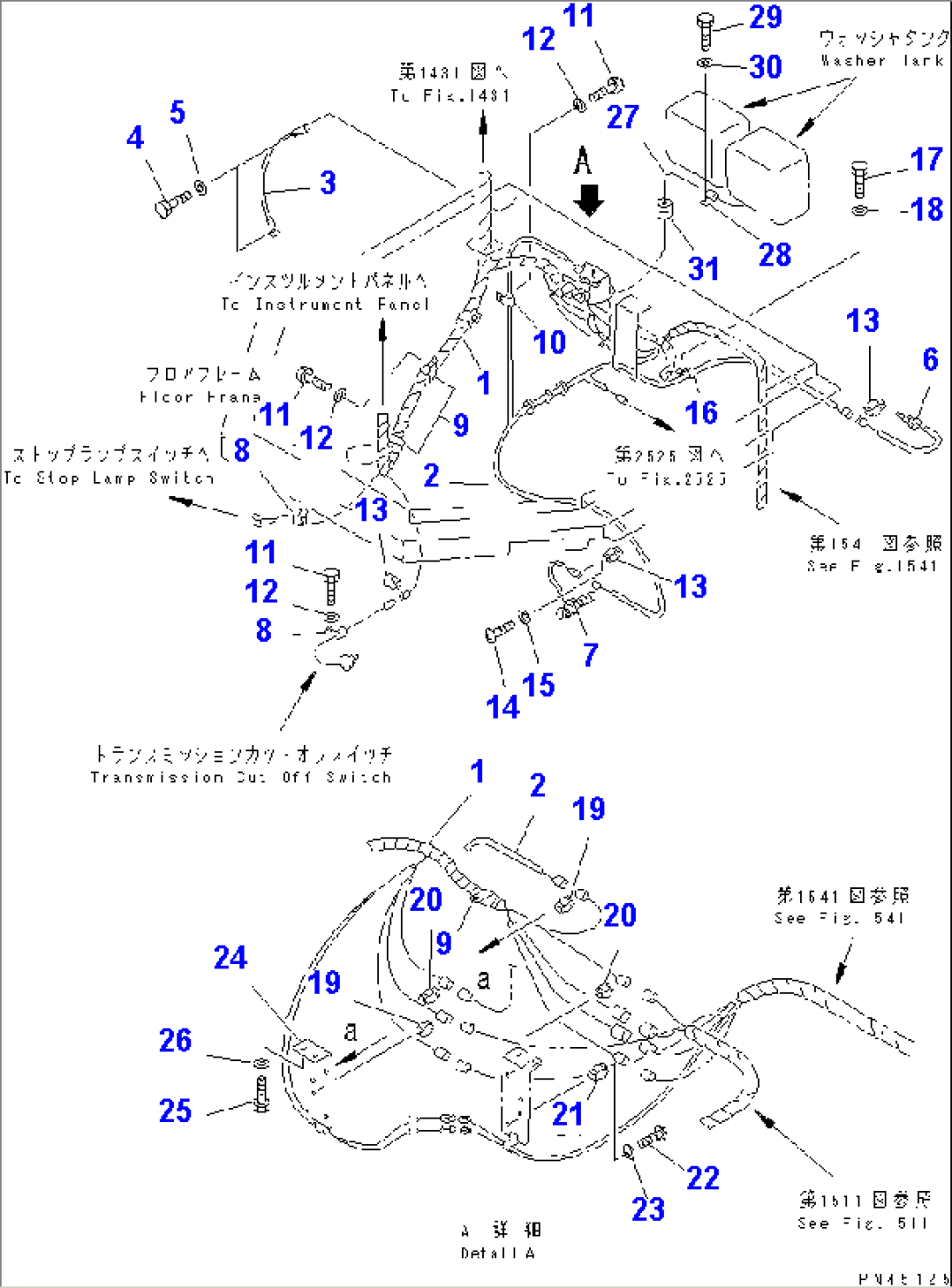

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (428-06-12117) | WIRING HARNESS | ..- | |
| 1 | (\0\428-06-12116) | WIRING HARNESS | .-.. | |
| 1 | (\0\428-06-12115) | WIRING HARNESS | 10102-. | |
| 1 | (\0\428-06-12114) | WIRING HARNESS | 10097-10101 | |
| 1 | (428-06-12113) | WIRING HARNESS | 10092-10096 | |
| 1 | (428-06-12112) | WIRING HARNESS | 10001-10091 | |
| 1 | 421-06-11960 | RESISTOR | 10001- | |
| 1 | 08020-10000 | DIODE | 10001- | |
| 1 | 08034-00519 | BAND | 10001- | |
| 2 | 428-06-12132 | WIRE ASS'Y | 10076- | |
| 2 | \0\428-06-12131 | WIRE ASS'Y | 10001-10075 | |
| 3 | 08028-12045 | CABLE | 10001- | |
| 4 | 01010-81020 | BOLT | 10001- | |
| 5 | 01643-31032 | WASHER | 10001- | |
| 6 | 7861-91-3330 | SENSOR,OIL TEMPERATURE | 10001- | |
| 7 | 7819-11-2310 | SENSOR,ENGINE SPEED | 10001- | |
| 8 | 362-43-18780 | CLIP | 10001- | |
| 9 | 08036-03014 | CLIP | 10001- | |
| 10 | 08036-01414 | CLIP | 10001- | |
| 11 | 01010-81020 | BOLT | 10001- | |
| 12 | 01643-31032 | WASHER | 10001- | |
| 13 | 08052-01711 | CLIP | 10001- | |
| 14 | 01220-40608 | SCREW | 10001- | |
| 15 | 01641-20608 | WASHER | 10001- | |
| 16 | 08036-01014 | CLIP | 10001- | |
| 17 | 01010-81020 | BOLT | 10001- | |
| 18 | 01643-31032 | WASHER | 10001- | |
| 19 | 08052-02711 | CLIP | 10001- | |
| 20 | 08052-01911 | CLIP | 10001- | |
| 21 | 08052-02411 | CLIP | 10001- | |
| 22 | 01220-40608 | SCREW | 10001- | |
| 23 | 01641-20608 | WASHER | 10001- | |
| 24 | 421-06-12641 | BRACKET | 10001- | |
| 25 | 01010-81225 | BOLT | 10001- | |
| 26 | 01643-31232 | WASHER | 10001- | |
| 27 | 428-06-12360 | WIRE ASS'Y | 10076- | |
| 27 | 426-06-12232 | WIRE | 10001-10075 | |
| 28 | 08036-01014 | CLIP | 10001- | |
| 29 | 01010-81020 | BOLT | 10001- | |
| 30 | 01643-31032 | WASHER | 10001- | |
| 31 | 08037-03614 | GROMMET | 10001- |
