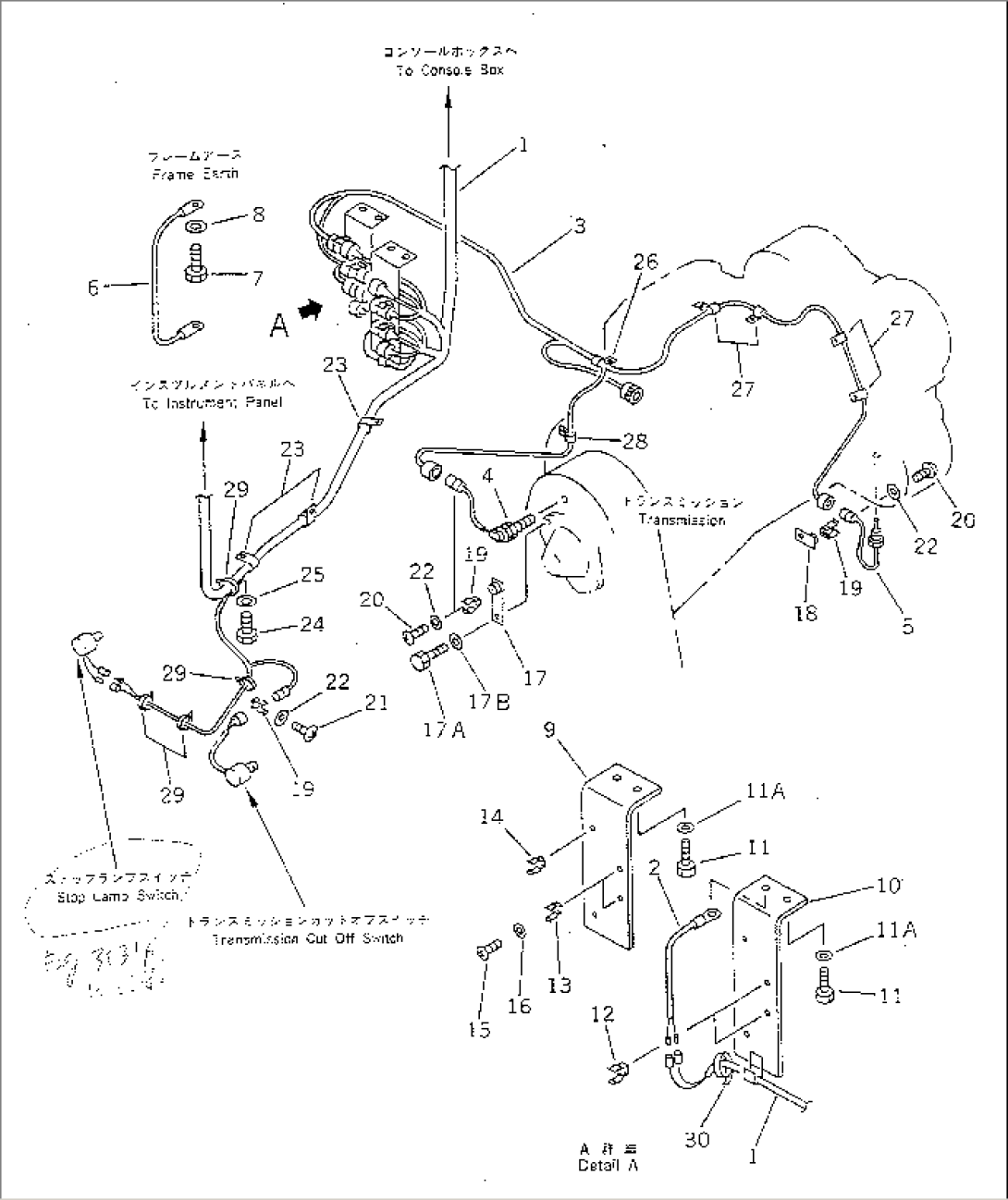

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-12216 | WIRE ASS'Y | 20001- | |
| 1 | 421-06-11970 | DIODE | 20001- | |
| 2 | 424-06-12811 | WIRE ASS'Y | 10001- | |
| 3 | 421-06-12152 | WIRE ASS'Y | 20001- | |
| 3 | 421-06-11970 | DIODE | 20001- | |
| 4 | (7819-11-2310) | SENSOR,SPEED | 10001- | |
| 5 | (7861-91-3330) | SENSOR,OIL TEMPERATURE | 20107- | |
| 5 | (7861-91-3310) | SENSOR,OIL TEMPERATURE | 10001-20106 | |
| 6 | 421-06-12750 | WIRE | 10001- | |
| 7 | 01010-51016 | BOLT | 10001- | |
| 8 | 01643-31032 | WASHER | 10001- | |
| 9 | 421-06-12660 | BRACKET | 10001- | |
| 10 | 421-06-12641 | BRACKET | 10001- | |
| 11 | 01010-51225 | BOLT | 20001- | |
| 11A | 01643-31232 | WASHER | 20001- | |
| 12 | 08052-02711 | CLIP | 20001- | |
| 13 | 421-06-12910 | CLIP | 20001- | |
| 14 | 08052-02411 | CLIP | 20001- | |
| 15 | 01220-40608 | SCREW | 10001- | |
| 16 | 01641-20608 | WASHER | 10001- | |
| 17 | 424-06-12630 | BRACKET | 10001- | |
| 17A | 01010-51240 | BOLT | 20001- | |
| 17B | 01643-31232 | WASHER | 20001- | |
| 18 | 421-06-12670 | BRACKET | 10001- | |
| 19 | 421-06-12910 | CLIP | 10001- | |
| 20 | 01220-40608 | SCREW | 10001- | |
| 21 | 01220-40612 | SCREW | 10001- | |
| 22 | 01641-20608 | WASHER | 10001- | |
| 23 | 08036-03014 | CLIP | 20001- | |
| 24 | 01010-51016 | BOLT | 20001- | |
| 25 | 01643-31032 | WASHER | 20001- | |
| 26 | 08036-11214 | CLIP | 10001- | |
| 27 | 08036-10814 | CLIP | 10001- | |
| 28 | 424-06-12720 | CLIP | 10001- | |
| 29 | 08034-00414 | BAND | 20001- | |
| 30 | 08034-00823 | BAND | 20001- |
