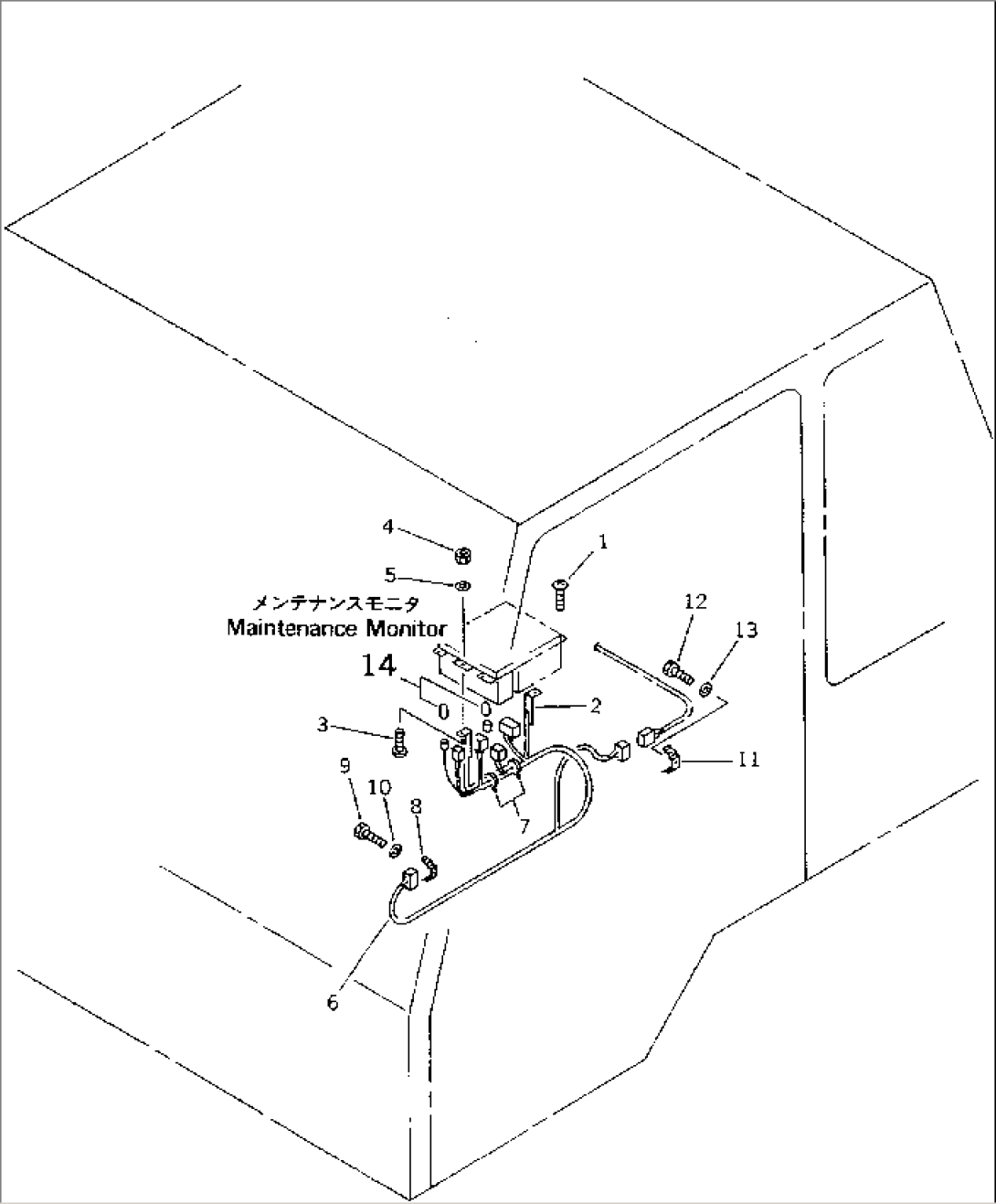

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 01023-20612 | SCREW | 1001- | |
| 2 | 569-54-63931 | STAY | 1001- | |
| 3 | 01023-20612 | SCREW | 1001- | |
| 4 | 01580-10605 | NUT | 1001- | |
| 5 | 01641-20608 | WASHER | 1001- | |
| 6 | 561-86-62181 | WIRING HARNESS | 1001- | |
| 7 | 08034-10414 | BAND | 1001- | |
| 8 | 08053-16212 | CLIP | 1001- | |
| 9 | 01010-51016 | BOLT | 1001- | |
| 10 | 01643-31032 | WASHER | 1001- | |
| 11 | 08053-15012 | CLIP | 1001- | |
| 12 | 01010-51016 | BOLT | 1001- | |
| 13 | 01643-31032 | WASHER | 1001- | |
| 14 | 08102-12403 | BULB, 3W | 1001- |
