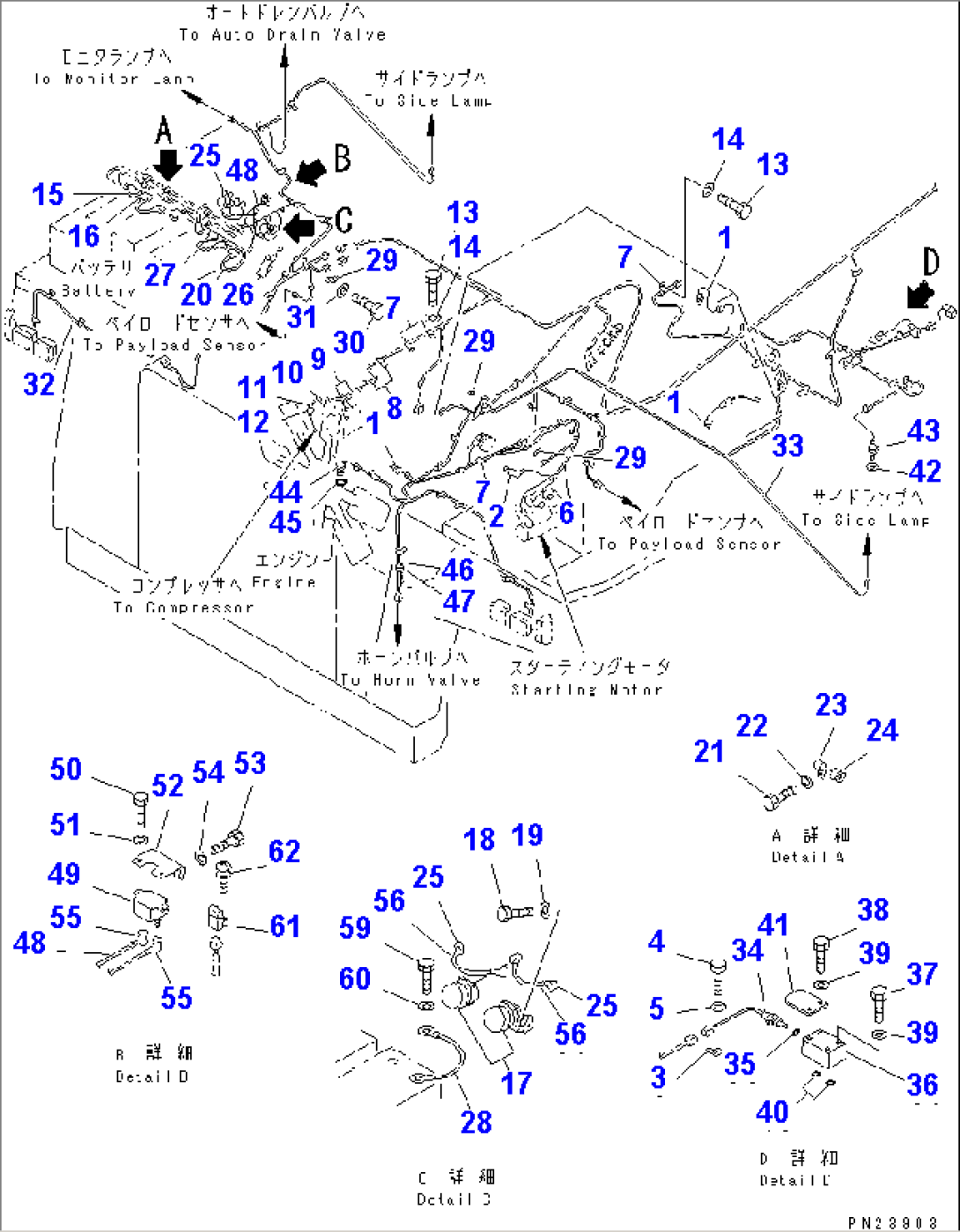

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-92-3320 | SENSOR | 1001- | |
| 2 | 08073-00505 | SWITCH | 1001- | |
| 3 | 08053-01512 | CLIP | 1002- | |
| 4 | 01010-51016 | BOLT | 1002- | |
| 5 | 01643-31032 | WASHER | 1002- | |
| 6 | 561-06-61421 | WIRING HARNESS | 1001- | |
| 7 | 08036-01014 | CLIP | 1001- | |
| 8 | 08036-01414 | CLIP | 1001- | |
| 9 | 08036-01814 | CLIP | 1001- | |
| 10 | 08036-00814 | CLIP | 1001- | |
| 11 | 421-06-11970 | DIODE | 1001- | |
| 12 | 08034-00414 | BAND | 1001- | |
| 13 | 01010-51016 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 287-09-11320 | BOOT | 1001- | |
| 16 | 287-09-11330 | BOOT | 1001- | |
| 17 | 08088-40000 | RELAY,BATTERY | 1001- | |
| 18 | 01010-50816 | BOLT | 1001- | |
| 19 | 01643-30823 | WASHER | 1001- | |
| 20 | 08028-45100 | CABLE, GROUND | 1001- | |
| 21 | 01010-51016 | BOLT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 08036-02514 | CLIP | 1001- | |
| 24 | 566-06-41290 | INSULATOR | 1001- | |
| 25 | 08038-00035 | CAP | 1001- | |
| 26 | 08037-02512 | GROMMET | 1001- | |
| 27 | 08028-45020 | CABLE, GROUND | 1001- | |
| 28 | 08028-45080 | CABLE, GROUND | 1001- | |
| 29 | 08053-00912 | CLIP | 1001- | |
| 30 | 01010-51016 | BOLT | 1001- | |
| 31 | 01643-31032 | WASHER | 1001- | |
| 32 | 561-06-63532 | WIRING HARNESS | 1001- | |
| 33 | 561-06-63521 | WIRING HARNESS | 1001- | |
| 34 | 7861-92-1910 | SENSOR,FILTER | 1001- | |
| 35 | 07002-21623 | O-RING | 1001- | |
| 36 | 569-06-62780 | BLOCK | 1001- | |
| 37 | 01010-50645 | BOLT | 1001- | |
| 38 | 01010-50650 | BOLT | 1001- | |
| 39 | 01643-30623 | WASHER | 1001- | |
| 40 | 07000-32014 | O-RING | 1001- | |
| 41 | 561-06-63570 | COVER | 1001- | |
| 42 | 07005-01612 | SEAL, WASHER | 1001- | |
| 43 | 7861-92-1930 | SENSOR,FILTER | 1001- | |
| 44 | 7861-92-4520 | SENSOR,WATER LEVEL | 1001- | |
| 45 | 07002-23634 | O-RING | 1001- | |
| 46 | 421-06-11970 | DIODE | 1001- | |
| 47 | 08034-00414 | BAND | 1001- | |
| 48 | 561-06-61470 | CABLE | 1001- | |
| 49 | 421-06-11440 | BREAKER,CIRCUIT | 1001- | |
| 50 | 01010-50616 | BOLT | 1001- | |
| 51 | 01643-30623 | WASHER | 1001- | |
| 52 | 561-06-61850 | BRACKET | 1001- | |
| 53 | 01010-51020 | BOLT | 1001- | |
| 54 | 01643-31032 | WASHER | 1001- | |
| 55 | 08038-02027 | CAP | 1001- | |
| 56 | 08028-45011 | CABLE, GROUND | 1001- | |
| 59 | 01010-51020 | BOLT | 1001- | |
| 60 | 01643-31032 | WASHER | 1001- | |
| 61 | 566-06-6A220 | FUSE UNIT | 1001- | |
| 61 | 42A-06-16140 | FUSE, 30A | 1001- | |
| 62 | 01023-20616 | SCREW | 1001- |
