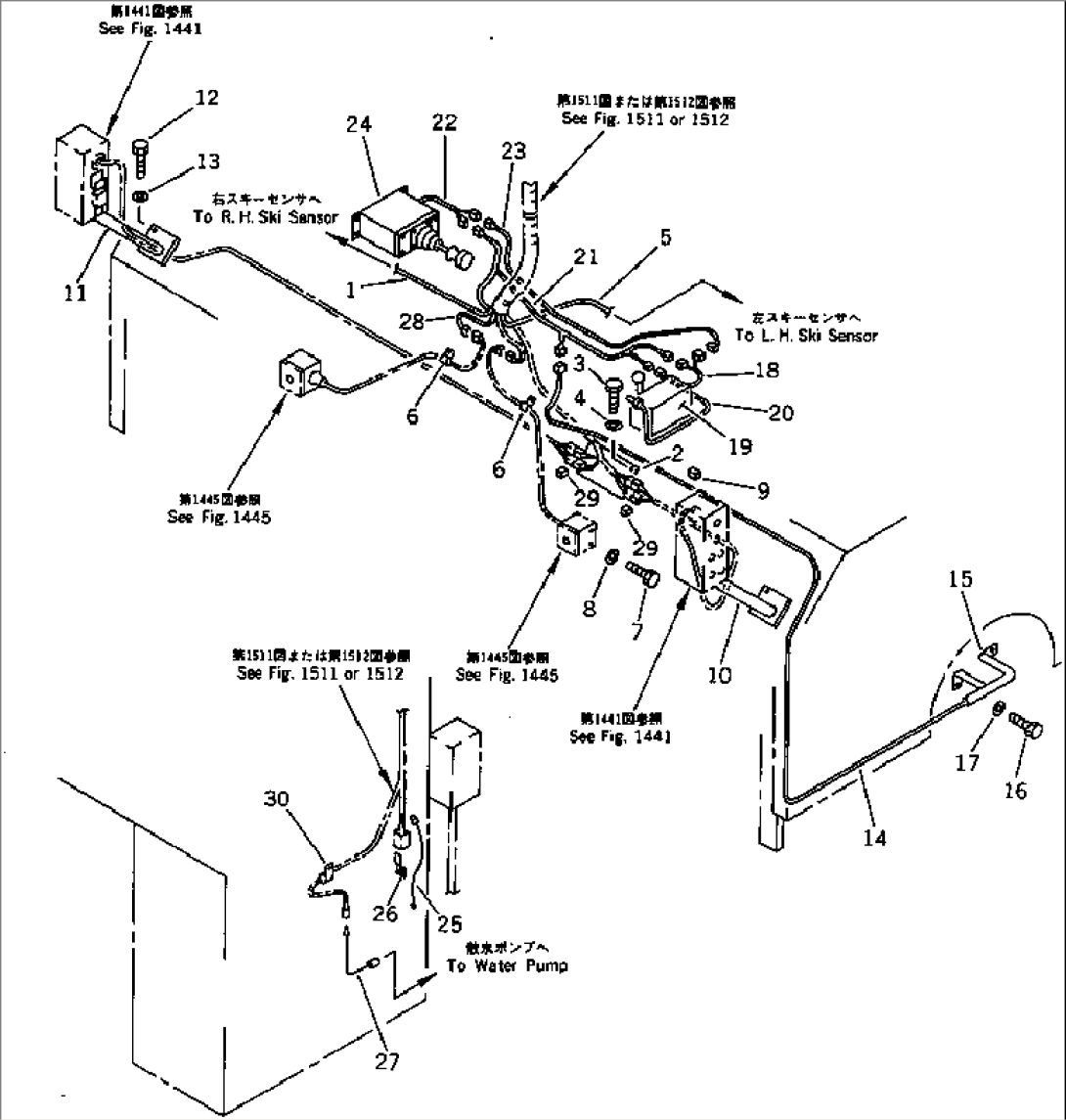

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 262-96-52121 | HARNESS | 10001-@ | |
| 2 | 262-06-54390 | BRACKET | 10001-@ | |
| 3 | 01010-50812 | BOLT | 10001-@ | |
| 4 | 01643-30823 | WASHER | 10001-@ | |
| 5 | 262-96-52111 | HARNESS | 10001-@ | |
| 6 | 08036-01214 | CLIP | 10001-@ | |
| 7 | 01010-50816 | BOLT | 10001-@ | |
| 8 | 01643-30823 | WASHER | 10001-@ | |
| 9 | 262-06-59180 | CONNECTOR | 10001-@ | |
| 10 | 262-06-59422 | BRACKET,L.H. | 10009-@ | |
| 262-06-59421 | BRACKET,L.H. | 10001-10008 | ||
| 11 | 262-06-59412 | BRACKET,R.H. | 10009-@ | |
| 262-06-59411 | BRACKET,R.H. | 10001-10008 | ||
| 12 | 01010-51025 | BOLT | 10001-@ | |
| 13 | 01643-31032 | WASHER | 10001-@ | |
| 14 | 262-06-51430 | SENSOR,ROTOR REVOLUTION | 10001-10025 | |
| 15 | 262-06-54761 | PROTECTOR | 10001-10025 | |
| 16 | 01010-51020 | BOLT | 10001-10025 | |
| 17 | 01643-31032 | WASHER | 10001-10025 | |
| 18 | 262-06-51280 | HARNESS | 10001-@ | |
| 19 | 262-06-53240 | CONTROLLER,TRAVEL | 10001-@ | |
| 20 | 262-06-51560 | SENSOR,BACK SWITCH | 10001-@ | |
| 21 | (262-06-51580) | HARNESS,(SEE FIG.1504 OR 1505) | 10001-@ | |
| 22 | 262-06-51290 | HARNESS | 10001-10025 | |
| 23 | 262-06-51570 | HARNESS | 10001-@ | |
| 24 | 262-43-57730 | CONTROLLER,ROTOR REVOLUTION | 10001-10025 | |
| 25 | 262-06-59630 | HARNESS | 10001-@ | |
| 26 | 08053-01512 | CLIP | 10001-@ | |
| 27 | 262-06-59830 | CABLE | 10001-@ | |
| 28 | (262-06-59512) | HARNESS,(SEE FIG.1511 OR 1512) | 10001-@ | |
| 29 | 262-06-59890 | CONNECTOR | 10001-@ | |
| 30 | 08036-11014 | CLIP | 10001-@ |
