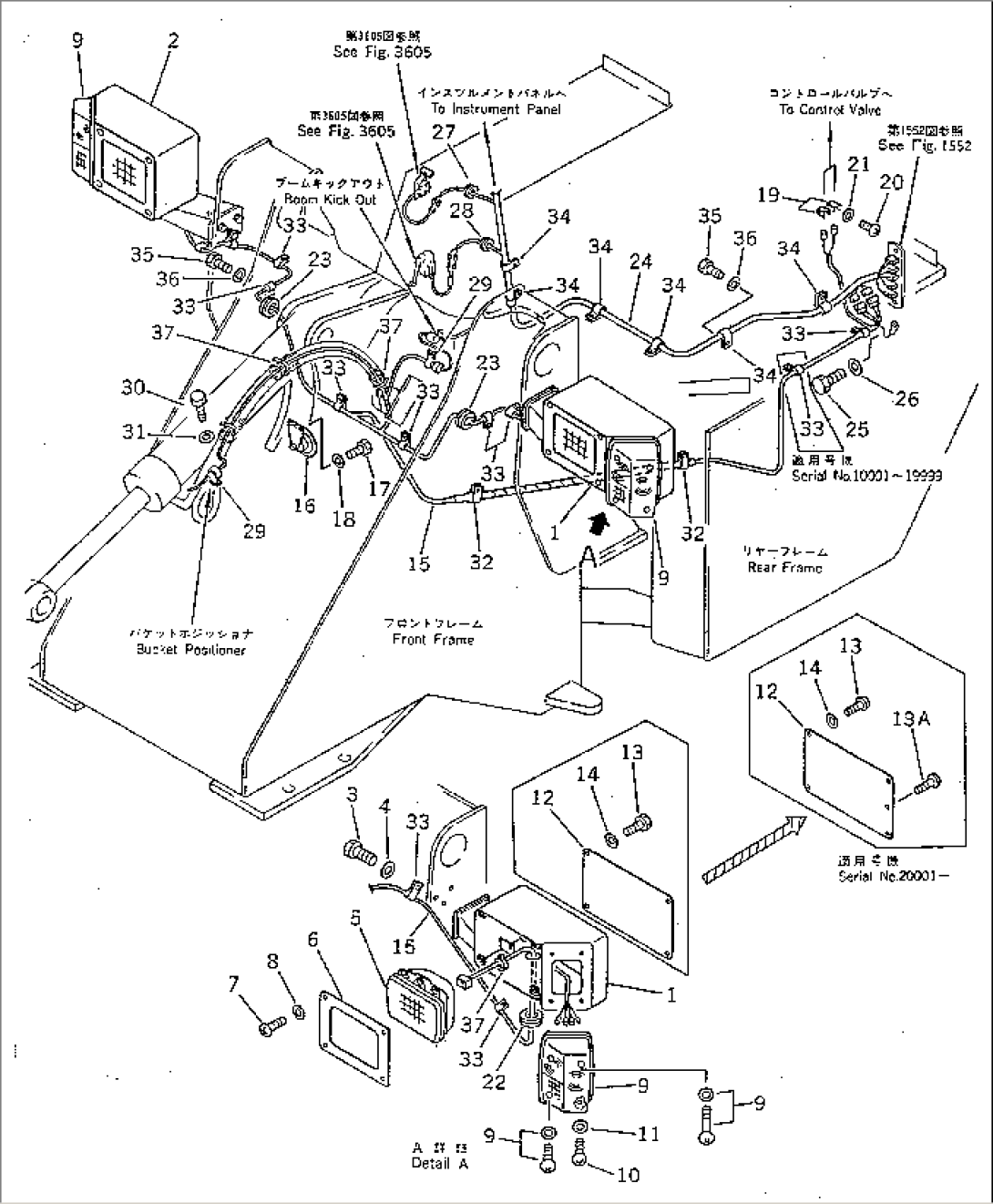

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-13412 | COVER,L.H. | 20001- | |
| 1 | 417-06-13311 | COVER,L.H. | 10001-19999 | |
| 2 | 417-06-13422 | COVER,R.H. | 20001- | |
| 2 | 417-06-13321 | COVER,R.H. | 10001-19999 | |
| 3 | 01010-31235 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | 421-06-13102 | LAMP ASS'Y | 10001- | |
| 5 | 421-06-13110 | BULB, 85/65W | 10001- | |
| 5 | 421-06-13120 | CUSHION | 10001- | |
| 6 | 417-06-13361 | COVER | 20001- | |
| 6 | \0\417-06-13360 | COVER | 10001-19999 | |
| 7 | 01370-00508 | SCREW | 20001- | |
| 7 | 01220-40612 | SCREW | 10001-19999 | |
| 8 | 01642-20508 | WASHER | 20001- | |
| 8 | 01643-30623 | WASHER | 10001-19999 | |
| 9 | 421-06-13301 | LAMP ASS'Y,L.H. | 10001- | |
| 9 | 421-06-13401 | LAMP ASS'Y,R.H. | 10001- | |
| 9 | 22W-06-12310 | LENS,L.H. | 10001- | |
| 9 | 22W-06-12320 | LENS,R.H. | 10001- | |
| 9 | 421-06-13310 | BULB, 10/4W | 10001- | |
| 9 | 08105-12420 | BULB, 25W | 10001- | |
| 9 | 01220-50450 | SCREW | 10001- | |
| 9 | 01220-50416 | SCREW | 10001- | |
| 9 | 01641-40405 | WASHER | 10001- | |
| 10 | 01220-40516 | SCREW | .- | |
| 10 | \0\01220-40512 | SCREW | 10001-. | |
| 11 | 01601-20513 | WASHER,SPRING | .- | |
| 11 | \0\01641-20508 | WASHER | 10001-. | |
| 12 | 417-06-13333 | COVER | 20001- | |
| 12 | 417-06-13332 | COVER | .-19999 | |
| 12 | \0\417-06-13331 | COVER | 10001-. | |
| 13 | 01370-00508 | SCREW | 10001- | |
| 13 | 01010-50610 | BOLT | 10001-19999 | |
| 13A | 01220-40410 | SCREW | 20001- | |
| 14 | 01642-20508 | WASHER | 20001- | |
| 14 | 01643-30623 | WASHER | 10001-19999 | |
| 15 | 417-06-12218 | WIRE ASS'Y | 20001- | |
| 15 | 417-06-12215 | WIRE ASS'Y | 10391-19999 | |
| 15 | 417-06-12214 | WIRE ASS'Y | 10001-10390 | |
| 16 | 421-06-11710 | HORN | 10001- | |
| 17 | 01010-30812 | BOLT | 10001- | |
| 18 | 01643-20823 | WASHER | 10001- | |
| 19 | 283-06-17130 | CLIP | 10001- | |
| 20 | 01220-40608 | SCREW | 10001- | |
| 21 | 01641-20608 | WASHER | 10001- | |
| 22 | 08037-03614 | GROMMET | 10001- | |
| 23 | 08037-03620 | GROMMET | 10001- | |
| 24 | 417-06-12338 | WIRE ASS'Y | 20001- | |
| 24 | 417-06-12336 | WIRE ASS'Y | 11842-19999 | |
| 24 | 417-06-12333 | WIRE ASS'Y | 10001-11841 | |
| 24 | 421-06-11970 | DIODE | 20001- | |
| 24 | 421-06-11970 | DIODE | 10001-19999 | |
| 25 | 01010-31020 | BOLT | 10001- | |
| 26 | 01643-31032 | WASHER | 10001- | |
| 27 | 417-06-12560 | GROMMET | 10001- | |
| 28 | 08037-01008 | GROMMET | 10001- | |
| 29 | 423-06-12640 | CLIP | 10001- | |
| 30 | 01010-31016 | BOLT | 10001- | |
| 31 | 01641-21016 | WASHER | 10001- | |
| 32 | 08036-02514 | CLIP | 10001- | |
| 33 | 08036-01414 | CLIP | 20001- | |
| 33 | 08036-01414 | CLIP | 10001-19999 | |
| 34 | 424-06-12790 | CLIP | 20001- | |
| 34 | 08036-02514 | CLIP | 10001-19999 | |
| 35 | 01010-31020 | BOLT | 20001- | |
| 36 | 01643-31032 | WASHER | 10001- | |
| 37 | 08034-00519 | BAND | 10001- |
