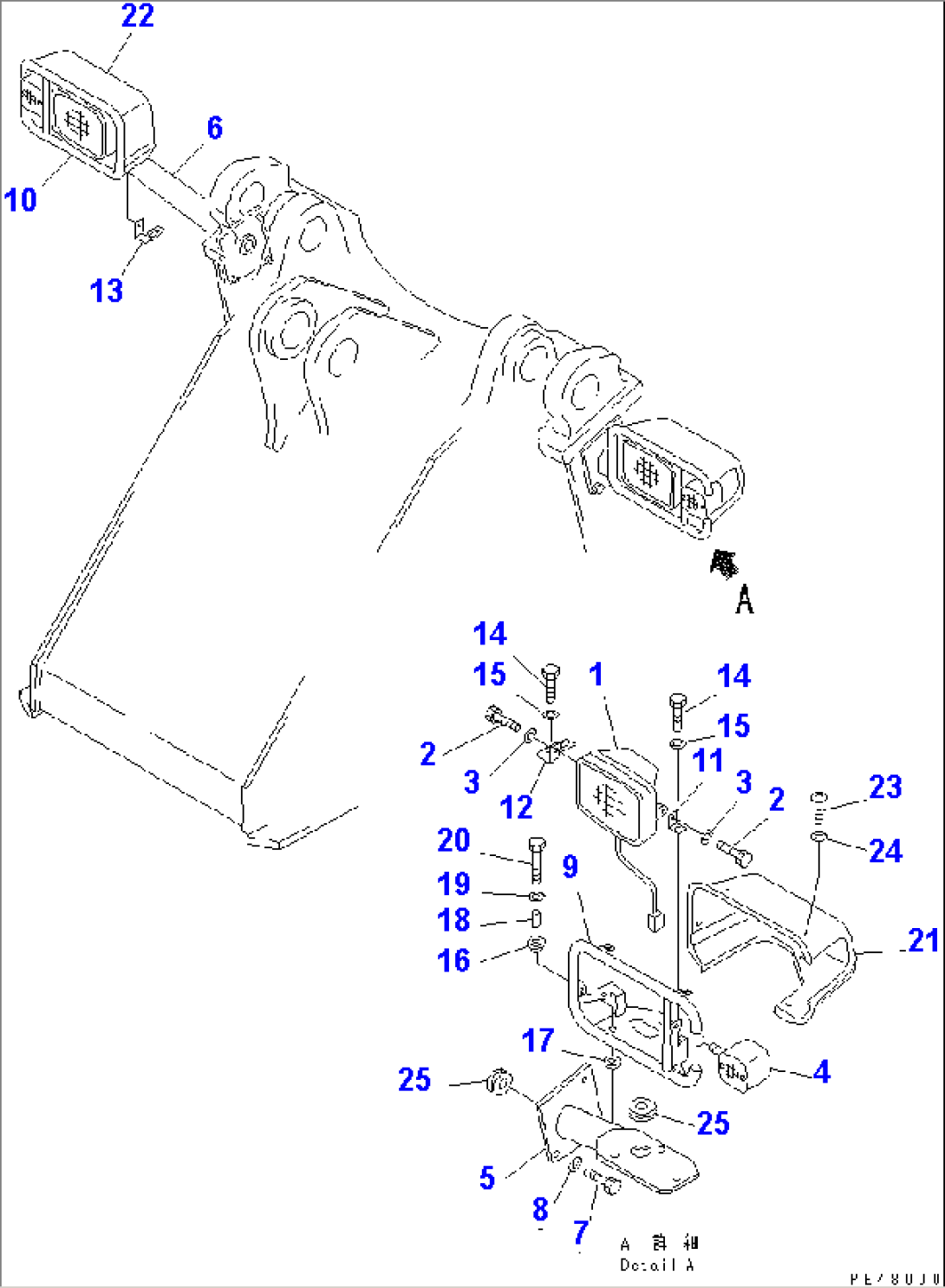

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-23210 | HEAD LAMP ASS'Y | 50001- | |
| 1 | 424-06-23230 | BULB, 75/70W | 50001- | |
| 1 | 424-06-23220 | LENS | 50001- | |
| 2 | 01010-50825 | BOLT | 50001- | |
| 3 | 01602-20825 | WASHER,SPRING | 50001- | |
| 4 | 41G-06-13201 | LAMP ASS'Y,COMBINATION | 50001- | |
| 4 | 41G-06-13210 | LENS,FRONT | 50001- | |
| 4 | 41G-06-13230 | BULB, 5W | 50001- | |
| 4 | 08105-12420 | BULB, 25W | 50001- | |
| 4 | 41G-06-13220 | LENS,REAR | 50001- | |
| 4 | 01220-40425 | SCREW | 50001- | |
| 5 | 421-06-23111 | SUPPORT,L.H. | 50001- | |
| 6 | 421-06-23121 | SUPPORT,R.H. | 50001- | |
| 7 | 01010-51230 | BOLT | 50001- | |
| 8 | 01643-31232 | WASHER | 50001- | |
| 9 | 421-06-23522 | BRACKET,L.H. | 50001- | |
| 10 | 421-06-23532 | BRACKET,R.H. | 50001- | |
| 11 | 421-06-23552 | PLATE | 50001- | |
| 12 | 421-06-23630 | PLATE,L.H. | 50001- | |
| 13 | 421-06-23640 | PLATE,R.H. | 50001- | |
| 14 | 01010-51025 | BOLT | 50001- | |
| 15 | 01643-31032 | WASHER | 50001- | |
| 16 | 419-43-17930 | CUSHION | 50001- | |
| 17 | 415-64-13130 | CUSHION | 50001- | |
| 18 | 417-54-13470 | SPACER | 50001- | |
| 19 | 419-43-17920 | WASHER | 50001- | |
| 20 | 01435-01250 | BOLT | 50001- | |
| 21 | 421-06-23611 | COVER,L.H. | 50001- | |
| 22 | 421-06-23621 | COVER,R.H. | 50001- | |
| 23 | 01220-40616 | SCREW | 50001- | |
| 24 | 01643-30623 | WASHER | 50001- | |
| 25 | 08037-03614 | GROMMET | 50001- |
