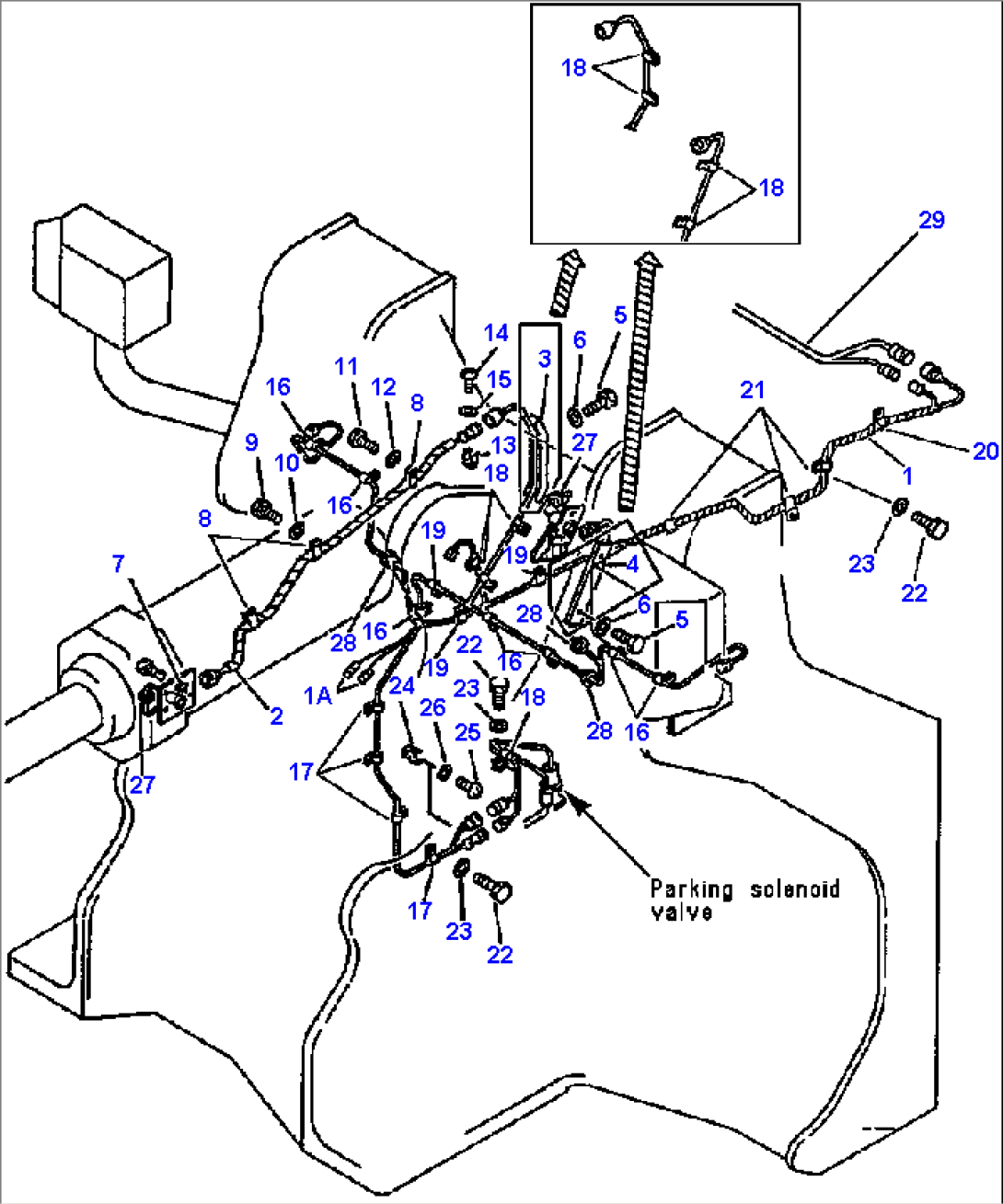

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-12314 | HARNESS, FRONT LINE | ||
| 1A | 421-06-11970 | DIODE | ||
| 2 | 426-06-12161 | HARNESS | ||
| 3 | 426-06-12810 | COVER | ||
| 4 | 426-06-12820 | COVER | ||
| 5 | 01010-51020 | BOLT | ||
| 6 | 01643-31032 | WASHER | ||
| 7 | 423-06-12640 | CLIP | ||
| 8 | 08035-01514 | CLIP | ||
| 9 | 01010-51220 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 01010-51020 | BOLT | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | 08052-01711 | CLIP | ||
| 14 | 01220-40608 | SCREW | ||
| 15 | 01641-20608 | WASHER | ||
| 16 | 424-06-12720 | CLIP | ||
| 17 | 424-06-12710 | CLIP | ||
| 18 | 419-09-11160 | CLIP | ||
| 19 | 426-35-11250 | CLIP | ||
| 20 | 08035-01414 | CLIP | ||
| 21 | 08035-03014 | CLIP | ||
| 22 | 01010-51020 | BOLT | ||
| 23 | 01643-31032 | WASHER | ||
| 24 | 08052-01711 | CLIP | ||
| 25 | 01220-40608 | SCREW | ||
| 26 | 01641-20608 | WASHER | ||
| 27 | 426-09-11220 | GROMMET | ||
| 28 | 426-09-11210 | GROMMET | ||
| 29 | HARNESS, FLOOR LINE (SEE PG 01-058) |
