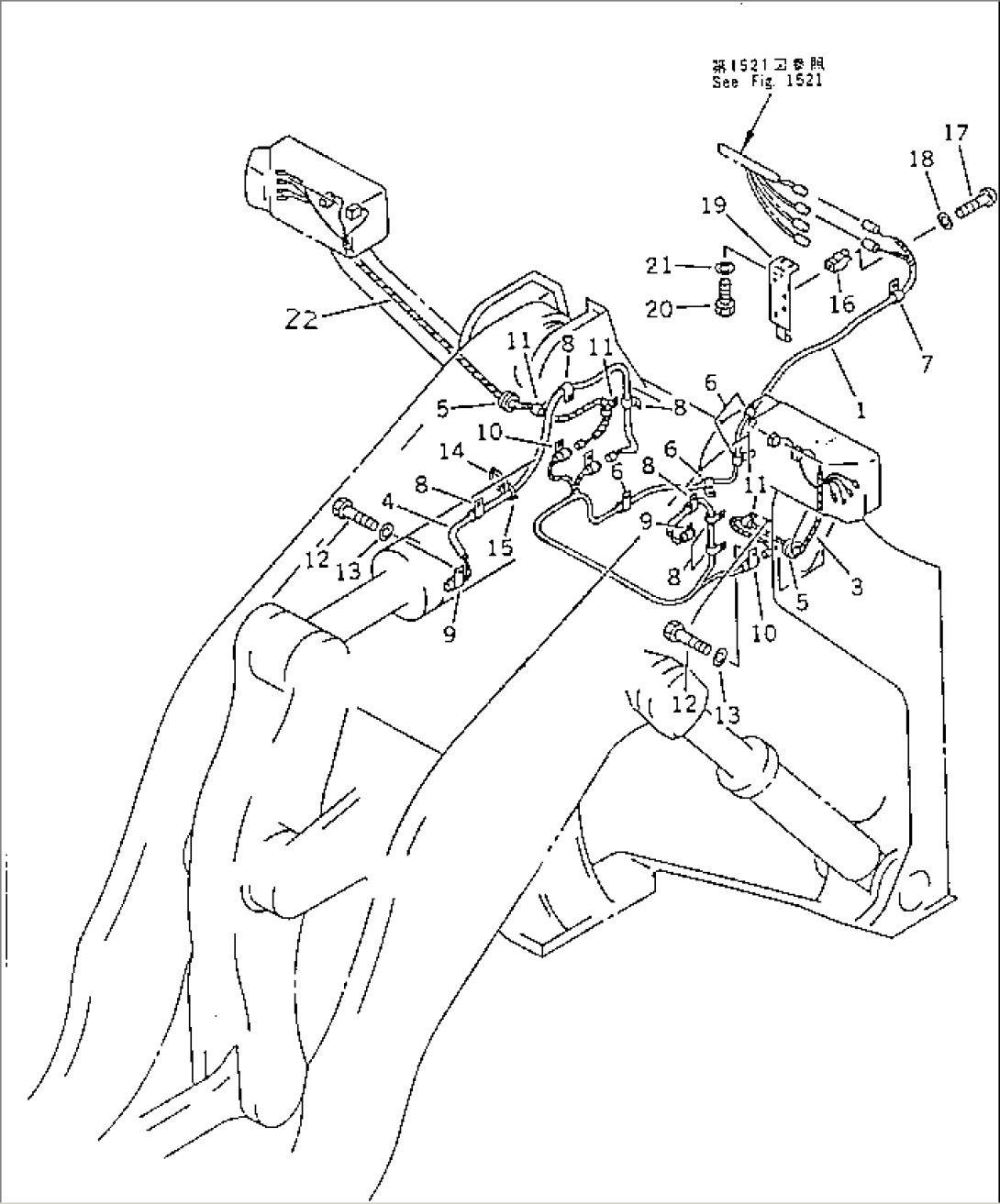

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-12730 | WIRE ASS'Y | 10001- | |
| 1 | 421-09-11970 | DIODE | 10001- | |
| 1 | 08034-00519 | BAND | 10001- | |
| 3 | 428-06-12710 | WIRE ASS'Y,L.H. | 10001- | |
| 4 | 428-06-12740 | WIRE ASS'Y | 10001- | |
| 5 | 421-06-12651 | GROMMET | 10001- | |
| 6 | 08035-03010 | CLIP | 10001- | |
| 7 | 08035-03008 | CLIP | 10001- | |
| 8 | 04434-51010 | CLIP | 10001- | |
| 9 | 08052-11711 | CLIP | 10001- | |
| 10 | 08052-12411 | CLIP | 10001- | |
| 11 | 04434-51410 | CLIP | 10001- | |
| 12 | 01010-51020 | BOLT | 10001- | |
| 13 | 01643-31032 | WASHER | 10001- | |
| 14 | 08034-00834 | BAND | 10001- | |
| 15 | 08034-20519 | BAND | 10001- | |
| 16 | 08052-02711 | CLIP | 10001- | |
| 17 | 01220-40608 | SCREW | 10001- | |
| 18 | 01641-20608 | WASHER | 10001- | |
| 19 | 421-06-12641 | BRACKET | 10001- | |
| 20 | 01010-51225 | BOLT | 10001- | |
| 21 | 01643-31232 | WASHER | 10001- | |
| 22 | 428-06-12720 | CLIP | 10001- |
