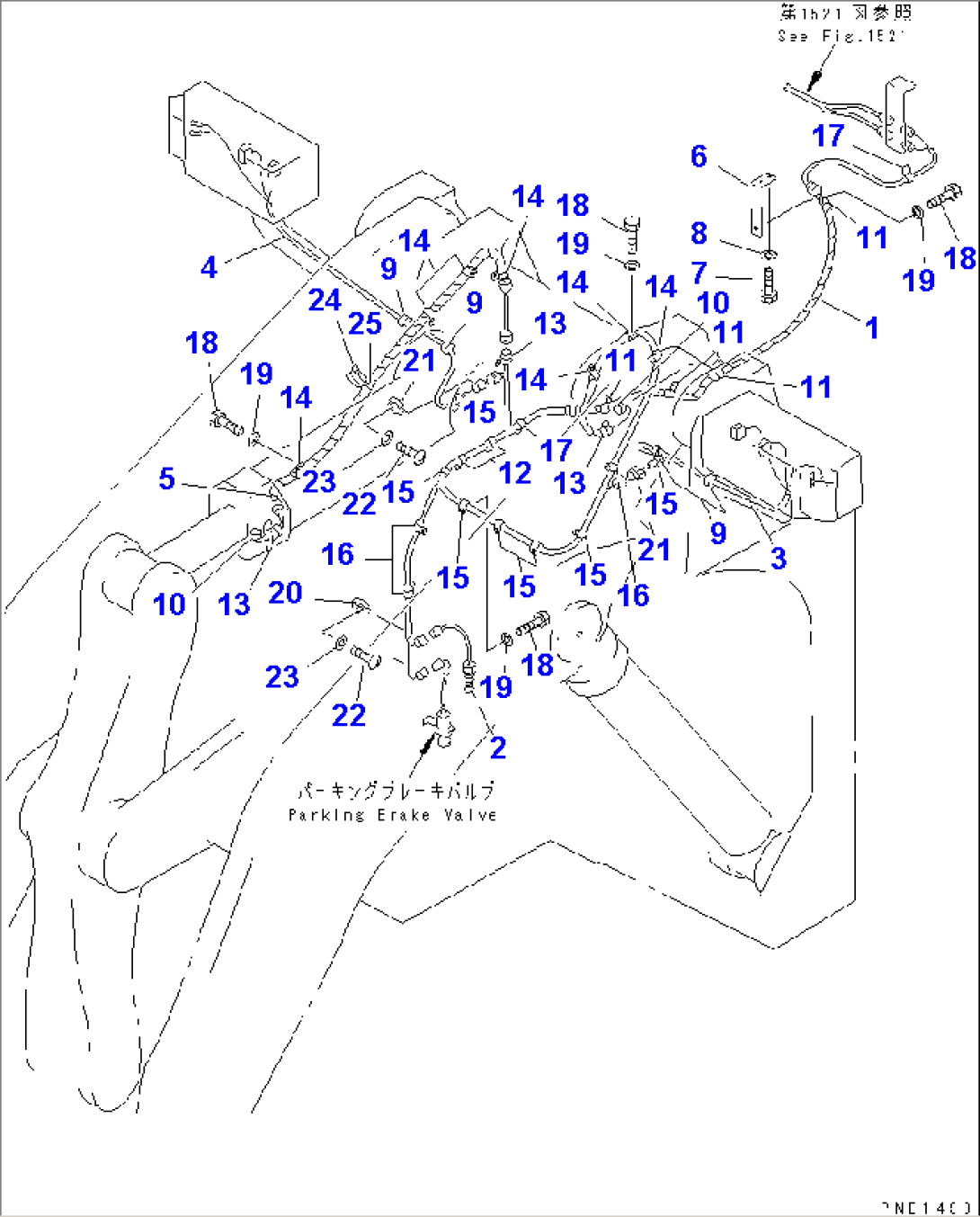

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-12194 | WIRE ASS'Y | 10001- | |
| 421-09-11970 | DIODE | 10001- | ||
| 08034-20519 | BAND | 10001- | ||
| 2 | 7861-99-1500 | SENSOR,PARKING BRAKE | 10001- | |
| 3 | 427-06-12811 | WIRE ASS'Y | 10001- | |
| 4 | 427-06-12870 | WIRE ASS'Y | 10001- | |
| 5 | 427-06-12213 | WIRE ASS'Y | 10001- | |
| 6 | 427-06-12440 | BRACKET | 10001- | |
| 7 | 01010-81225 | BOLT | 10001- | |
| 8 | 01643-31232 | WASHER | 10001- | |
| 9 | 421-06-12651 | GROMMET | 10001- | |
| 10 | 426-09-11220 | GROMMET | 10001- | |
| 11 | 08035-03014 | CLIP | 10001- | |
| 12 | 426-35-11250 | CLIP | 10001- | |
| 13 | 423-06-12640 | CLIP | 10001- | |
| 14 | 08035-01514 | CLIP | 10001- | |
| 15 | 424-06-12720 | CLIP | 10001- | |
| 16 | 424-06-12710 | CLIP | 10001- | |
| 17 | 08036-01414 | CLIP | 10001- | |
| 18 | 01010-81020 | BOLT | 10001- | |
| 19 | 01643-31032 | WASHER | 10001- | |
| 20 | 08052-01711 | CLIP | 10001- | |
| 21 | 08052-02411 | CLIP | 10001- | |
| 22 | 01220-40608 | SCREW | 10001- | |
| 23 | 01641-20608 | WASHER | 10001- | |
| 24 | 08034-00834 | BAND | 10001- | |
| 25 | 08034-00414 | BAND | 10001- |
