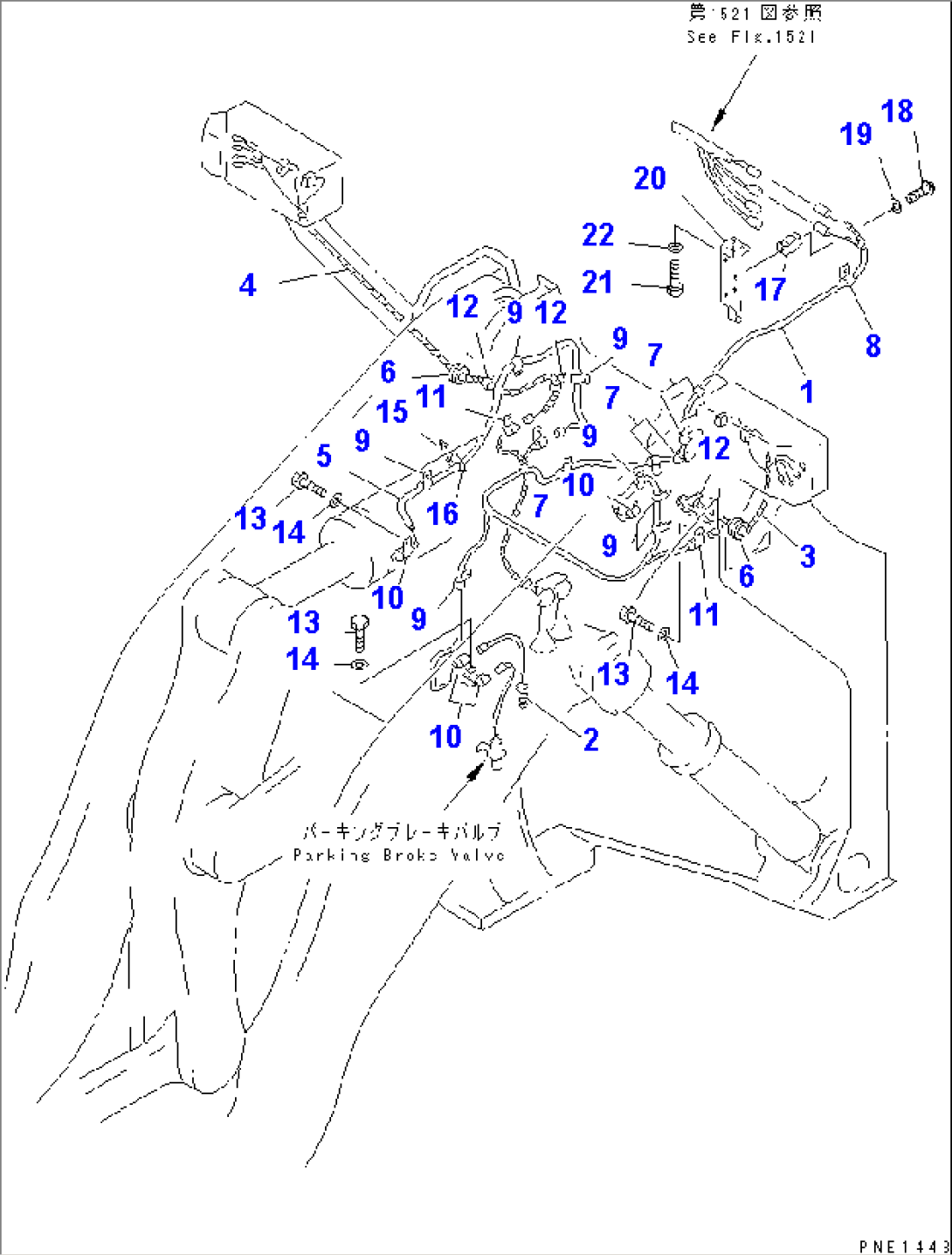

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-12184 | WIRE ASS'Y | 10108- | |
| 1 | \0\428-06-12183 | WIRE ASS'Y | 10076-10107 | |
| 1 | \0\428-06-12182 | WIRE ASS'Y | 10001-10075 | |
| 1 | 08020-10000 | DIODE | 10001- | |
| 1 | 08034-00519 | BAND | 10001- | |
| 2 | (7861-99-1500) | SENSOR,PARKING BRAKE | 10001- | |
| 3 | 428-06-12252 | WIRE ASS'Y,L.H. | 10076- | |
| 3 | 428-06-12251 | WIRE ASS'Y,L.H. | 10001-10075 | |
| 4 | 428-06-12280 | WIRE ASS'Y,R.H. | 10076- | |
| 4 | 428-06-12251 | WIRE ASS'Y,R.H. | 10001-10075 | |
| 5 | 428-06-12212 | WIRE ASS'Y | 10102- | |
| 5 | \0\428-06-12211 | WIRE ASS'Y | 10076-10101 | |
| 5 | 428-06-12210 | WIRE ASS'Y | 10001-10075 | |
| 6 | 421-06-12651 | GROMMET | 10001- | |
| 7 | 08035-03010 | CLIP | 10001- | |
| 8 | 08035-03008 | CLIP | 10001- | |
| 9 | 08036-01014 | CLIP | 10001- | |
| 10 | 08052-11711 | CLIP | 10001- | |
| 11 | 08052-12411 | CLIP | 10001- | |
| 12 | 08036-01414 | CLIP | 10001- | |
| 13 | 01010-51020 | BOLT | 10001- | |
| 14 | 01643-31032 | WASHER | 10001- | |
| 15 | 08034-00834 | BAND | 10001- | |
| 16 | 08034-00414 | BAND | 10001- | |
| 17 | 08052-02711 | CLIP | 10001- | |
| 18 | 01220-40608 | SCREW | 10001- | |
| 19 | 01641-20608 | WASHER | 10001- | |
| 20 | 421-06-12641 | BRACKET | 10001- | |
| 21 | 01010-51225 | BOLT | 10001- | |
| 22 | 01643-31232 | WASHER | 10001- |
