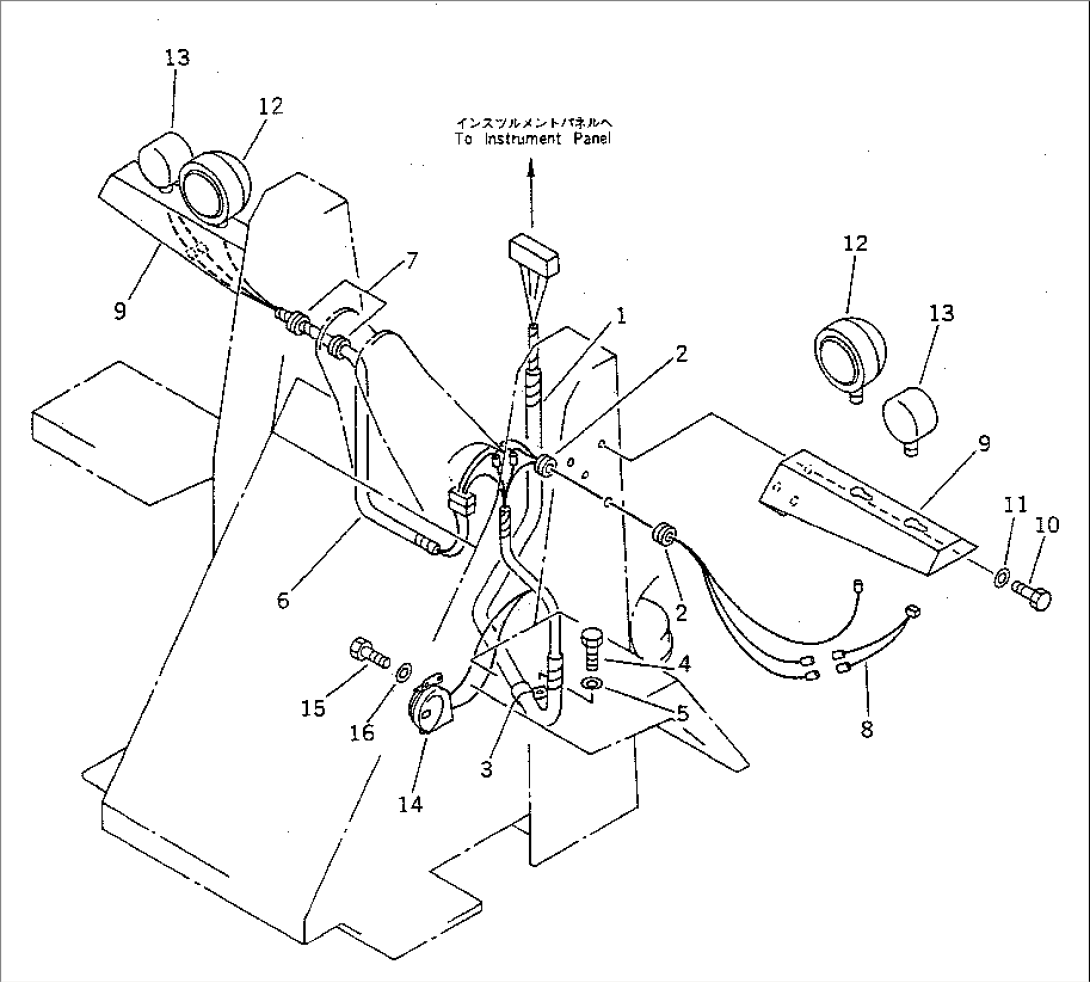

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 361-884-1120 | WIRE ASS'Y | 1001- | |
| 2 | 112-860-1360 | GROMMET | 1001- | |
| 3 | 08035-02510 | CLIP | 1001- | |
| 4 | 01010-51020 | BOLT | 1001- | |
| 5 | 01643-31032 | WASHER | 1001- | |
| 6 | 361-884-1130 | WIRE ASS'Y | 1001- | |
| 7 | 112-860-1360 | GROMMET | 1001- | |
| 8 | 361-884-1140 | WIRE | 1001- | |
| 9 | 361-06-11311 | BRACKET | 1001- | |
| 9 | 361-06-11310 | BRACKET | 1001- | |
| 10 | 01010-51025 | BOLT | 1001- | |
| 11 | 01643-31032 | WASHER | 1001- | |
| 12 | 361-06-14110 | LAMP ASS'Y,HEAD | 1001- | |
| 12 | 08125-01200 | LAMP ASS'Y,HEAD | 1001- | |
| 12 | 08107-01260 | BULB, 60W | 1001- | |
| 12 | 08125-00006 | LENS | 1001- | |
| 13 | 08136-01200 | LAMP ASS'Y,TURN SIGNAL | 1001- | |
| 13 | 08136-01205 | BULB, 5W | 1001- | |
| 13 | 08105-01220 | BULB, 23W | 1001- | |
| 13 | 08136-00003 | LENS,REAR | 1001- | |
| 13 | 08136-00006 | LENS,FRONT | 1001- | |
| 14 | 362-06-23190 | HORN | 1001- | |
| 15 | 01010-50816 | BOLT | 1001- | |
| 16 | 01643-30823 | WASHER | 1001- |
