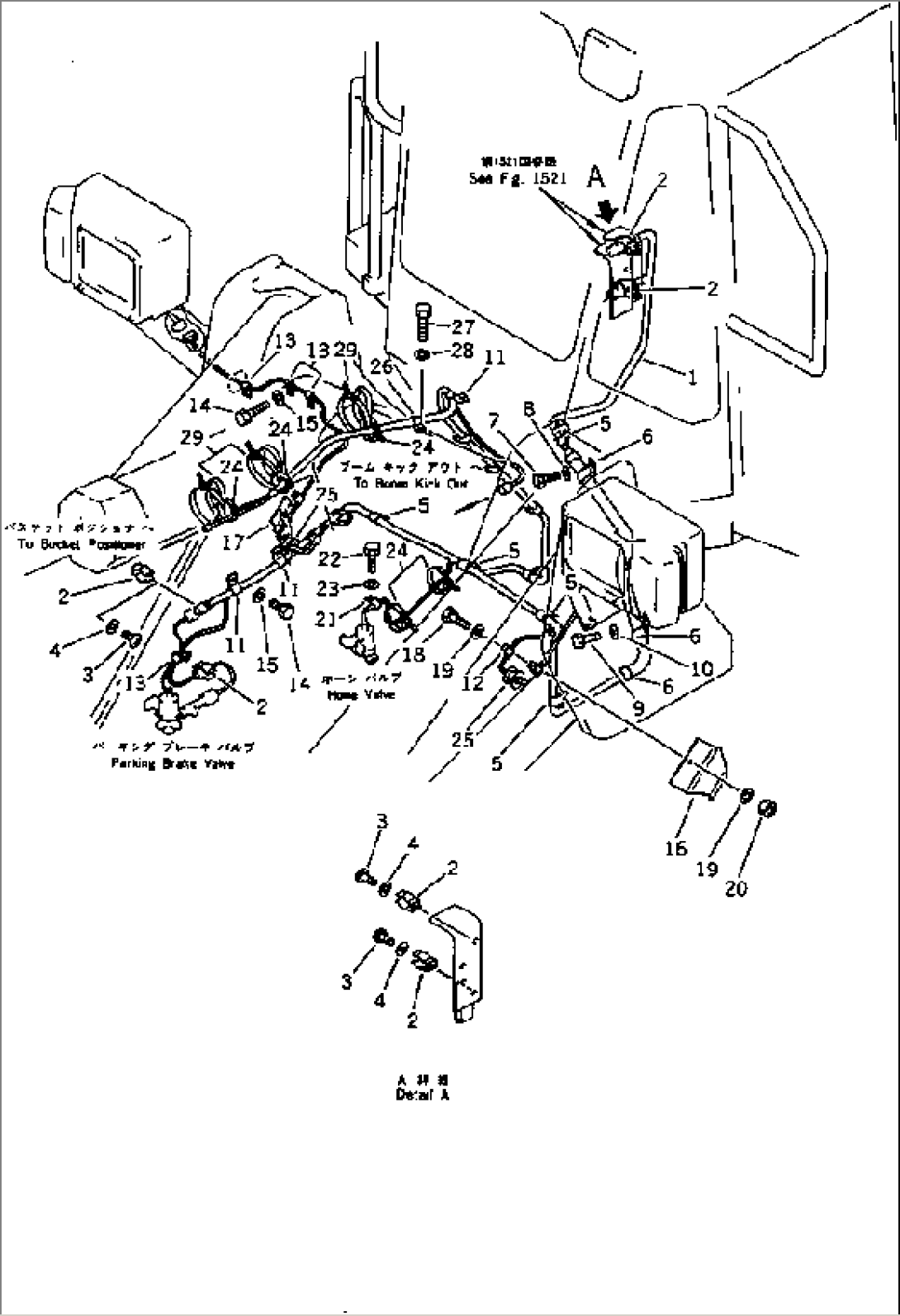

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 424-06-12312 | WIRE ASS'Y | 10001-19999 | |
| 2 | 283-06-17130 | CLIP | 10001-19999 | |
| 3 | 01220-40608 | SCREW | 10001-19999 | |
| 4 | 01641-20608 | WASHER | 10001-19999 | |
| 5 | 08036-01414 | CLIP | 10001-19999 | |
| 6 | 08036-02514 | CLIP | 10001-19999 | |
| 7 | 01010-51220 | BOLT | 10001-19999 | |
| 8 | 01643-31232 | WASHER | 10001-19999 | |
| 9 | 01010-51016 | BOLT | 10001-19999 | |
| 10 | 01643-31032 | WASHER | 10001-19999 | |
| 11 | 424-06-12710 | CLIP | 10001-19999 | |
| 12 | 424-04-11120 | CLIP | 10001-19999 | |
| 13 | 424-06-12720 | CLIP | 10001-19999 | |
| 14 | 01010-51016 | BOLT | 10001-19999 | |
| 15 | 01643-31032 | WASHER | 10001-19999 | |
| 16 | 424-06-12980 | PLATE,L.H. | 10001-19999 | |
| 17 | 424-06-12970 | PLATE,R.H. | 10001-19999 | |
| 18 | 01010-51035 | BOLT | 10001-19999 | |
| 19 | 01643-31032 | WASHER | 10001-19999 | |
| 20 | 01580-11008 | NUT | 10001-19999 | |
| 21 | 08036-01214 | CLIP | 10001-19999 | |
| 22 | 01010-51016 | BOLT | 10001-19999 | |
| 23 | 01643-31032 | WASHER | 10001-19999 | |
| 24 | 08034-00823 | BAND | 10001-19999 | |
| 25 | 424-06-12910 | GROMMET | 10001-19999 | |
| 26 | 424-06-12850 | CLIP | 10001-19999 | |
| 27 | 01010-51016 | BOLT | 10001-19999 | |
| 28 | 01643-31032 | WASHER | 10001-19999 | |
| 29 | 08034-00876 | BAND | 10001-19999 |
