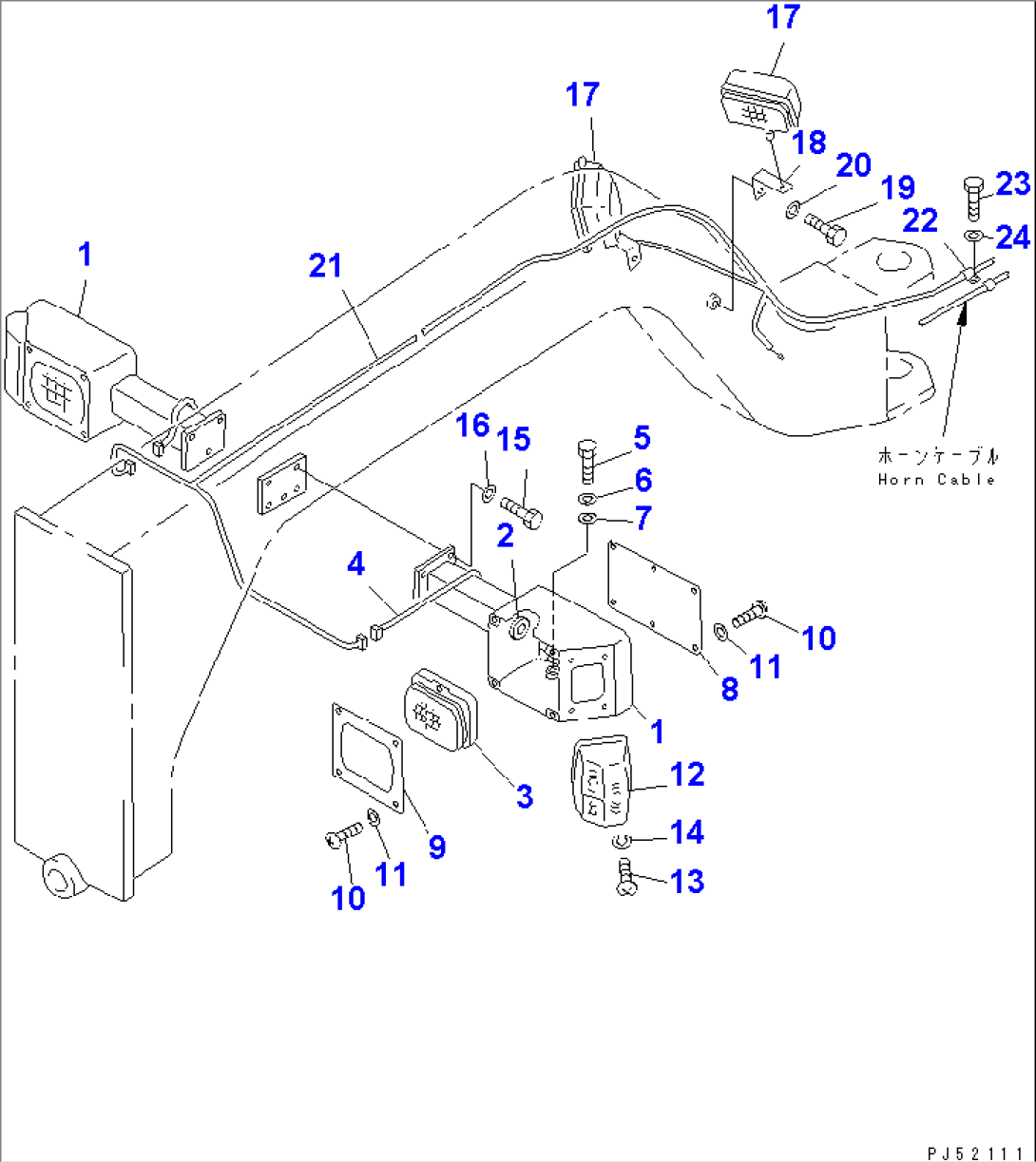

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-06-12420 | BRACKET,L.H. | 6501- | |
| 23D-06-12410 | BRACKET,R.H. | 6501- | ||
| 2 | 08037-03614 | GROMMET | 6501- | |
| 3 | 421-06-13102 | LAMP ASS'Y,HEAD | 6001- | |
| 421-06-13110 | BULB¤ 85/65W | 6001- | ||
| 421-06-13120 | CUSHION | 6001- | ||
| 4 | 23D-06-11811 | WIRE ASS'Y | 6701- | |
| 23D-06-11810 | WIRE ASS'Y | 6501-6700 | ||
| 5 | 01010-51016 | BOLT | 6001- | |
| 6 | 01643-31032 | WASHER | 6001- | |
| 7 | 01641-21016 | WASHER | 6001-6700 | |
| 8 | 23E-06-12161 | COVER | 6001- | |
| 9 | 23E-06-12151 | COVER | 6001- | |
| 10 | 01220-40612 | SCREW | 6001- | |
| 11 | 01643-30623 | WASHER | 6001- | |
| 12 | 421-06-13301 | LAMP ASS'Y,TURN SIGNAL¤ L.H. | 6001- | |
| 421-06-13401 | LAMP ASS'Y,TURN SIGNAL¤ R.H. | 6001- | ||
| 421-06-13310 | BULB¤ 10/4W | 6001- | ||
| 22W-06-12310 | LENS,L.H. | 6001- | ||
| 22W-06-12320 | LENS,R.H. | 6001- | ||
| 08105-12420 | BULB¤ 25W | 6001- | ||
| 01220-50450 | SCREW | 6001- | ||
| 01220-50416 | SCREW | 6001- | ||
| 01641-40405 | WASHER | 6001- | ||
| 13 | 01220-40512 | SCREW | 6001- | |
| 14 | 01601-20513 | WASHER,SPRING | 6001- | |
| 15 | 01010-51030 | BOLT | 6001- | |
| 16 | 01643-31032 | WASHER | 6001- | |
| 17 | 23B-06-22211 | LAMP ASS'Y,FRONT | 6501- | |
| 23B-06-12241 | LENS | 6501- | ||
| 08119-02460 | BULB¤ 60W | 6501- | ||
| 18 | 23B-06-22220 | BRACKET | 6501- | |
| 19 | 01010-51430 | BOLT | 6001- | |
| 20 | 01643-31445 | WASHER | 6001- | |
| 21 | 23D-06-11851 | WIRE ASS'Y | 6701- | |
| 23D-06-11850 | WIRE ASS'Y | 6501-6700 | ||
| 22 | 08036-11214 | CLIP | 6001- | |
| 23 | 01010-51016 | BOLT | 6701- | |
| 24 | 01643-31032 | WASHER | 6701- |
