| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-80101 | HORN ASS'Y | A10001- | |
| 2 | 01010-81025 | BOLT | A10001- | |
| 3 | 01643-31032 | WASHER | A10001- | |
| 4 | 561-06-82830 | BRACKET | A10001- | |
| 5 | 01010-81020 | BOLT | A10001- | |
| 6 | 01643-31032 | WASHER | A10001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n a10001 up
- Electrical system
- Electrical system (horn and bracket)
Поиск по каталогу

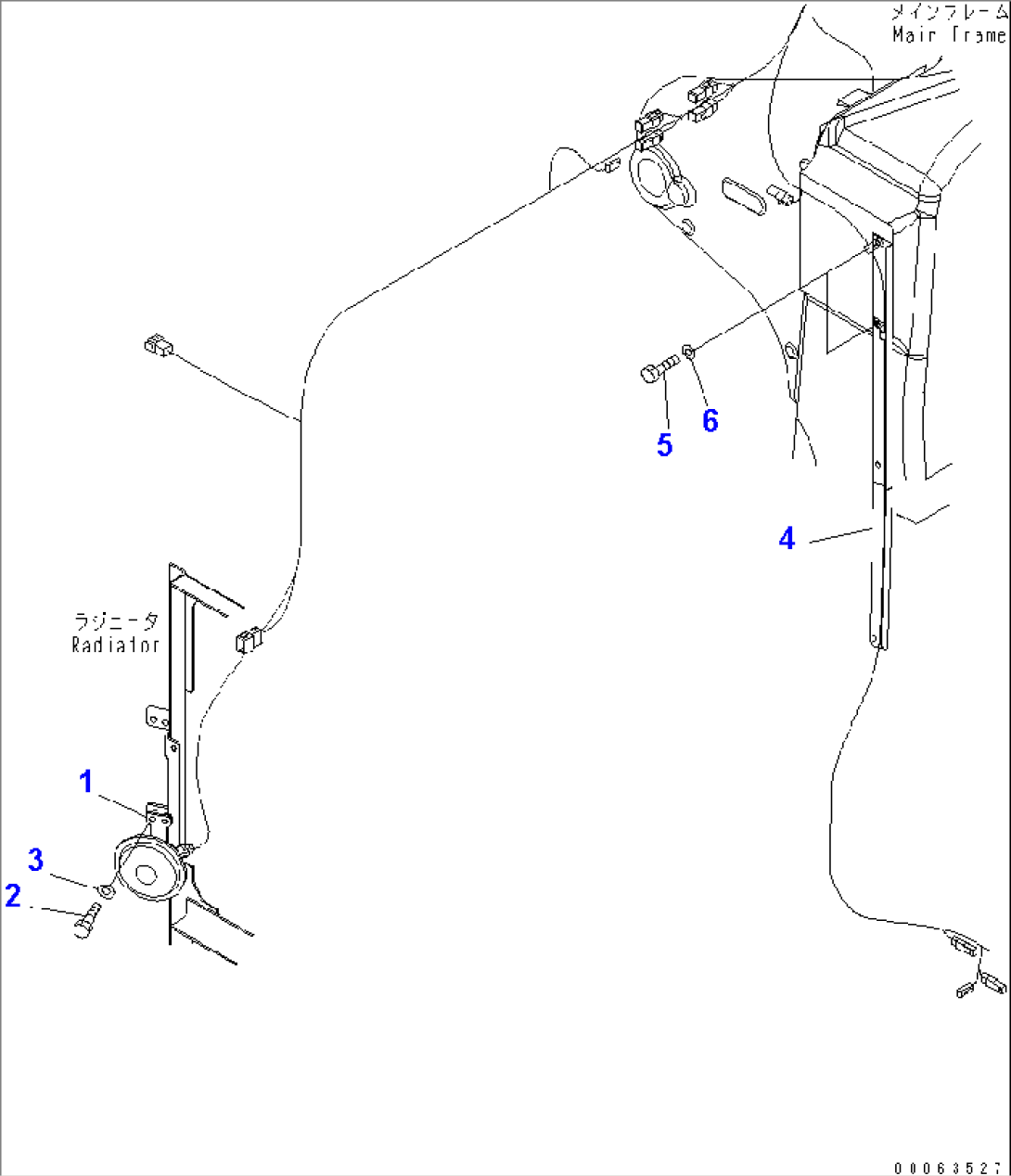

ELECTRICAL SYSTEM (HORN AND BRACKET)
