| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-06-80101 | HORN ASS'Y | 7001-7168 | |
| 2 | 01010-81025 | BOLT | 7001-7168 | |
| 3 | 01643-31032 | WASHER | 7001-7168 | |
| 4 | 561-06-82930 | BRACKET | 7001-7168 | |
| 5 | 01010-81025 | BOLT | 7001-7168 | |
| 6 | 01643-31032 | WASHER | 7001-7168 |
- Главная
- Каталог запчастей
- Самосвалы
- Hd785 7 s/n 7001 8172
- Electrical system
- Electrical system (horn and bracket) (additional filter)(#7001 7168)
Поиск по каталогу

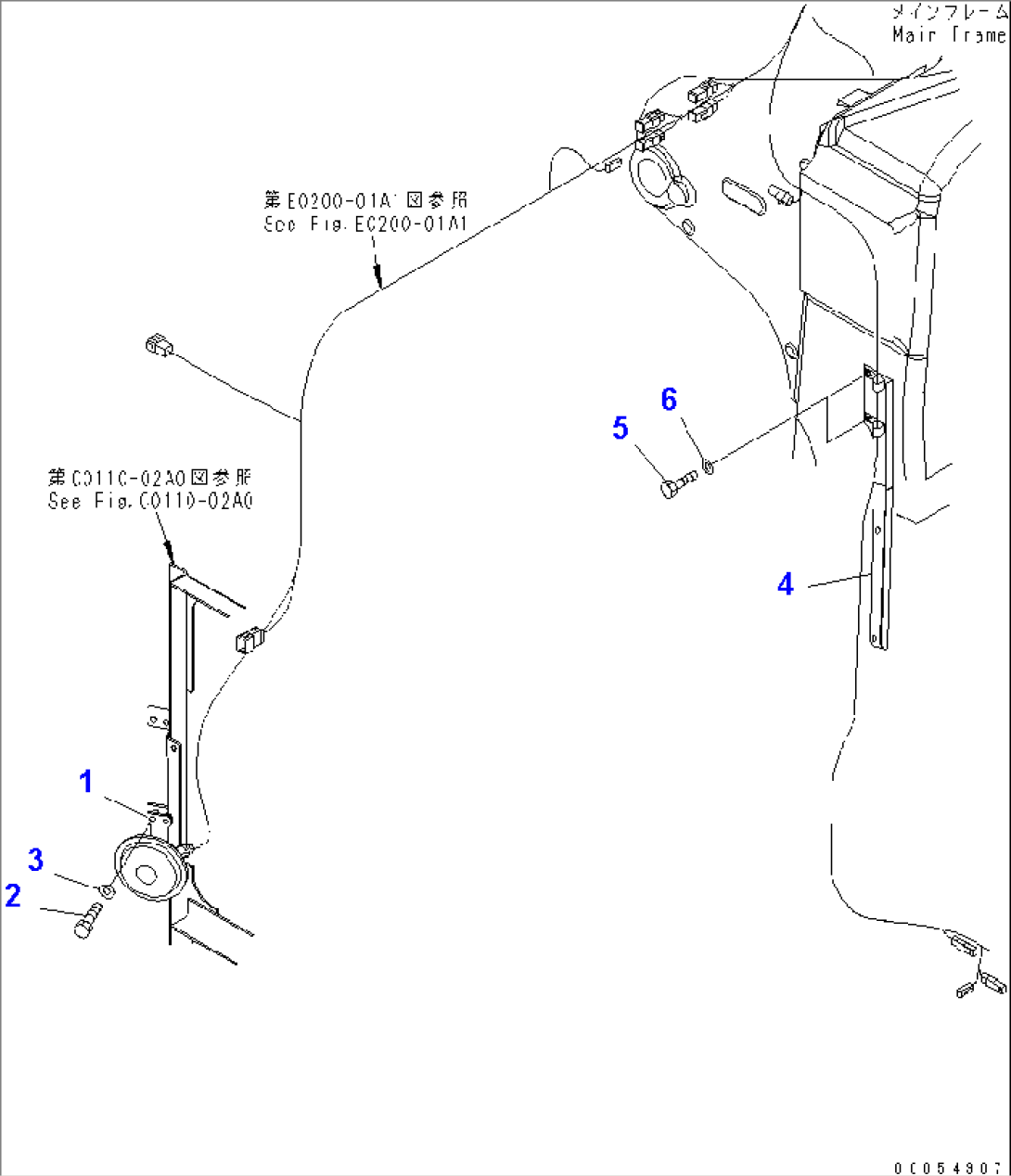

ELECTRICAL SYSTEM (HORN AND BRACKET) (ADDITIONAL FILTER)(#7001-7168)
