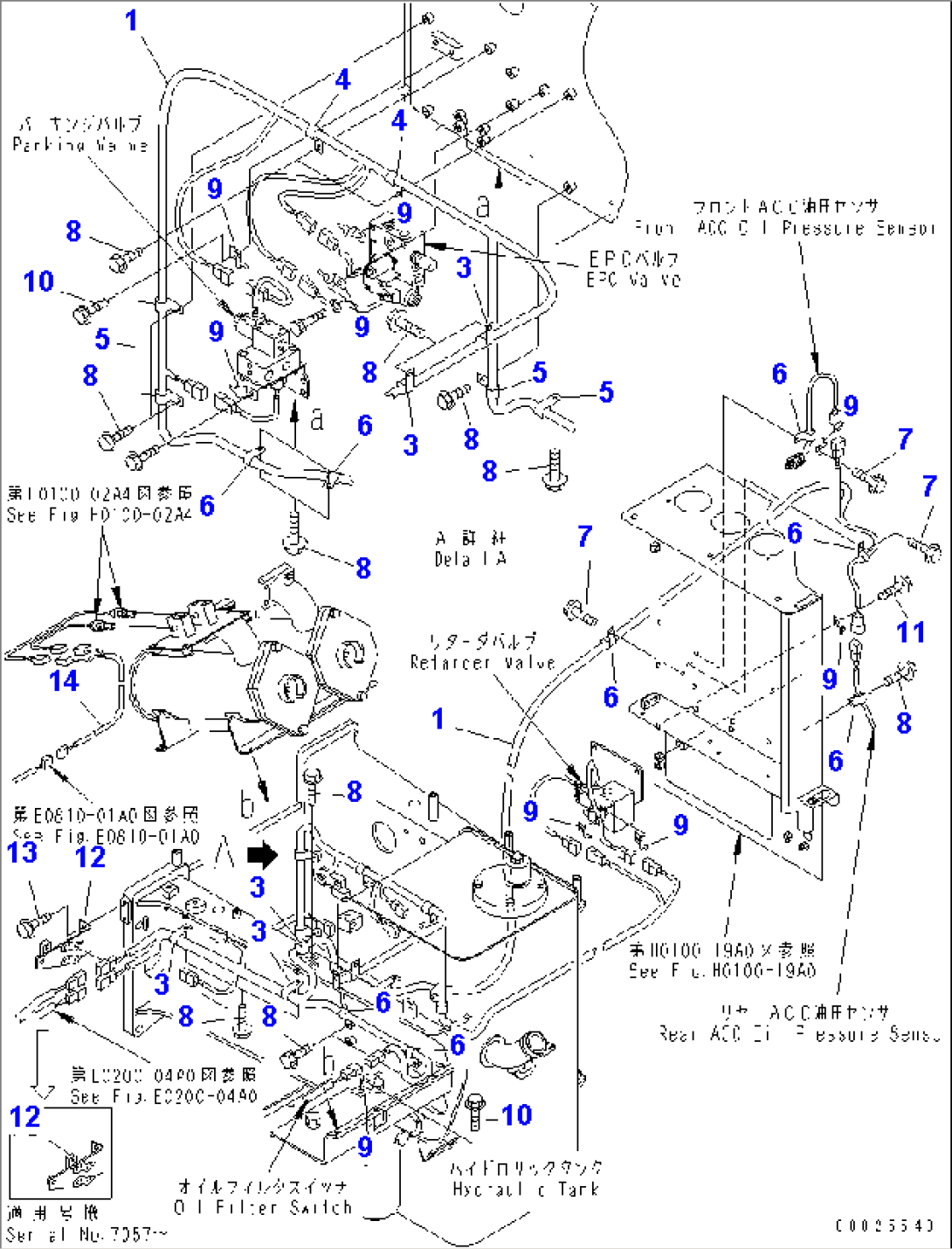

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-06-83253 | WIRING HARNESS | 7057- | |
| 1 | 569-06-83252 | WIRING HARNESS | 7001-7056 | |
| 3 | 04434-51810 | CLIP | 7001- | |
| 4 | 04434-51410 | CLIP | 7001- | |
| 5 | 04434-51210 | CLIP | 7001- | |
| 6 | 04434-51010 | CLIP | 7001- | |
| 7 | 01435-01020 | BOLT | 7001- | |
| 8 | 01435-01016 | BOLT | 7001- | |
| 9 | 08193-21012 | CLIP | 7001- | |
| 10 | 01435-01016 | BOLT | 7001- | |
| 11 | 01435-01020 | BOLT | 7001- | |
| 12 | 569-06-82683 | BRACKET | 7057- | |
| 12 | 569-06-82682 | BRACKET | 7001-7056 | |
| 13 | 01435-01020 | BOLT | 7001- | |
| 14 | 569-86-82380 | WIRING HARNESS | 7001- |
