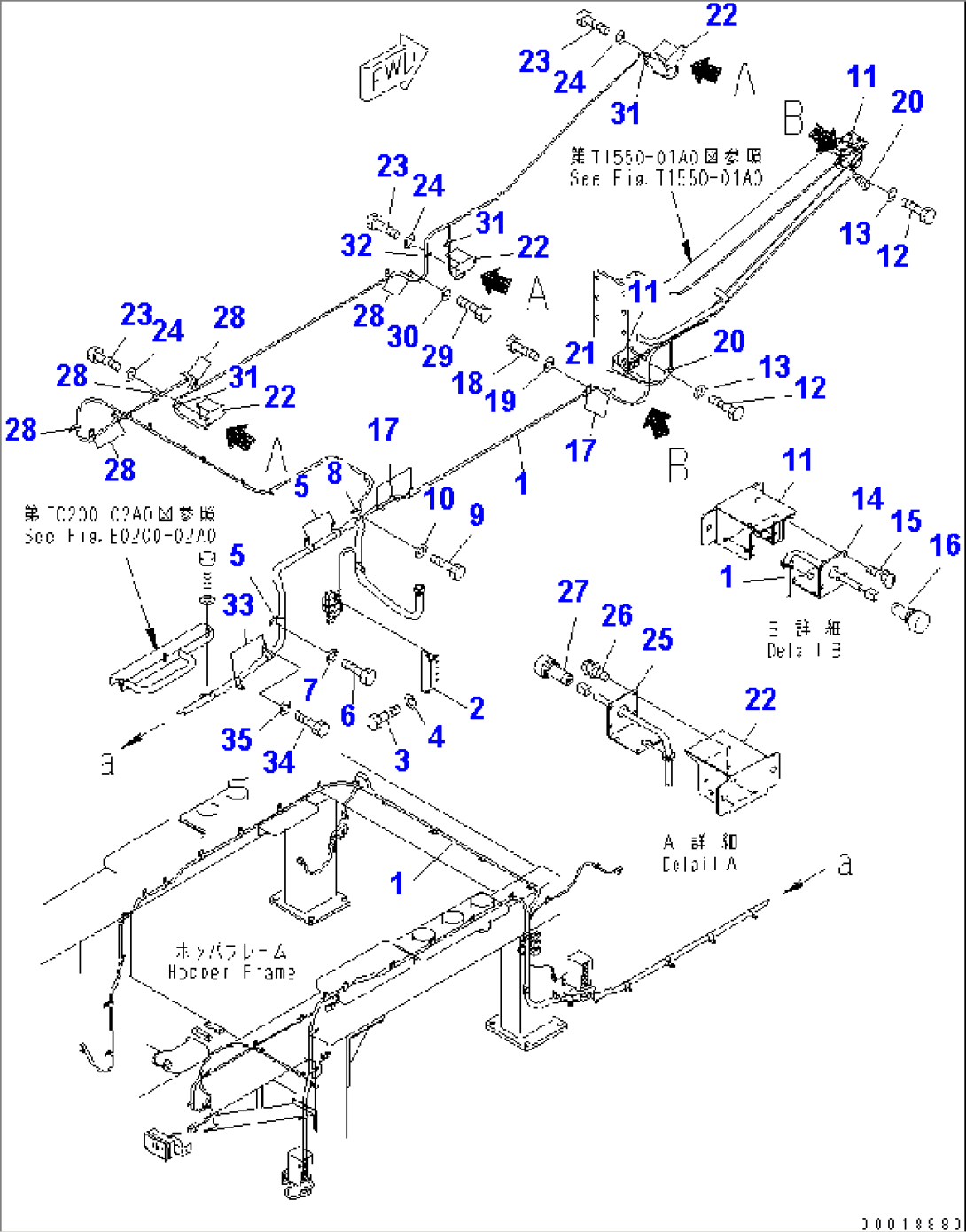

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8295-06-1433 | WIRING HARNESS | 1068- | |
| 1 | 8295-06-1432 | WIRING HARNESS | 1001-1067 | |
| 2 | 8295-06-2141 | BRACKET | 1006- | |
| 2 | \0\8295-06-2140 | BRACKET | 1001-1005 | |
| 3 | 01010-81225 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 04434-52712 | CLIP | 1001- | |
| 6 | 01010-81225 | BOLT | 1001- | |
| 7 | 01643-31232 | WASHER | 1001- | |
| 8 | 04434-51412 | CLIP | 1001- | |
| 9 | 01010-81225 | BOLT | 1001- | |
| 10 | 01643-31232 | WASHER | 1001- | |
| 11 | 8253-06-1221 | BOX | 1001- | |
| 12 | 01010-81020 | BOLT | 1001- | |
| 13 | 01643-31032 | WASHER | 1001- | |
| 14 | 8253-06-1211 | PLATE | 1001- | |
| 15 | 01023-20420 | SCREW | 1001- | |
| 16 | 8221-06-1471 | SWITCH | 1088- | |
| 16 | 8221-06-1470 | SWITCH | 1001-1087 | |
| 16 | 8221-06-1661 | CAP, RED | 1088- | |
| 16 | 8221-06-1660 | CAP, RED | 1001-1087 | |
| 17 | 04434-51412 | CLIP | 1001- | |
| 18 | 01010-81225 | BOLT | 1001- | |
| 19 | 01643-31232 | WASHER | 1001- | |
| 20 | 04434-51010 | CLIP | 1001- | |
| 21 | 04434-51410 | CLIP | 1001- | |
| 22 | 8253-06-1221 | BOX | 1001- | |
| 23 | 01010-81020 | BOLT | 1001- | |
| 24 | 01643-31032 | WASHER | 1001- | |
| 25 | 8253-06-1211 | PLATE | 1001- | |
| 26 | 01023-20420 | SCREW | 1001- | |
| 27 | 8221-06-1471 | SWITCH | 1088- | |
| 27 | 8221-06-1470 | SWITCH | 1001-1087 | |
| 27 | 8221-06-1661 | CAP, RED | 1088- | |
| 27 | 8221-06-1660 | CAP, RED | 1001-1087 | |
| 28 | 04434-51412 | CLIP | 1001- | |
| 29 | 01010-81225 | BOLT | 1001- | |
| 30 | 01643-31232 | WASHER | 1001- | |
| 31 | 04434-51010 | CLIP | 1001- | |
| 32 | 04434-51410 | CLIP | 1001- | |
| 33 | 04434-52712 | CLIP | 1001- | |
| 34 | 01010-81225 | BOLT | 1001- | |
| 35 | 01643-31232 | WASHER | 1001- |
