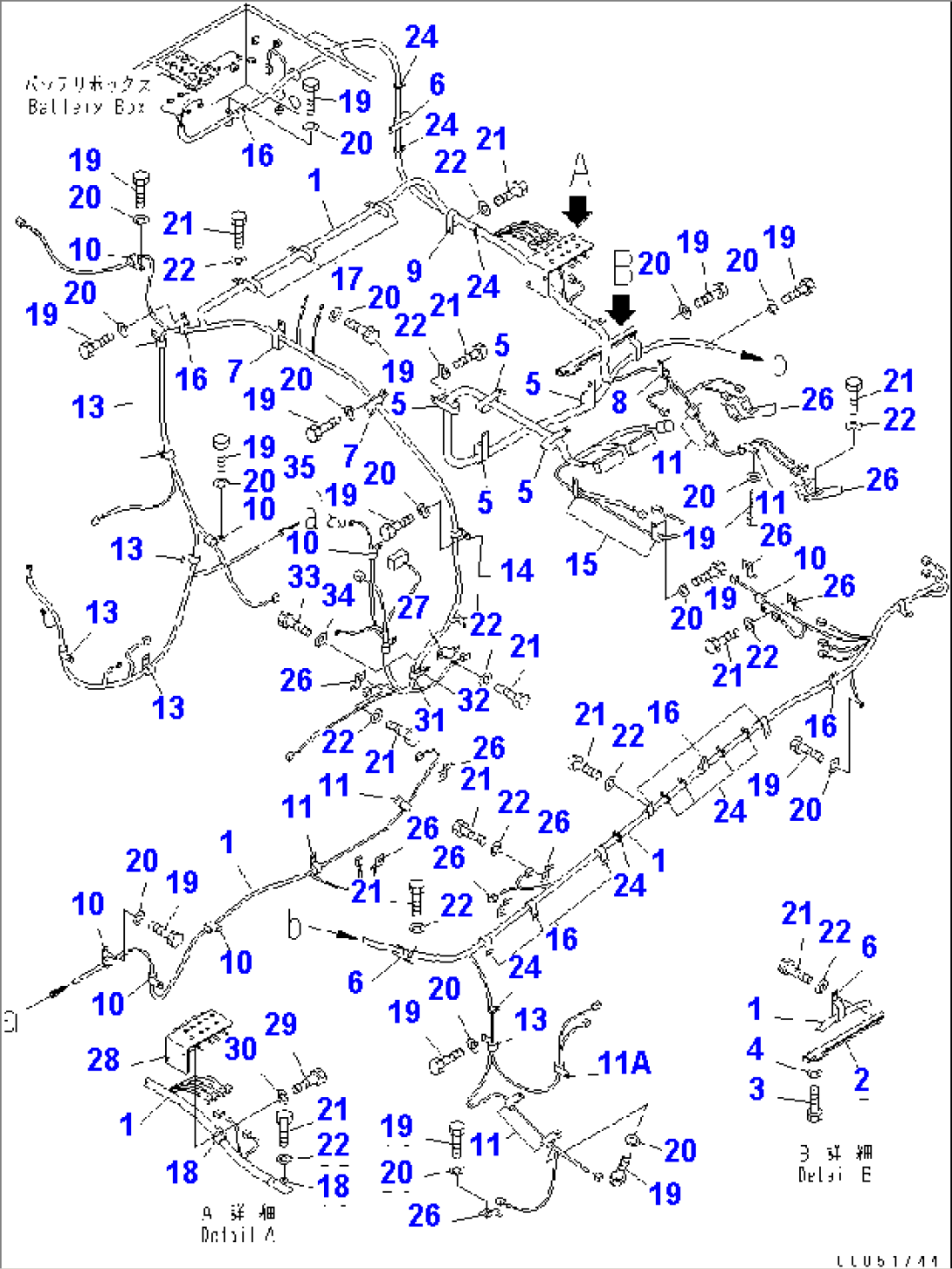

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-06-84113 | WIRING HARNESS | 7207- | |
| 1 | 566-06-84112 | WIRING HARNESS | 7001-7206 | |
| 1 | 56B-06-11510 | CONNECTOR | 7001- | |
| 1 | 56B-06-11520 | CONNECTOR | 7001- | |
| 1 | 56B-06-11540 | CONNECTOR | 7001- | |
| 1 | 19M-06-31720 | RESISTOR | 7001- | |
| 1 | 56B-06-16510 | DIODE | 7001- | |
| 2 | 566-06-84372 | BRACKET | 7001- | |
| 3 | 01010-81016 | BOLT | 7001- | |
| 4 | 01643-31032 | WASHER | 7001- | |
| 5 | 569-06-61980 | CLIP | 7001- | |
| 6 | 04435-52210 | CLIP | 7001- | |
| 7 | 04435-51610 | CLIP | 7001- | |
| 8 | 04435-51410 | CLIP | 7001- | |
| 9 | 04434-53211 | CLIP | 7001- | |
| 10 | 04434-50810 | CLIP | 7001- | |
| 11 | 04434-51010 | CLIP | 7009- | |
| 11 | 04434-51010 | CLIP | 7001-7008 | |
| 11A | 04434-51012 | CLIP | 7009- | |
| 13 | 04434-51410 | CLIP | 7001- | |
| 14 | 04434-51510 | CLIP | 7001- | |
| 15 | 04434-51610 | CLIP | 7001- | |
| 16 | 04434-51810 | CLIP | 7001- | |
| 17 | 04434-52210 | CLIP | 7001- | |
| 18 | 04434-53411 | CLIP | 7001- | |
| 19 | 01010-81016 | BOLT | 7009- | |
| 19 | 01010-81016 | BOLT | 7001-7008 | |
| 20 | 01643-31032 | WASHER | 7009- | |
| 20 | 01643-31032 | WASHER | 7001-7008 | |
| 21 | 01010-81020 | BOLT | 7001- | |
| 22 | 01643-31032 | WASHER | 7001- | |
| 24 | 08034-00519 | BAND | 7001- | |
| 26 | 08193-21012 | CLIP | 7001- | |
| 27 | 08193-31012 | CLIP | 7001- | |
| 28 | 566-06-84381 | BRACKET | 7001- | |
| 29 | 01010-81020 | BOLT | 7001- | |
| 30 | 01643-31032 | WASHER | 7001- | |
| 31 | 07095-20314 | CUSHION | 7001- | |
| 32 | 04434-52110 | CLIP | 7001- | |
| 33 | 01010-81016 | BOLT | 7001- | |
| 34 | 01643-31032 | WASHER | 7001- | |
| 35 | 08038-00518 | CAP | 7001- |
