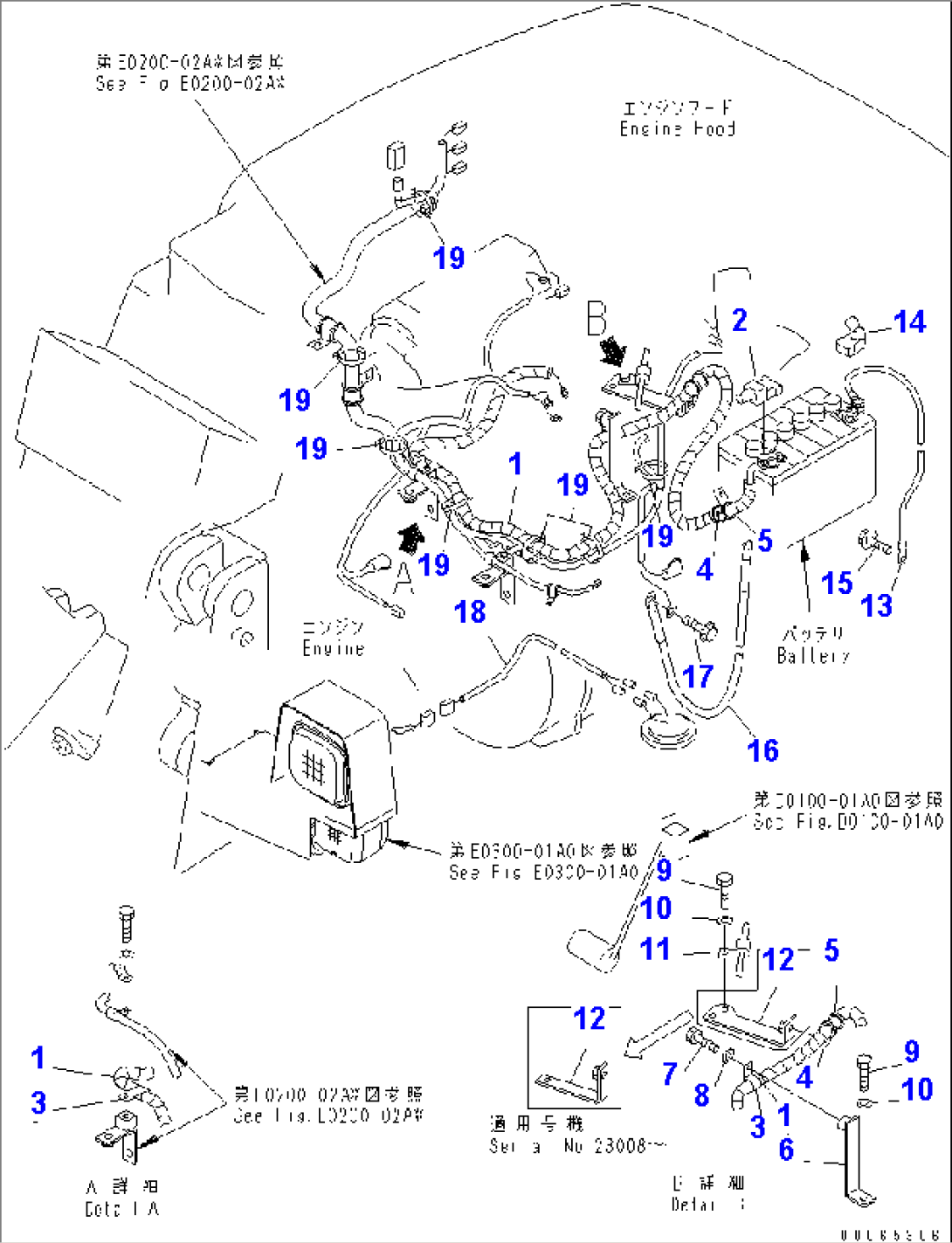

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-06-22111 | WIRE ASS'Y | 23042- | |
| 1 | 42A-06-22110 | WIRE ASS'Y | 23001-23041 | |
| 2 | 08038-42009 | CAP,+ | 23001- | |
| 3 | 04434-51710 | CLIP | 23042- | |
| 4 | 04434-52512 | CLIP | 23042- | |
| 4 | 04434-52512 | CLIP | 23001-23041 | |
| 5 | 07095-20318 | CUSHION | 23042- | |
| 5 | 07095-20318 | CUSHION | 23001-23041 | |
| 6 | 363-06-36230 | BRACKET | 23001- | |
| 7 | 01010-81020 | BOLT | 23001- | |
| 8 | 01643-31032 | WASHER | 23001- | |
| 9 | 01010-80820 | BOLT | 23001- | |
| 10 | 01643-30823 | WASHER | 23001- | |
| 11 | 04434-50608 | CLIP | 23042- | |
| 11 | 04434-50810 | CLIP | 23001-23041 | |
| 12 | 363-06-36260 | BRACKET | 23008- | |
| 12 | 2953-10-1531 | BRACKET | 23001-23007 | |
| 13 | 363-06-32160 | WIRE | 23001- | |
| 14 | 424-09-12530 | BOOT,- | 23001- | |
| 15 | 01435-01016 | BOLT | 23001- | |
| 16 | 419-06-12450 | WIRE | 23001- | |
| 17 | 01435-01016 | BOLT | 23001- | |
| 18 | 363-06-32190 | WIRING HARNESS | 23001- | |
| 19 | 08034-20519 | BAND | 23042- | |
| 19 | 08034-20519 | BAND | 23001-23041 |
