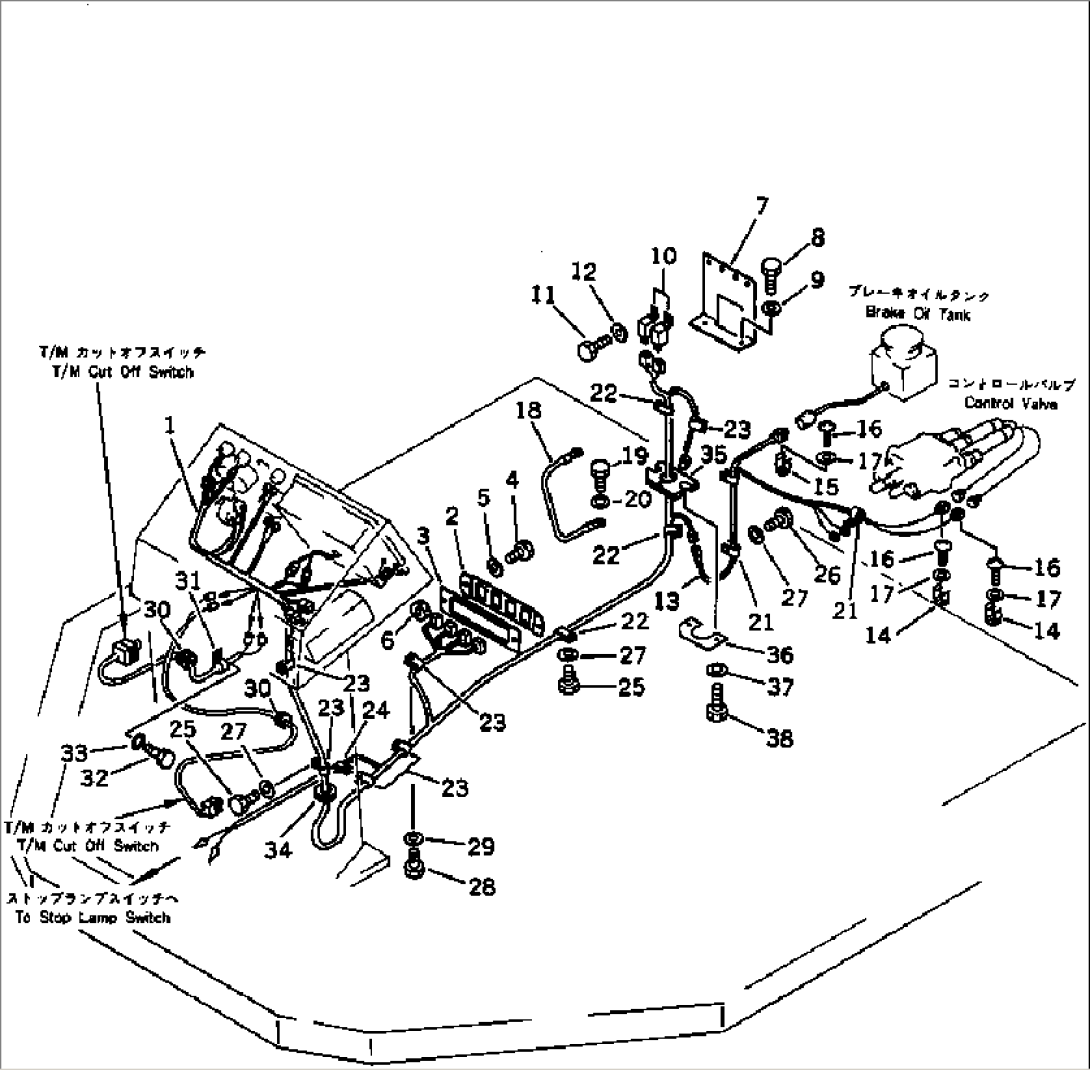

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-06-12631 | WIRE ASS'Y | 10188- | |
| 1 | \0\418-06-12630 | WIRE ASS'Y | 10001-10187 | |
| 1 | 421-06-11970 | DIODE | 10001- | |
| 2 | 41A-06-12210 | PLATE | 10001- | |
| 3 | 417-06-12360 | PLATE | 10001- | |
| 4 | 01010-50820 | BOLT | 10001- | |
| 5 | 01643-30823 | WASHER | 10001- | |
| 6 | 01580-00806 | NUT | 10001- | |
| 7 | 41A-06-11120 | BRACKET | 10001- | |
| 8 | 01010-50820 | BOLT | 10001- | |
| 9 | 01643-30823 | WASHER | 10001- | |
| 10 | 287-06-16410 | RELAY | 10001- | |
| 11 | 01010-50610 | BOLT | 10001- | |
| 12 | 01643-30623 | WASHER | 10001- | |
| 13 | 418-06-12530 | WIRE ASS'Y | 10001- | |
| 13 | 421-06-11970 | DIODE | 10001- | |
| 14 | 283-06-17130 | CLIP | 10001- | |
| 15 | 421-06-12910 | CLIP | 10001- | |
| 16 | 01220-40608 | SCREW | 10001- | |
| 17 | 01641-20608 | WASHER | 10001- | |
| 18 | 419-06-12450 | WIRE | 10001- | |
| 19 | 01010-51016 | BOLT | 10001- | |
| 20 | 01643-31032 | WASHER | 10001- | |
| 21 | 08036-11214 | CLIP | 10308- | |
| 21 | 08036-11214 | CLIP | 10001-10307 | |
| 22 | 08036-01414 | CLIP | 10001- | |
| 23 | 08036-02514 | CLIP | 10001- | |
| 24 | 08036-10614 | CLIP | 10001- | |
| 25 | 01010-51016 | BOLT | 10308- | |
| 25 | 01010-51016 | BOLT | 10001-10307 | |
| 26 | 01010-51020 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10308- | |
| 27 | 01643-31032 | WASHER | 10001-10307 | |
| 28 | 01010-51220 | BOLT | 10001- | |
| 29 | 01643-31232 | WASHER | 10001- | |
| 30 | 08037-01008 | GROMMET | 10001- | |
| 31 | 08036-10814 | CLIP | 10001- | |
| 32 | 01010-51016 | BOLT | 10001- | |
| 33 | 01643-31032 | WASHER | 10001- | |
| 34 | 08037-02512 | GROMMET | 10308- | |
| 35 | 419-06-12651 | SHEET | 10162- | |
| 35 | 419-06-12650 | SHEET | 10001-10161 | |
| 36 | 419-06-12640 | PLATE | 10001- | |
| 37 | 01010-50616 | BOLT | 10001- | |
| 38 | 01643-30623 | WASHER | 10001- |
