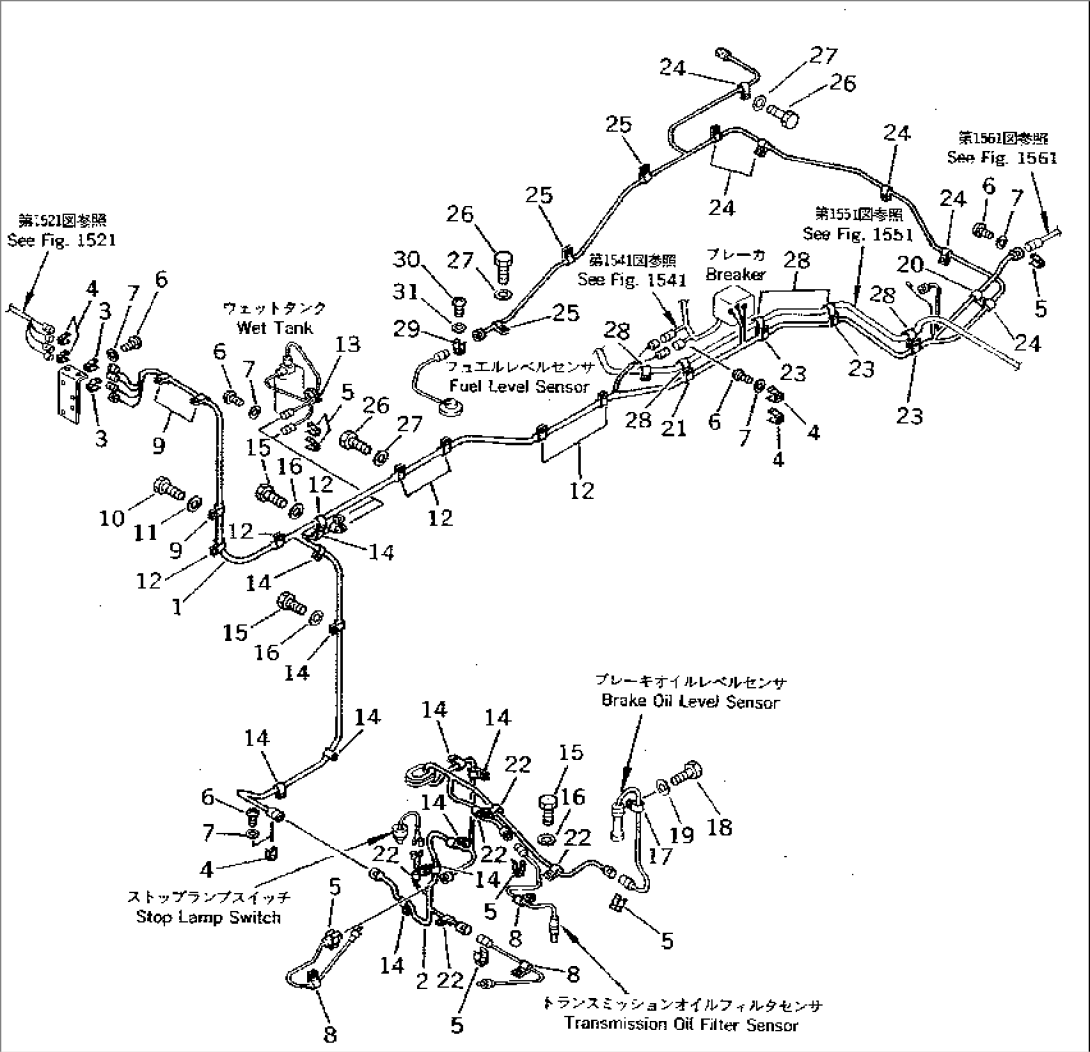

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-12113 | WIRE ASS'Y | 10001- | |
| 1 | 421-06-11970 | DIODE | 10001- | |
| 2 | 426-06-12723 | WIRE ASS'Y | 10001- | |
| 3 | 421-06-12610 | CLIP | 10001- | |
| 4 | 283-06-17120 | CLIP | 10001- | |
| 5 | 421-06-12910 | CLIP | 10001- | |
| 6 | 01220-40608 | SCREW | 10001- | |
| 7 | 01641-20608 | WASHER | 10001- | |
| 8 | 362-43-18780 | CLIP | 10001- | |
| 9 | 08036-02514 | CLIP | 10001- | |
| 10 | 01010-51020 | BOLT | 10001- | |
| 11 | 01643-31032 | WASHER | 10001- | |
| 12 | 424-06-12790 | CLIP | 10001- | |
| 13 | 08034-00414 | BAND | 10001- | |
| 14 | 424-06-12720 | CLIP | 10001- | |
| 15 | 01010-51020 | BOLT | 10001- | |
| 16 | 01643-31032 | WASHER | 10001- | |
| 17 | 6693-92-4330 | CLIP | 10001- | |
| 18 | 01010-50610 | BOLT | 10001- | |
| 19 | 01643-30623 | WASHER | 10001- | |
| 20 | 425-70-13120 | CLIP | 10001- | |
| 21 | 08036-01814 | CLIP | 10001- | |
| 22 | 424-06-12710 | CLIP | 10001- | |
| 23 | 08035-01514 | CLIP | 10001- | |
| 24 | 424-06-12720 | CLIP | 10001- | |
| 25 | 424-06-12710 | CLIP | 10001- | |
| 26 | 01010-51020 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10001- | |
| 28 | 424-09-12550 | CLIP | 10001- | |
| 29 | 421-06-12910 | CLIP | 10001- | |
| 30 | 01220-40608 | SCREW | 10001- | |
| 31 | 01641-20608 | WASHER | 10001- |
