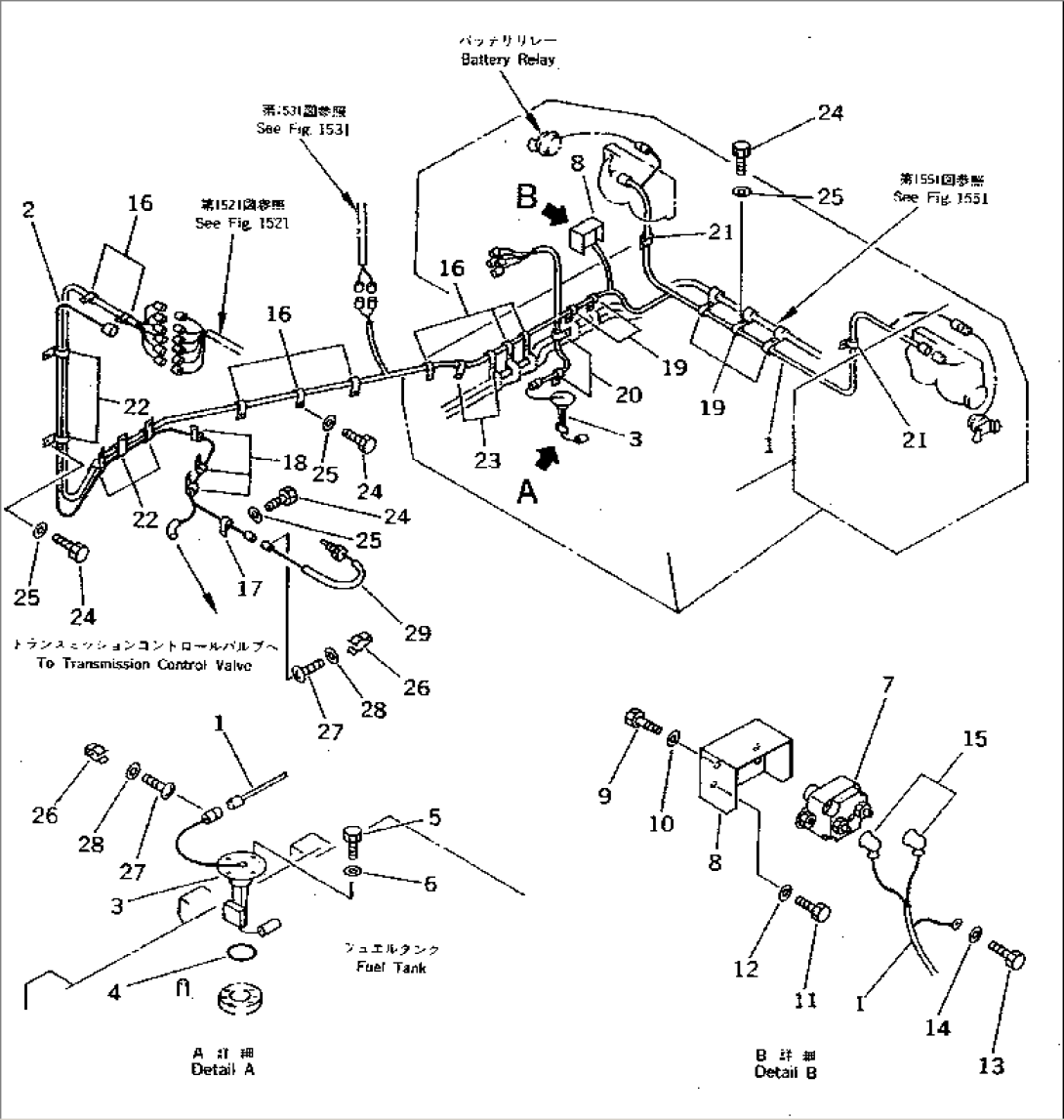

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-06-12182 | WIRE ASS'Y | 10001-10499 | |
| 1 | 421-06-11970 | DIODE | 10001-@ | |
| 1 | 08034-00519 | BAND | 10001-@ | |
| 1 | 426-06-12190 | CAP | 10001-@ | |
| 2 | 427-06-12133 | WIRE ASS'Y | 10001-10499 | |
| 2 | 421-06-11970 | DIODE | 10001-@ | |
| 2 | 08034-00519 | BAND | 10001-@ | |
| 3 | 7861-91-4750 | SENSOR,FUEL LEVEL | 10001-10499 | |
| 4 | 07000-02085 | O-RING | 10001-@ | |
| 5 | 01010-51016 | BOLT | 10001-10499 | |
| 6 | 01643-51032 | WASHER | 10001-10499 | |
| 7 | 421-06-11440 | BREAKER | 10001-@ | |
| 8 | 421-06-11450 | BRACKET | 10001-@ | |
| 9 | 01010-50616 | BOLT | 10001-10499 | |
| 10 | 01643-30623 | WASHER | 10001-10499 | |
| 11 | 01010-51020 | BOLT | 10001-10499 | |
| 12 | 01643-31032 | WASHER | 10001-10499 | |
| 13 | 01010-51020 | BOLT | 10001-@ | |
| 14 | 01643-31032 | WASHER | 10001-@ | |
| 15 | 08038-02027 | CAP | 10001-@ | |
| 16 | 424-06-12790 | CLIP | 10001-@ | |
| 17 | 425-70-13120 | CLIP | 10001-@ | |
| 18 | 08036-01414 | CLIP | 10001-@ | |
| 19 | 426-35-11250 | CLIP | 10001-@ | |
| 20 | 424-06-12710 | CLIP | 10001-@ | |
| 21 | 08036-01814 | CLIP | 10001-@ | |
| 22 | 08036-03014 | CLIP | 10001-@ | |
| 23 | 424-06-12780 | CLIP | 10001-@ | |
| 24 | 01010-51020 | BOLT | 10001-@ | |
| 25 | 01643-31032 | WASHER | 10001-@ | |
| 26 | 421-06-12910 | CLIP | 10001-10499 | |
| 27 | 01220-40608 | SCREW | 10001-@ | |
| 28 | 01641-20608 | WASHER | 10001-@ | |
| 29 | 7861-91-3310 | SENSOR,OIL TEMPERATURE | 10023-10499 | |
| 29 | \0\7861-99-3300 | SENSOR,OIL TEMPERATURE | 10001-10022 |
