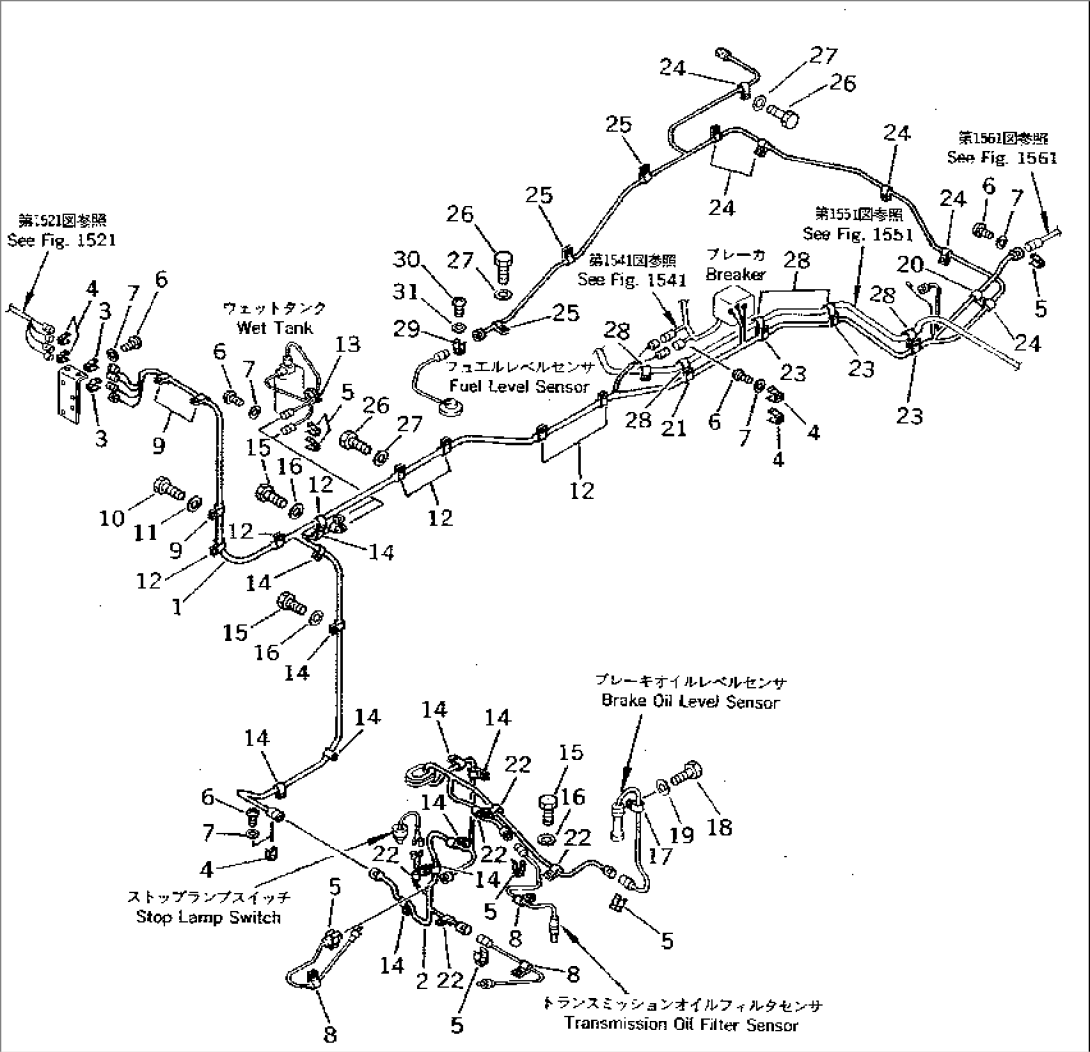

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 426-06-12117 | WIRE ASS'Y | 11387- | |
| \0\426-06-12116 | WIRE ASS'Y | 11335-11386 | ||
| \0\426-06-12115 | WIRE ASS'Y | 11109-11334 | ||
| 08020-10000 | DIODE | 10001- | ||
| 2 | 426-06-12726 | WIRE ASS'Y | 11335- | |
| \0\426-06-12725 | WIRE ASS'Y | 11109-11334 | ||
| 3 | 08052-02711 | CLIP | 10001- | |
| 4 | 08052-02411 | CLIP | 10001- | |
| 5 | 08052-01711 | CLIP | 10001- | |
| 6 | 01220-40608 | SCREW | 10001- | |
| 7 | 01641-20608 | WASHER | 10001- | |
| 8 | 362-43-18780 | CLIP | 10001- | |
| 9 | 08052-12711 | CLIP | 11279- | |
| 10 | 01010-81020 | BOLT | 10001- | |
| 11 | 01643-31032 | WASHER | 10001- | |
| 12 | 08052-12711 | CLIP | 11279- | |
| 13 | 08034-00414 | BAND | 10001- | |
| 14 | 08036-01414 | CLIP | 11279- | |
| 15 | 01010-81020 | BOLT | 10001- | |
| 16 | 01643-31032 | WASHER | 10001- | |
| 17 | 6693-92-4330 | CLIP | 10001- | |
| 18 | 01010-80610 | BOLT | 10001- | |
| 19 | 01643-30623 | WASHER | 10001- | |
| 20 | 08036-01014 | CLIP | 11279- | |
| 21 | 08052-12411 | CLIP | 11279- | |
| 22 | 08036-01014 | CLIP | 11279- | |
| 23 | 08052-12411 | CLIP | 11279- | |
| 24 | 08036-01414 | CLIP | 11279- | |
| 25 | 08036-01014 | CLIP | 11279- | |
| 26 | 01010-81020 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10001- | |
| 28 | 424-09-12550 | CLIP | 10001- | |
| 29 | 421-06-12910 | CLIP | 10001- | |
| 30 | 01220-40608 | SCREW | 10001- | |
| 31 | 01641-20608 | WASHER | 10001- |
