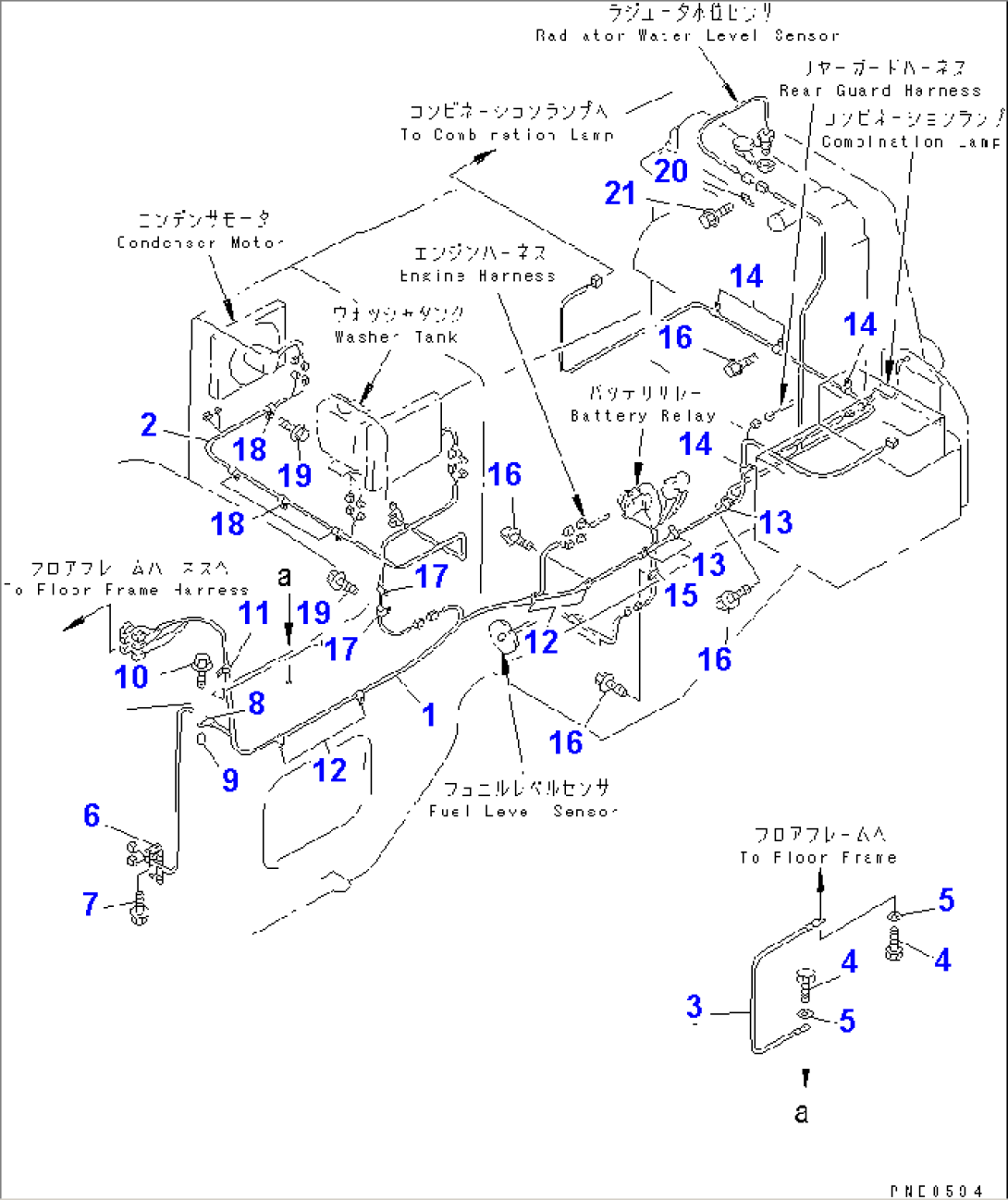

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-22110 | WIRING HARNESS,REAR FRAME | 50001- | |
| 1 | 08020-10000 | DIODE | 50001- | |
| 2 | 421-06-22851 | WIRING HARNESS,BULKHEAD | 50001- | |
| 2 | 08020-10000 | DIODE | 50001- | |
| 3 | 08028-12045 | CABLE,EARTH | 50001- | |
| 4 | 01010-51016 | BOLT | 50001- | |
| 5 | 01643-31032 | WASHER | 50001- | |
| 6 | 421-06-22660 | BRACKET | 50001- | |
| 7 | 01435-01220 | BOLT | 50001- | |
| 8 | 04434-51710 | CLIP | 50001- | |
| 9 | 417-54-15541 | SPACER | 50001- | |
| 10 | 01435-01055 | BOLT | 50001- | |
| 11 | 04434-53410 | CLIP | 50001- | |
| 12 | 04434-52710 | CLIP | 50001- | |
| 13 | 08052-12411 | CLIP | 50001- | |
| 14 | 04434-51710 | CLIP | 50001- | |
| 15 | 04434-51010 | CLIP | 50001- | |
| 16 | 01435-01016 | BOLT | 50001- | |
| 17 | 04434-51410 | CLIP | 50001- | |
| 18 | 04434-51010 | CLIP | 50001- | |
| 19 | 01435-01016 | BOLT | 50001- | |
| 20 | (08053-01510) | CLIP | 50001- | |
| 21 | (01435-01016) | BOLT | 50001- |
