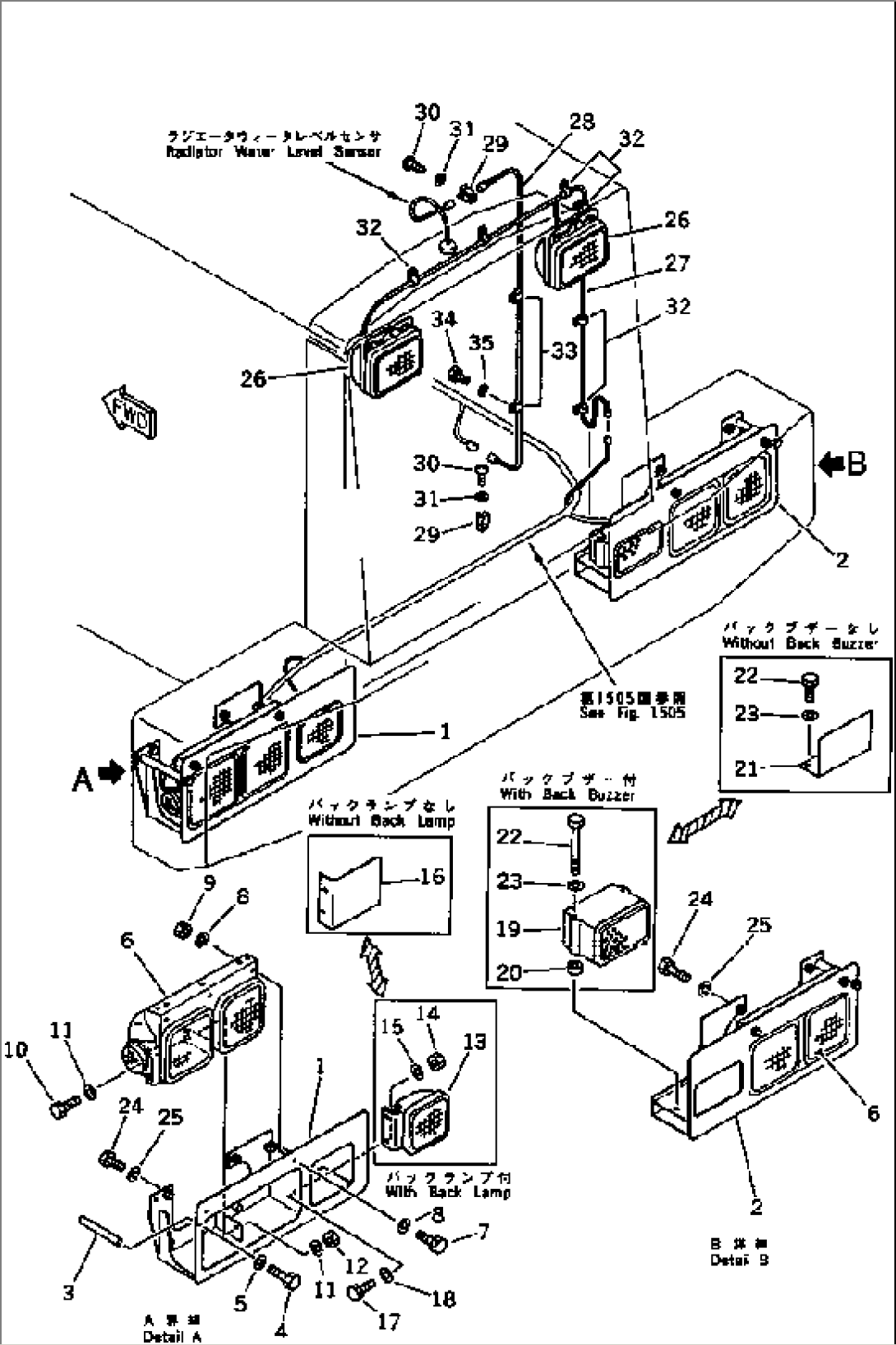

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-13202 | WORK LAMP ASS'Y | 10001- | |
| 1 | 22W-06-12170 | BULB | 10001- | |
| 1 | 421-06-13120 | CUSHION | 10001- | |
| 2 | 419-06-12341 | WIRE ASS'Y | 10001- | |
| 3 | 418-06-13710 | BRACKET,L.H. | 10001- | |
| 4 | 418-06-13720 | BRACKET,R.H. | 10001- | |
| 5 | 01010-51225 | BOLT | 10001- | |
| 6 | 01643-31232 | WASHER | 10001- | |
| 7 | 417-06-13681 | HOLDER,LAMP, L.H. | 10001- | |
| 8 | 417-06-13691 | HOLDER,LAMP, R.H. | 10001- | |
| 9 | 417-06-13630 | PIN | 10001- | |
| 10 | 04050-14020 | PIN,COTTER | 10001- | |
| 11 | 419-54-14310 | SPRING | 10001- | |
| 12 | 01220-40406 | SCREW | 10001- | |
| 13 | 01601-20410 | WASHER,SPRING | 10001- | |
| 14 | 416-U61-1210 | PLATE | 10001- | |
| 15 | 417-06-13650 | SPRING | 10001- | |
| 16 | 417-06-13640 | HOLDER | 10001- | |
| 17 | 04050-13015 | PIN,COTTER | 10001- | |
| 18 | 419-06-12870 | WIRE ASS'Y | 10001- | |
| 19 | 08037-02512 | GROMMET | 10001- | |
| 20 | 418-06-17120 | BRACKET | 10001- | |
| 21 | 424-06-12940 | RIVET | 10001- | |
| 22 | 01010-51225 | BOLT | 10001- | |
| 23 | 01643-31232 | WASHER | 10001- | |
| 24 | 419-06-12550 | WIRE ASS'Y | 10001- | |
| 25 | 424-06-12122 | WIRE ASS'Y | 10001- | |
| 26 | 421-06-12910 | CLIP | 10001- | |
| 27 | 01220-40608 | SCREW | 10001- | |
| 28 | 01641-20608 | WASHER | 10001- | |
| 29 | 08036-10810 | CLIP | 10001- | |
| 30 | 08036-10814 | CLIP | 10001- | |
| 31 | 01010-51016 | BOLT | 10001- | |
| 32 | 01643-31032 | WASHER | 10001- | |
| 33 | 421-06-12910 | CLIP | 10001- | |
| 34 | 01220-40608 | SCREW | 10001- | |
| 35 | 01641-40608 | WASHER | 10001- | |
| 36 | 08037-02512 | GROMMET | 10001- |
