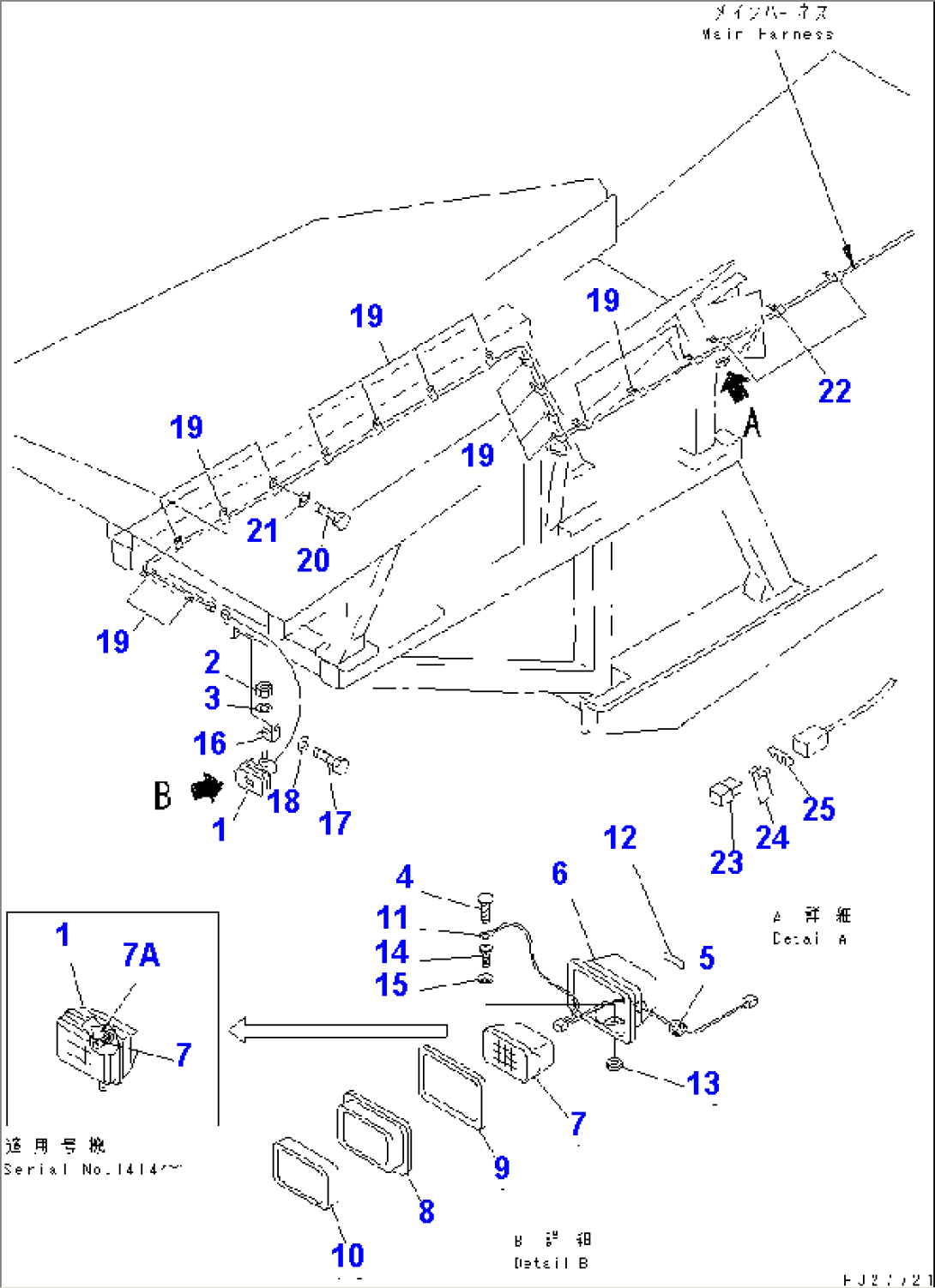

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-06-17920 | WORK LAMP ASS'Y | 1414-@ | |
| 203-06-56140 | LAMP ASS'Y | 1005-1413 | ||
| 2 | 01582-11411 | NUT | 1005-1413 | |
| 3 | 01643-31445 | WASHER | 1005-1413 | |
| 4 | 04418-03060 | SCREW | 1005-1413 | |
| 5 | 09415-01008 | CAP | 1005-1413 | |
| 6 | 203-06-56160 | HOUSING | 1005-1413 | |
| 7 | 17A-06-17970 | BULB¤ 70W | 1414-@ | |
| 22W-06-12170 | BULB | 1005-1413 | ||
| 7A | 17A-06-17980 | SLEEVE | 1414-@ | |
| 8 | 22W-06-12290 | CUSHION | 1005-1414 | |
| 9 | 203-06-56190 | RING | 1005-1414 | |
| 10 | 203-06-56180 | RING | 1005-1414 | |
| 11 | 203-06-56150 | WIRE ASS'Y | 1005-1414 | |
| 12 | 203-06-56171 | PLATE | 1005-1414 | |
| 13 | 22W-06-12160 | SEAT | 1005-1414 | |
| 14 | 22W-06-12140 | BOLT | 1005-1414 | |
| 15 | 22W-06-12150 | WASHER | 1005-1414 | |
| 16 | 8221-06-1160 | PLATE | 1005-1500 | |
| 17 | 01010-81225 | BOLT | 1005-@ | |
| 18 | 01643-31232 | WASHER | 1005-@ | |
| 19 | 08036-01014 | CLIP | 1005-@ | |
| 20 | 01010-81220 | BOLT | 1005-1500 | |
| 21 | 01643-31232 | WASHER | 1005-1500 | |
| 22 | 08036-01814 | CLIP | 1005-@ | |
| 23 | 08055-00212 | CONNECTOR | 1005-@ | |
| 24 | 08055-00070 | PLUG | 1005-@ | |
| 25 | 08055-00230 | HOLDER | 1005-@ |
