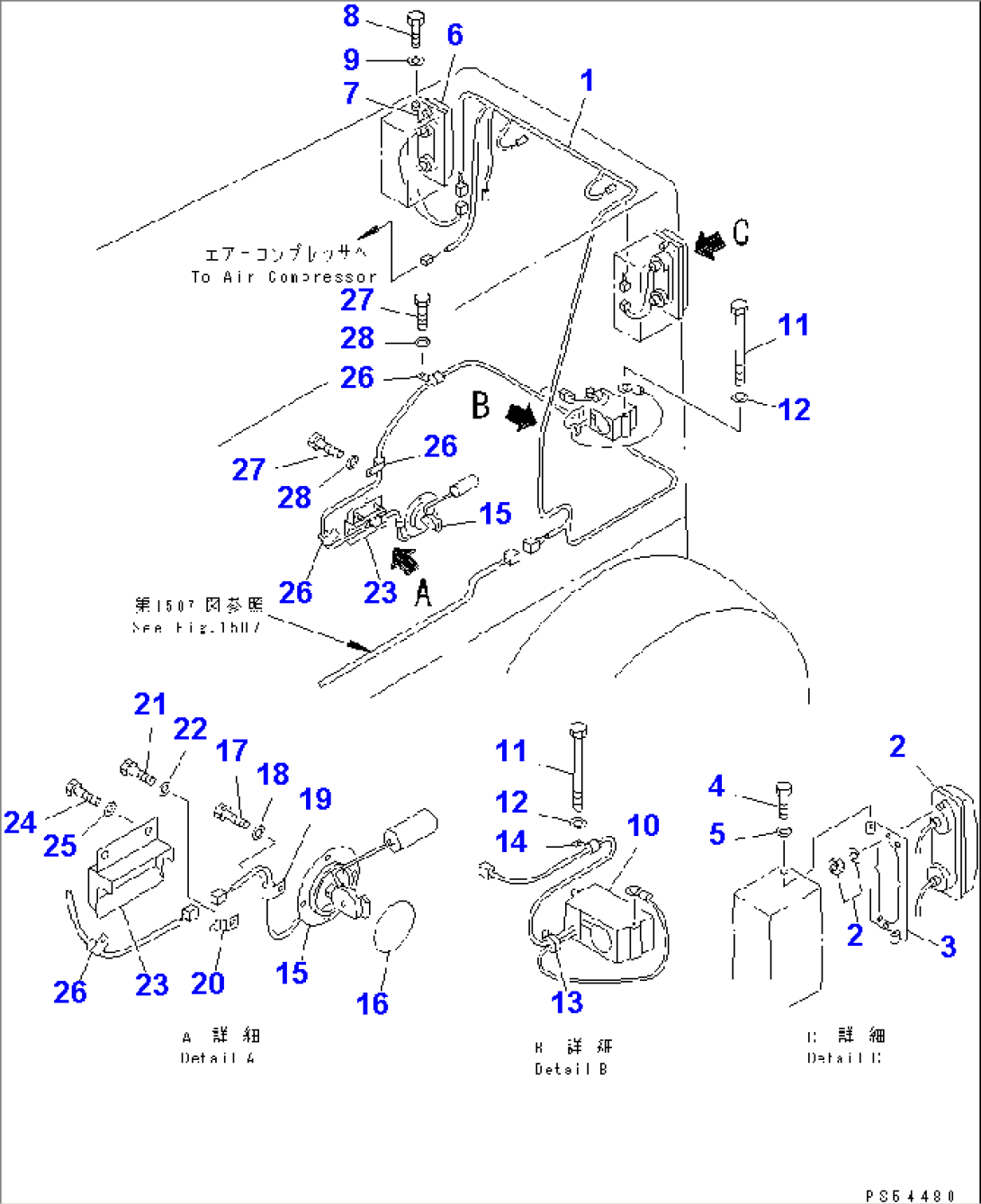

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 235-06-36470 | HARNESS | 12099-@ | |
| 1 | 235-06-31132 | HARNESS | 11014-12098 | |
| 1 | 235-06-31131 | HARNESS | 11001-11013 | |
| 2 | 238-06-18330 | COMBINATION LAMP,REAR, L.H. | 11001-@ | |
| 2 | 237-06-13360 | LENS | 11001-@ | |
| 2 | 08105-02420 | BULB, 25W | 11001-@ | |
| 2 | 08111-02430 | BULB, 3W | 11001-@ | |
| 2 | 08104-02420 | BULB, 25/10W | 11001-@ | |
| 3 | 235-06-15230 | PLATE,L.H. | 11001-@ | |
| 4 | 01010-51016 | BOLT | 11001-@ | |
| 5 | 01643-31032 | WASHER | 11001-@ | |
| 6 | 238-06-18320 | COMBINATION LAMP,REAR, R.H. | 11001-@ | |
| 6 | 237-06-13360 | LENS | 11001-@ | |
| 6 | 08105-02420 | BULB, 25W | 11001-@ | |
| 6 | 08111-02430 | BULB, 3W | 11001-@ | |
| 6 | 08104-02420 | BULB, 25/10W | 11001-@ | |
| 7 | 235-06-15240 | PLATE,R.H. | 11001-@ | |
| 8 | 01010-81016 | BOLT | 11001-@ | |
| 9 | 01643-31032 | WASHER | 11001-@ | |
| 10 | 08164-00000 | BUZZER,BACK | 11001-@ | |
| 11 | 235-06-15150 | BOLT | 11001-@ | |
| 12 | 01643-30823 | WASHER | 11001-@ | |
| 13 | 08034-00310 | BAND | 11001-@ | |
| 14 | 08036-00814 | CLIP | 11001-12101 | |
| 15 | 7861-92-4800 | SENSOR,FUEL LEVEL | 11001-@ | |
| 16 | 07000-12085 | O-RING | 11001-@ | |
| 17 | 01010-81020 | BOLT | .-@ | |
| 17 | \0\01010-51020 | BOLT | 11001-. | |
| 18 | 01643-31032 | WASHER | 11001-@ | |
| 19 | 08036-00814 | CLIP | 11001-12101 | |
| 20 | 08053-01510 | CLIP | 11001-@ | |
| 21 | 01010-81016 | BOLT | .-@ | |
| 21 | \0\01010-51016 | BOLT | 11001-. | |
| 22 | 01643-31032 | WASHER | 11001-@ | |
| 23 | 235-06-35170 | COVER | 11001-@ | |
| 24 | 01010-81016 | BOLT | .-@ | |
| 24 | \0\01010-51016 | BOLT | 11001-@ | |
| 25 | 01643-31032 | WASHER | 11001-@ | |
| 26 | 08036-00814 | CLIP | 11001-12101 | |
| 27 | 01010-81016 | BOLT | .-@ | |
| 27 | \0\01010-51016 | BOLT | 11001-. | |
| 28 | 01643-31032 | WASHER | 11001-@ |
