| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 201-06-71280 | WORK LAMP ASS'Y | 7001- | |
| 421-06-23330 | BULB¤ 70W | 7001- | ||
| 2 | 09415-02512 | CAP | 7001- | |
| 3 | 569-85-81110 | COVER | 7001- | |
| 4 | 01435-01220 | BOLT | 7001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd465 7 s/n 7001 up
- Electrical system
- Electrical system (side lamp) (with payload meter)
Поиск по каталогу

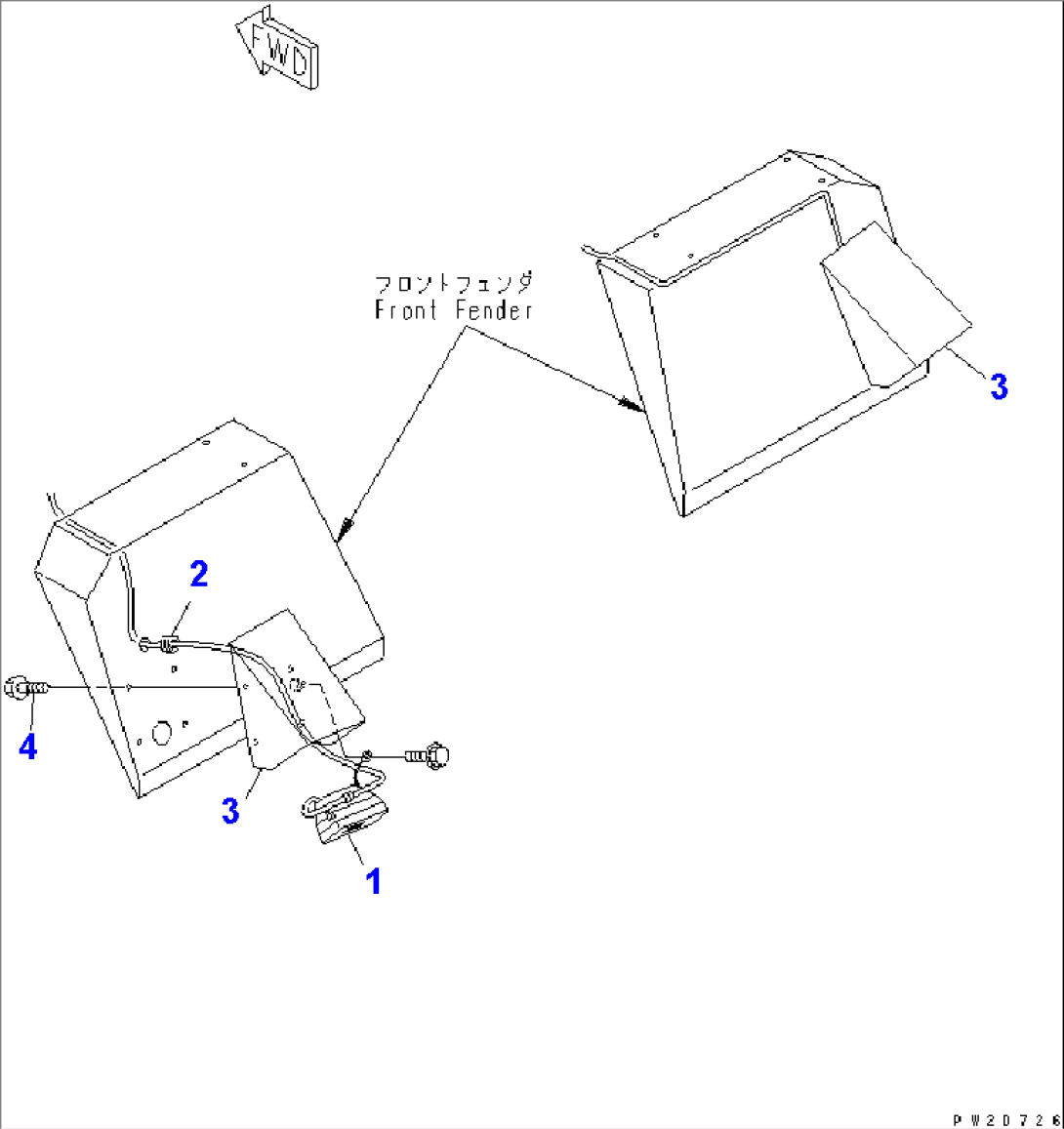

ELECTRICAL SYSTEM (SIDE LAMP) (WITH PAYLOAD METER)
