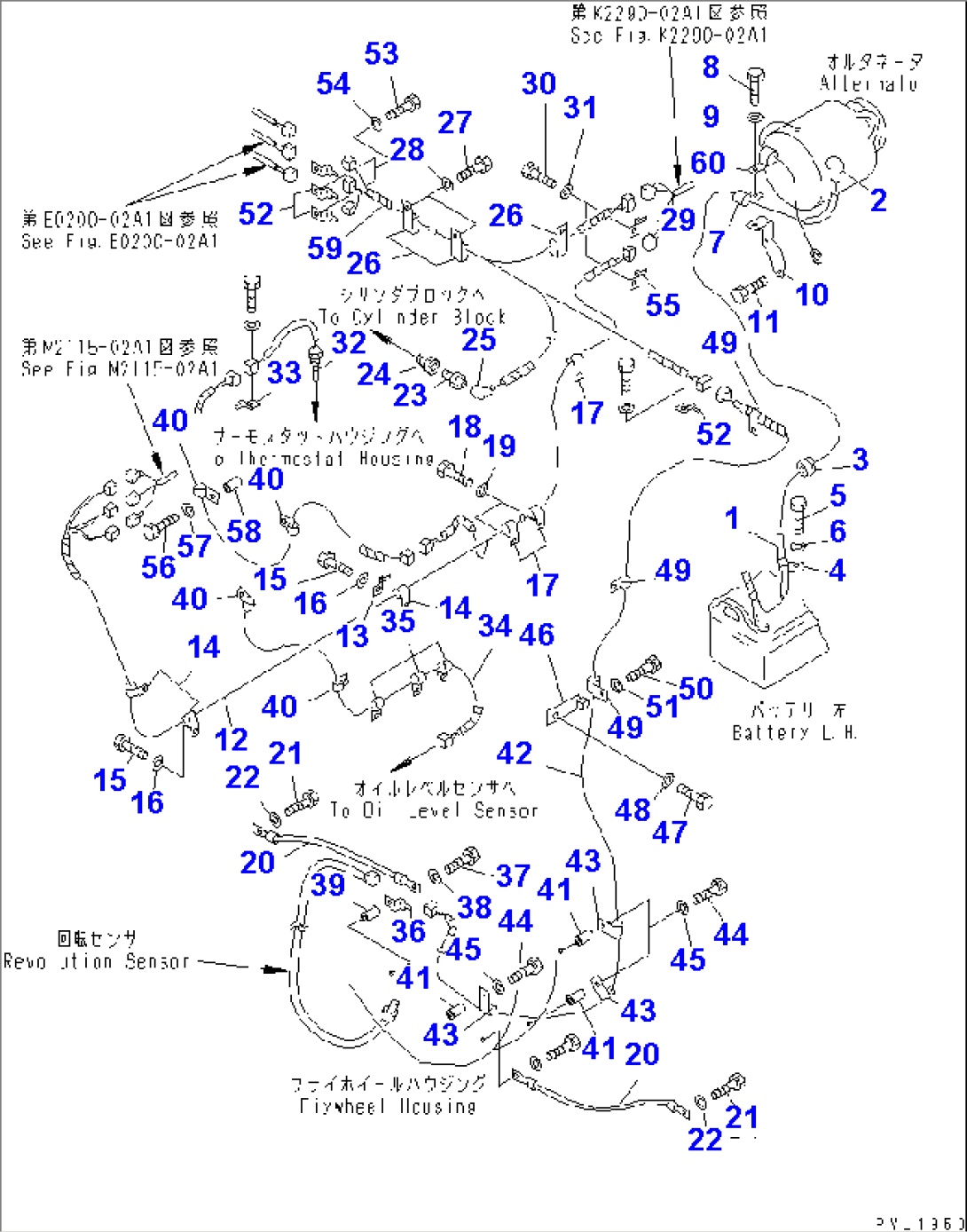

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-06-17730 | CABLE | 10012- | |
| 2 | 08038-02027 | CAP | 10012- | |
| 3 | 08037-02512 | GROMMET | 10012- | |
| 4 | 08036-01414 | CLIP | 10012- | |
| 5 | 01010-81220 | BOLT | 10012- | |
| 6 | 01643-31232 | WASHER | 10012- | |
| 7 | 04434-51512 | CLIP | 10012- | |
| 8 | 01010-81225 | BOLT | 10012- | |
| 9 | 01643-31232 | WASHER | 10012- | |
| 10 | 19M-06-18310 | BRACKET | 10012- | |
| 11 | 01010-81255 | BOLT | 10012- | |
| 12 | 19M-06-27560 | WIRING HARNESS | 10012- | |
| 13 | 08053-01512 | CLIP | 10012- | |
| 14 | 08036-91814 | CLIP | 10012- | |
| 15 | 01010-81220 | BOLT | 10012- | |
| 16 | 01643-31232 | WASHER | 10012- | |
| 17 | 08036-91814 | CLIP | 10012- | |
| 18 | 01010-81220 | BOLT | 10012- | |
| 19 | 01643-31232 | WASHER | 10012- | |
| 20 | 08028-56055 | CABLE | 10012- | |
| 21 | 01010-81220 | BOLT | 10012- | |
| 22 | 01643-31232 | WASHER | 10012- | |
| 23 | 08073-00505 | SWITCH,ENGINE OIL PRESSURE | 10012- | |
| 24 | 202-62-21330 | BUSHING | 10012- | |
| 25 | 08038-10519 | CAP | 10012- | |
| 26 | 195-01-14450 | CLIP | 10012- | |
| 27 | 01010-81220 | BOLT | 10012- | |
| 28 | 01643-31232 | WASHER | 10012- | |
| 29 | 08053-01512 | CLIP | 10012- | |
| 30 | 01010-81220 | BOLT | 10012- | |
| 31 | 01643-31232 | WASHER | 10012- | |
| 32 | 7861-92-3320 | SENSOR,ENGINE WATER TEMPERATURE | 10012- | |
| 33 | 08053-01512 | CLIP | 10012- | |
| 34 | 19M-06-18120 | WIRING HARNESS | 10026- | |
| 34 | 19M-06-28120 | WIRING HARNESS | 10012-10025 | |
| 35 | 21T-38-12270 | CLIP | 10012- | |
| 36 | 08053-01512 | CLIP | 10012- | |
| 37 | 01010-81220 | BOLT | 10012- | |
| 38 | 01643-31232 | WASHER | 10012- | |
| 39 | 195-33-11220 | SPACER | 10012- | |
| 40 | 21T-38-12270 | CLIP | 10012- | |
| 41 | 195-33-11220 | SPACER | 10012- | |
| 42 | 19M-06-28420 | WIRING HARNESS | 10012- | |
| 43 | 08036-91014 | CLIP | 10012- | |
| 44 | 01010-81260 | BOLT | 10012- | |
| 45 | 01643-31232 | WASHER | 10012- | |
| 46 | 195-49-37150 | BRACKET | 10012- | |
| 47 | 01010-61630 | BOLT | 10012- | |
| 48 | 01643-31645 | WASHER | 10012- | |
| 49 | 08036-91014 | CLIP | 10012- | |
| 50 | 01010-81220 | BOLT | 10012- | |
| 51 | 01643-31232 | WASHER | 10012- | |
| 52 | 08053-01512 | CLIP | 10012- | |
| 53 | 01010-81220 | BOLT | 10012- | |
| 54 | 01643-31232 | WASHER | 10012- | |
| 55 | 08053-00912 | CLIP | 10012- | |
| 56 | 01010-81060 | BOLT | 10012- | |
| 57 | 01643-31032 | WASHER | 10012- | |
| 58 | 113-03-21170 | SPACER | 10012- | |
| 59 | 19M-06-27650 | WIRING HARNESS | 10012- | |
| 60 | 08036-00814 | CLIP | 10012- |
