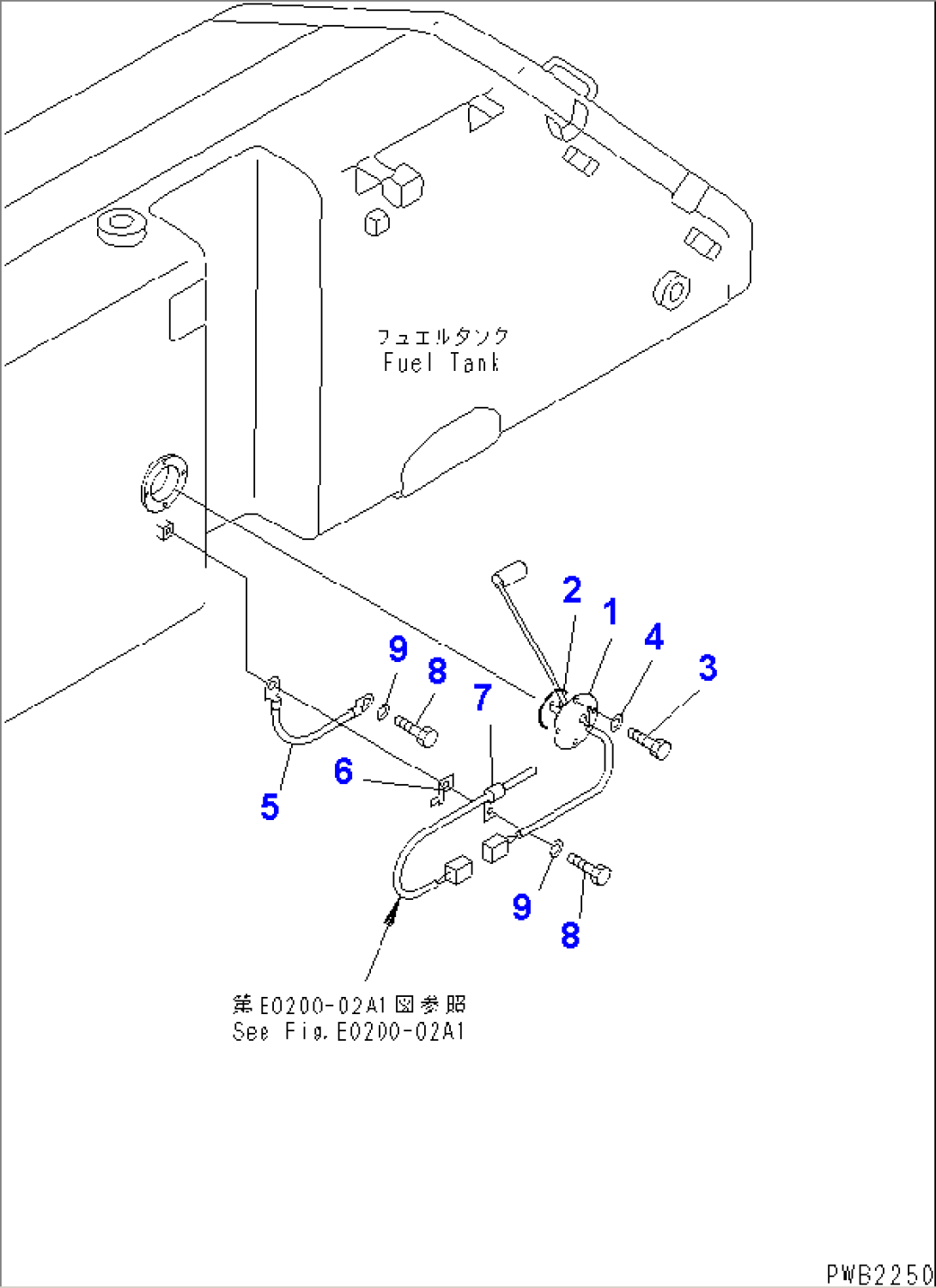

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-92-4930 | SENSOR,FUEL LEVEL | 10012- | |
| 2 | 07000-12085 | O-RING | 10012- | |
| 3 | 01010-81020 | BOLT | 10012- | |
| 4 | 01643-31032 | WASHER | 10012- | |
| 5 | 08028-56055 | CABLE | 10012- | |
| 6 | 08053-01512 | CLIP | 10012- | |
| 7 | 08036-01014 | CLIP | 10012- | |
| 8 | 01010-81220 | BOLT | 10012- | |
| 9 | 01643-31232 | WASHER | 10012- |
