| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 273-06-64120 | CABLE | 31001- | |
| 2 | 6136-81-5210 | ADAPTER | 31001- | |
| 3 | 01641-01016 | WASHER | 31001- | |
| 4 | 08036-01814 | CLIP | 31001- | |
| 5 | 01010-81016 | BOLT | 31001- | |
| 6 | 01643-31032 | WASHER | 31001- |
- Главная
- Каталог запчастей
- Каток
- Jv100wp 2t s/n 31001 up
- Engine related parts and electrical system
- Electrical system (tachometer cable)
Поиск по каталогу

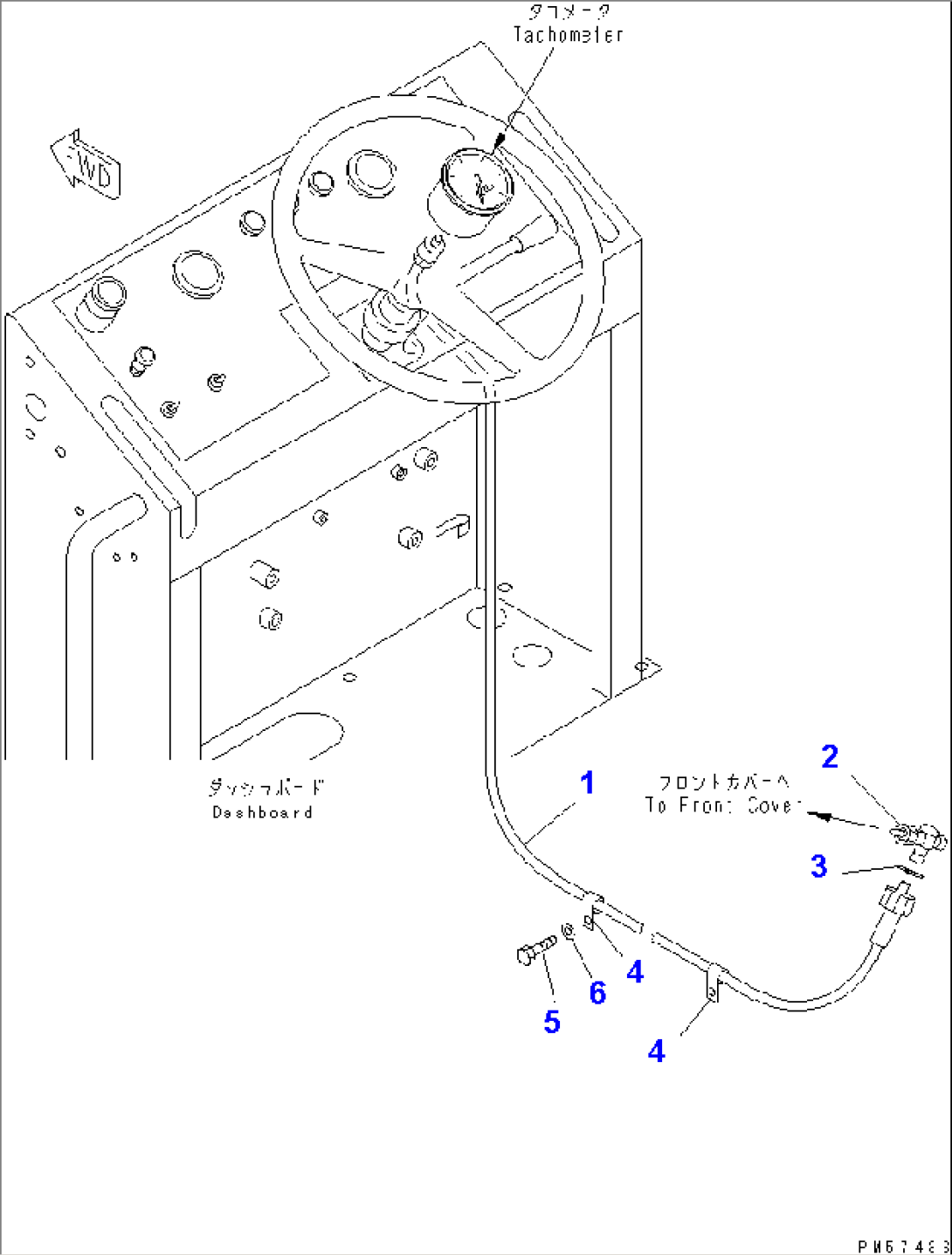

ELECTRICAL SYSTEM (TACHOMETER CABLE)
