| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7821-23-8002 | CONTROLLER,TRANSMISSION | 12115- | |
| 2 | 01010-80885 | BOLT | 12021- | |
| 3 | 01643-30823 | WASHER | 12021- | |
| 4 | 235-06-35663 | WIRING HARNESS | 12503- | |
| 5 | 7861-92-3320 | SENSOR,TRANSMISSION OIL | 12021- |
- Главная
- Каталог запчастей
- Автогрейдеры
- Gd825a 2 s/n 11001 up
- Engine related parts and electrical system
- Electrical system (transmission control line)(#12503 )
Поиск по каталогу

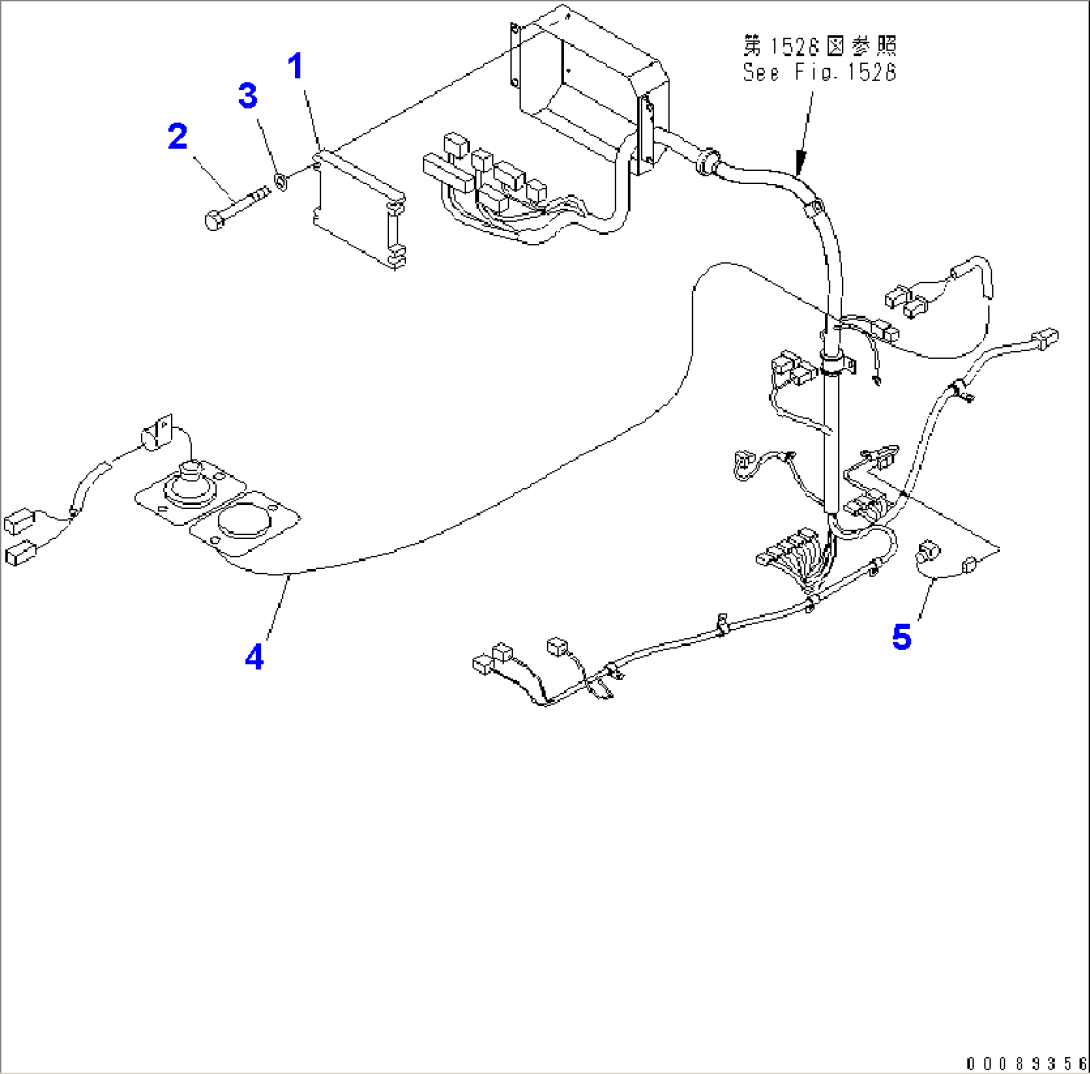

ELECTRICAL SYSTEM (TRANSMISSION CONTROL LINE)(#12503-)
