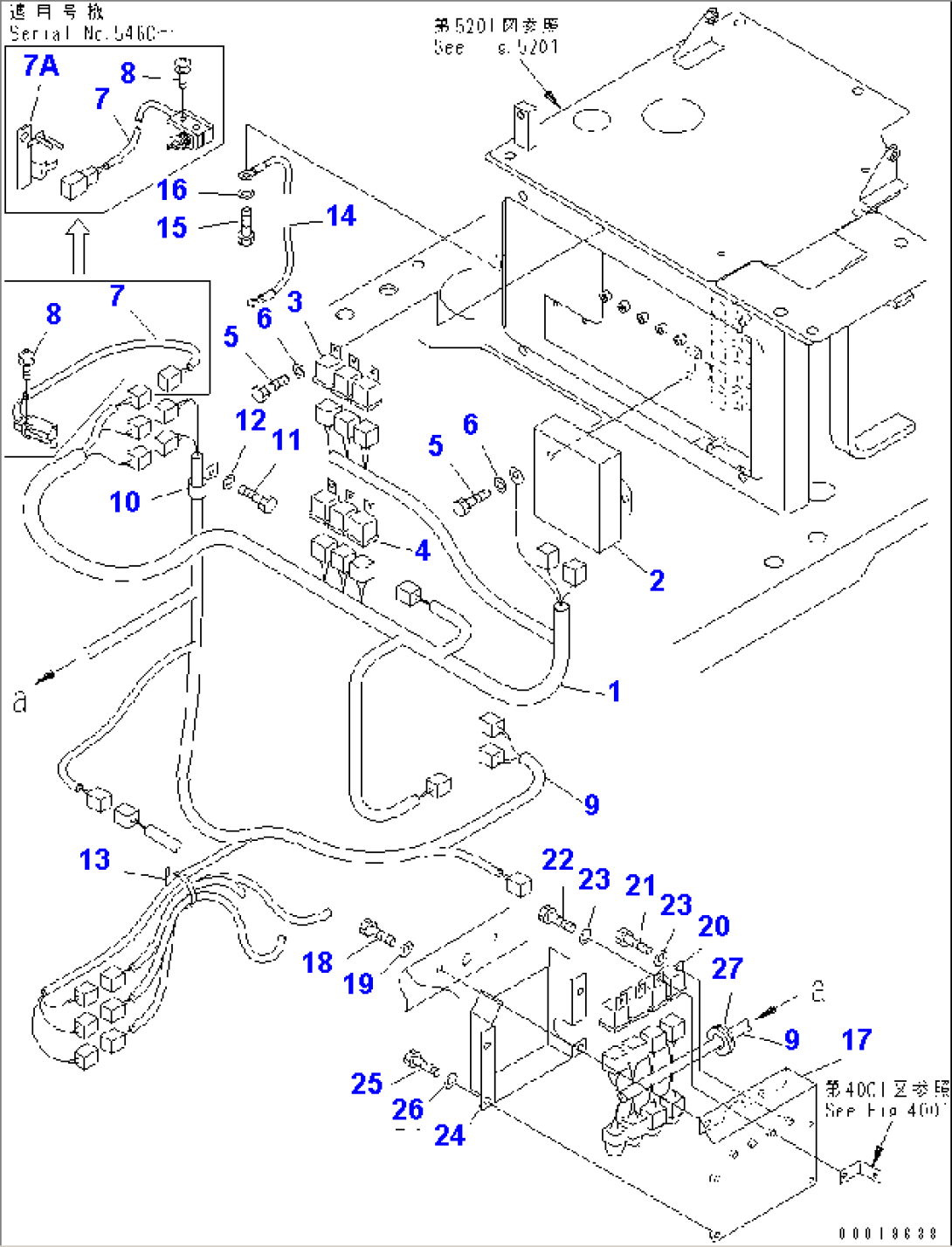

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-06-31252 | HARNESS,TRANSMISSION | 5001-5999 | |
| 08020-10000 | DIODE | 5001-5999 | ||
| 2 | 23D-06-35103 | CONTROLLER,TRANSMISSION | 5001-5999 | |
| (\2\23D-06-35101) | CONTROLLER,TRANSMISSION | (5001-5088) | ||
| 3 | 569-06-61970 | RELAY | 5001-5999 | |
| 4 | 569-06-61960 | RELAY | 5001-5999 | |
| 5 | 01010-80612 | BOLT | 5001-5999 | |
| 6 | 01643-30623 | WASHER | 5001-5999 | |
| 7 | 23D-06-32450 | SWITCH | 5001-@ | |
| (\2\23D-06-33660) | SWITCH,IDLING | (5001-5459) | ||
| (23D-06-32450{23D-06-32420¤23D-06-32460)} | ||||
| 7A | 23D-06-32420 | BRACKET | 5460-@ | |
| 8 | 01023-10316 | SCREW | 5001-@ | |
| 9 | 23D-06-31292 | HARNESS,TRANSMISSION | 5001-5999 | |
| 08020-10000 | DIODE | 5001-5999 | ||
| 10 | 08036-02514 | CLIP | 5001-@ | |
| 11 | 01010-81016 | BOLT | 5001-@ | |
| 12 | 01643-31032 | WASHER | 5001-@ | |
| 13 | 08034-00519 | BAND | 5001-@ | |
| 14 | 23D-06-31370 | CABLE,EARTH | 5001-@ | |
| 15 | 01010-81020 | BOLT | 5001-@ | |
| 16 | 01643-31032 | WASHER | 5001-@ | |
| 17 | 23D-06-32350 | BRACKET | 5001-5999 | |
| 18 | 01010-80820 | BOLT | 5001-5999 | |
| 19 | 01643-30823 | WASHER | 5001-5999 | |
| 20 | 569-06-61960 | RELAY | 5001-5999 | |
| 21 | 01010-80612 | BOLT | 5001-5999 | |
| 22 | 20Y-43-15460 | BOLT | 5031-5999 | |
| 01010-80612 | BOLT | 5001-5030 | ||
| 23 | 01643-30623 | WASHER | 5001-5999 | |
| 24 | 23D-06-32360 | COVER | 5001-5999 | |
| 25 | 01010-80816 | BOLT | 5001-5999 | |
| 26 | 01643-30823 | WASHER | 5001-5999 | |
| 27 | 08037-02512 | GROMMET | 5001-5999 |
