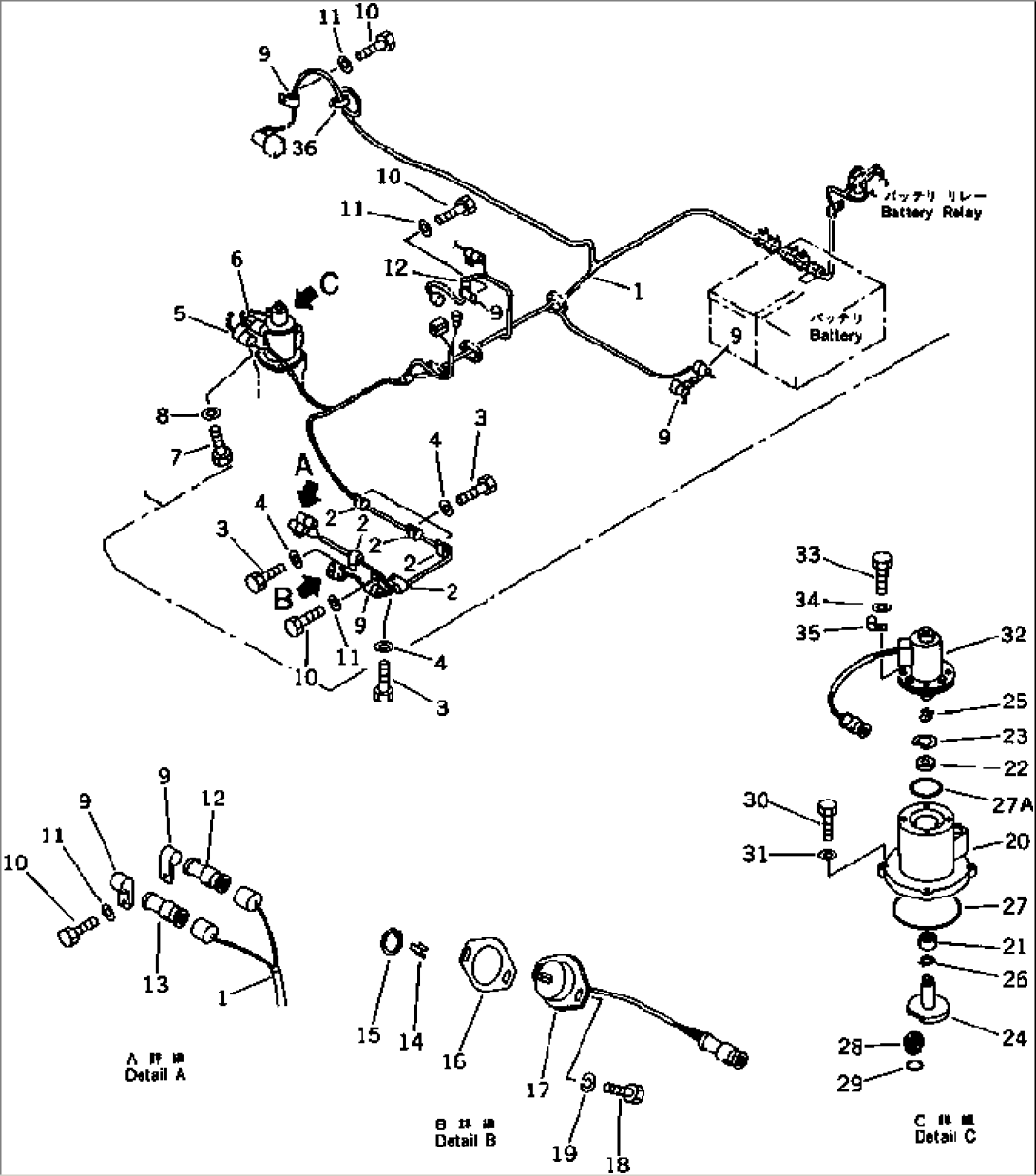

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 202-966-1521 | WIRING HARNESS | 10001- | |
| 2 | 08036-01214 | CLIP | 10001- | |
| 3 | 01010-51225 | BOLT | 10001- | |
| 4 | 01643-31232 | WASHER | 10001- | |
| 5 | 195-06-41840 | CLIP | 10001- | |
| 6 | 195-06-41830 | CLIP | 10001- | |
| 7 | 01010-51225 | BOLT | 10001- | |
| 8 | 01643-31232 | WASHER | 10001- | |
| 9 | 195-06-41820 | CLIP | 10001- | |
| 10 | 01010-51225 | BOLT | 10001- | |
| 11 | 01643-31232 | WASHER | 10001- | |
| 12 | 195-06-41760 | CONNECTOR | 10001- | |
| 13 | 195-06-41740 | PLUG | 10001- | |
| 14 | 202-966-1590 | SPRING | 10001- | |
| 15 | 04064-01410 | RING | 10001- | |
| 16 | 142-06-14511 | GASKET | 10247- | |
| \0\142-06-14510 | GASKET | 10001-10246 | ||
| 17 | 7861-91-4110 | POTENTIOMETER | 10001- | |
| 18 | 01010-50612 | BOLT | 10001- | |
| 19 | 01602-20619 | WASHER,SPRING | 10001- | |
| 20 | 205-966-3253 | COVER | 10123- | |
| (\4\205-966-3252) | COVER | 10001-10122 | ||
| (205-966-3253{205-966-3261¤} | ||||
| 205-966-3271) | ||||
| 21 | 06120-02016 | BEARING | 10001- | |
| 22 | 22W-15-16330 | SEAL,OIL | 10001- | |
| 23 | 04065-03515 | RING,SNAP | 10001- | |
| 24 | 205-966-3261 | SHAFT | 10123- | |
| (\4\205-966-3260) | SHAFT | 10001-10122 | ||
| (205-966-3261{205-966-3253¤} | ||||
| 205-966-3271) | ||||
| 25 | 142-43-13180 | SPRING | 10001- | |
| 26 | 04064-01610 | RING,SNAP | 10001- | |
| 27 | 07000-02115 | O-RING | 10001- | |
| 27A | 07000-02055 | O-RING | 10001- | |
| 28 | 205-966-3271 | PLUG | 10123- | |
| (\4\205-966-3270) | PLUG | 10001-10122 | ||
| (205-966-3271{205-966-3253¤} | ||||
| 205-966-3261) | ||||
| 29 | 07000-02055 | O-RING | 10001- | |
| 30 | 01010-50835 | BOLT | 10001- | |
| 31 | 01643-30823 | WASHER | 10001- | |
| 32 | 7861-91-2700 | SENSOR ASS'Y | 10001- | |
| 33 | 01010-50825 | BOLT | 10001- | |
| 34 | 01643-30823 | WASHER | 10001- | |
| 35 | 08036-01214 | CLIP | 10001- | |
| 36 | 08034-00310 | BAND | 10054- |
