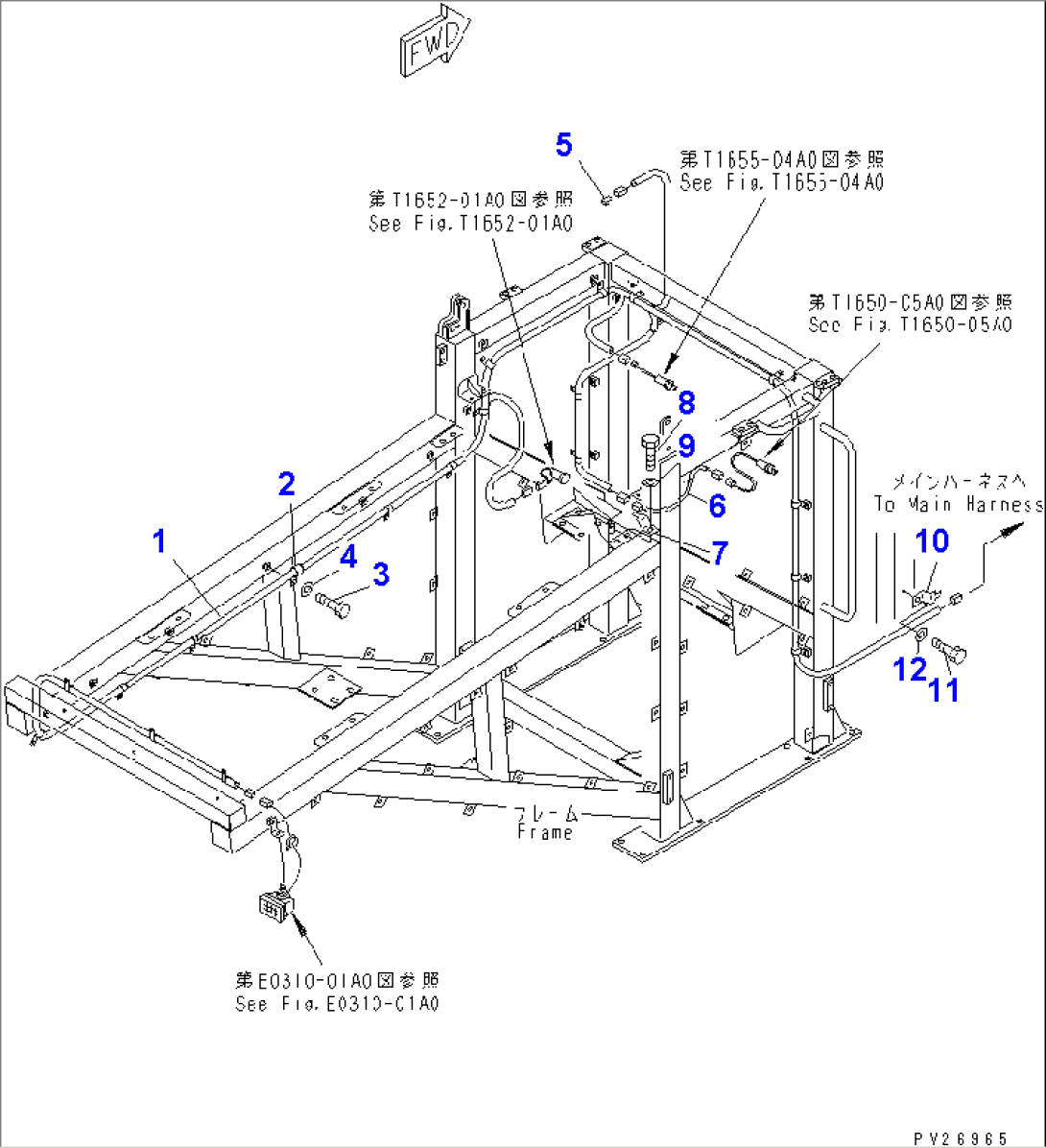

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 8288-06-1221 | WIRING HARNESS | 1001- | |
| 2 | 08036-01014 | CLIP | 1001- | |
| 3 | 01010-81220 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 8255-06-1970 | CONNECTOR | 1001- | |
| 6 | 8288-06-1191 | WIRING HARNESS | 1001- | |
| 7 | 08053-01512 | CLIP | 1001- | |
| 8 | 01010-81220 | BOLT | 1001- | |
| 9 | 01643-31232 | WASHER | 1001- | |
| 10 | 08053-00912 | CLIP | 1001- | |
| 11 | 01010-81220 | BOLT | 1001- | |
| 12 | 01643-31232 | WASHER | 1001- |
