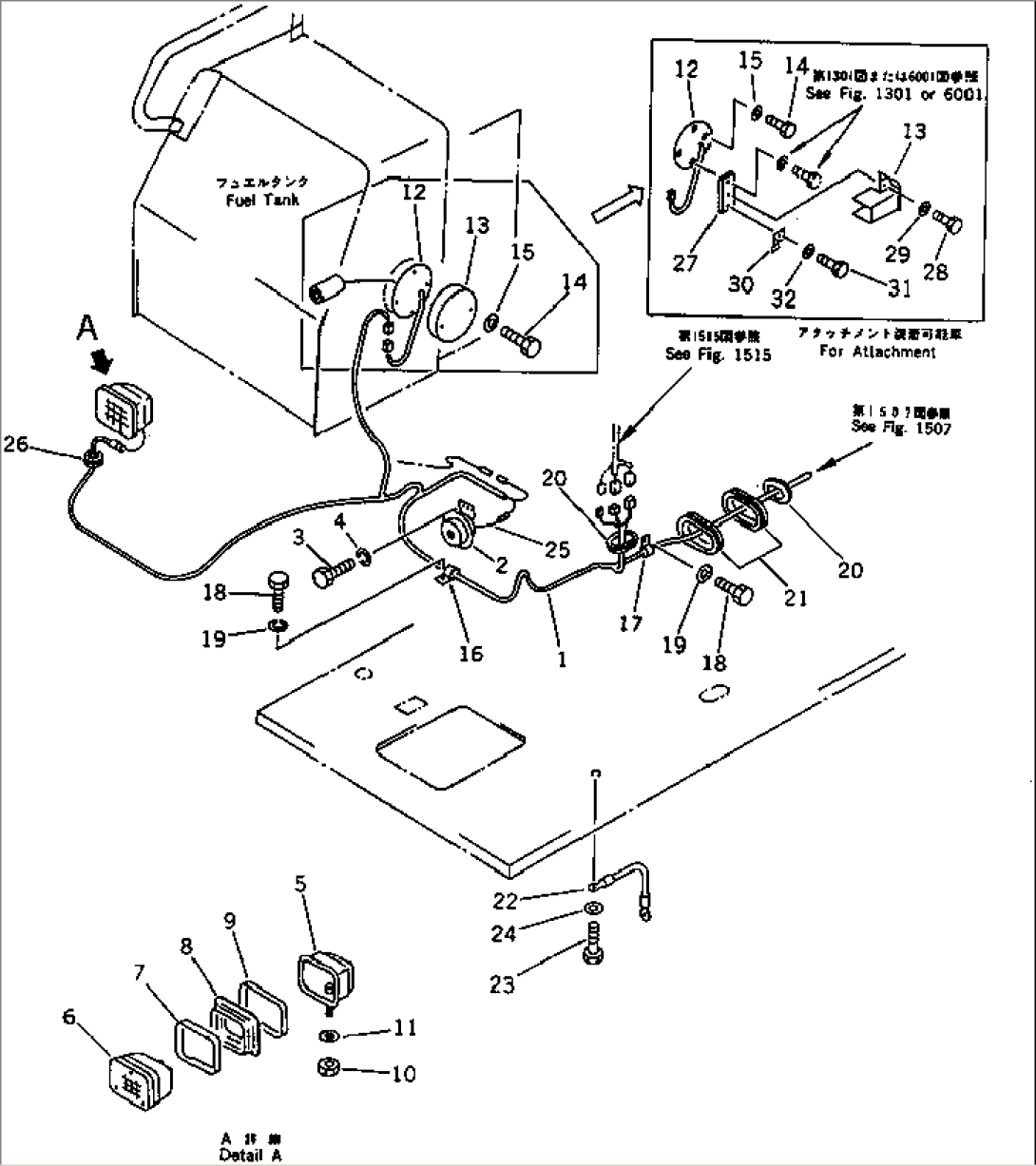

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | (201-06-63120) | WIRE ASS'Y,(SEE FIG.1505) | 1001- | |
| 2 | 08160-52400 | HORN | 1001- | |
| 3 | 01010-50816 | BOLT | 1001- | |
| 4 | 01602-20825 | WASHER,SPRING | 1001- | |
| 203-06-56140 | LAMP ASS'Y | 1001- | ||
| 5 | \6\ | HOUSING | 1001- | |
| 6 | 22W-06-12170 | BULB | 1001- | |
| 7 | 203-06-56180 | RING | 1001- | |
| 8 | 22W-06-12290 | CUSHION | 1001- | |
| 9 | 203-06-56190 | RING | 1001- | |
| 10 | 01582-11411 | NUT | 1001- | |
| 11 | 01643-31445 | WASHER | 1001- | |
| 12 | (7861-92-4800) | SENSOR,FUEL LEVEL(SEE FIG.1301OR6001) | 1001- | |
| 13 | 201-06-62310 | COVER | 1001- | |
| 13 | 201-973-6260 | COVER,(FOR ATTACHMENT) | 1001- | |
| 14 | 01010-51065 | BOLT | 1001- | |
| 14 | 01010-51016 | BOLT,(FOR ATTACHMENT) | 1001- | |
| 15 | 01643-31032 | WASHER | 1001- | |
| 16 | 08036-01414 | CLIP | 1001- | |
| 17 | 08036-02514 | CLIP | 1001- | |
| 18 | 01010-51016 | BOLT | 1001- | |
| 19 | 01643-31032 | WASHER | 1001- | |
| 20 | 150-95-27160 | GROMMET | 1001- | |
| 21 | 201-06-61221 | GROMMET | 1128- | |
| 21 | 201-06-61220 | GROMMET | 1001-1127 | |
| 22 | 20X-06-21170 | WIRE | 1001- | |
| 23 | 01010-51016 | BOLT | 1001- | |
| 24 | 01643-31032 | WASHER | 1001- | |
| 25 | 201-06-63140 | WIRE | 1001- | |
| 26 | 08037-02512 | GROMMET | 1001- | |
| 27 | 201-973-6250 | PLATE,(FOR ATTACHMENT) | 1001- | |
| 28 | 01010-51020 | BOLT,(FOR ATTACHMENT) | 1001- | |
| 29 | 01643-31032 | WASHER,(FOR ATTACHMENT) | 1001- | |
| 30 | 08053-01512 | CLIP,(FOR ATTACHMENT) | 1090- | |
| 30 | \0\7821-92-5110 | BRACKET,(FOR ATTACHMENT) | 1001-1089 | |
| 31 | 01010-51020 | BOLT,(FOR ATTACHMENT) | 1001- | |
| 32 | 01643-31032 | WASHER,(FOR ATTACHMENT) | 1001- |
