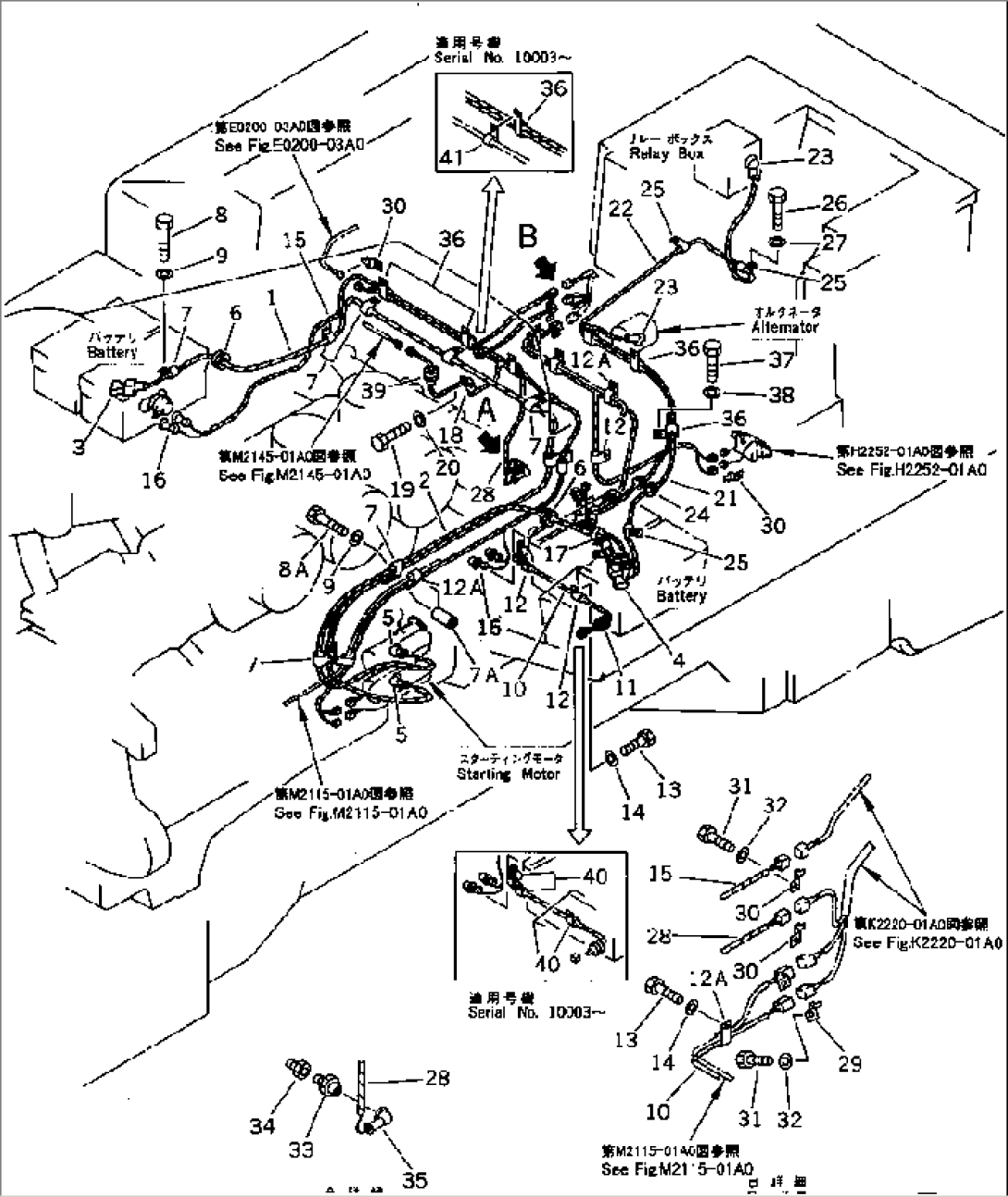

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-06-11650 | WIRE ASS'Y | 10001-@ | |
| 2 | 198-06-41140 | WIRING HARNESS | 10001-@ | |
| 3 | 08038-22511 | CAP | 10001-@ | |
| 4 | 198-06-12760 | COVER | 10001-@ | |
| 5 | 08038-12027 | CAP | 10001-@ | |
| 6 | 08037-03614 | GROMMET | 10001-@ | |
| 7 | 08035-03014 | CLIP | 10001-10037 | |
| 7A | 175-40-22540 | SPACER | 10001-10037 | |
| 8 | 01010-81220 | BOLT | 10001-@ | |
| 8A | 01010-81270 | BOLT | 10001-10037 | |
| 9 | 01643-31232 | WASHER | 10001-10037 | |
| 10 | 19M-06-17671 | WIRING HARNESS | 10001-@ | |
| 11 | 08037-02512 | GROMMET | 10001-@ | |
| 12 | 08036-01814 | CLIP | 10003-@ | |
| 08036-01814 | CLIP | 10001-10002 | ||
| 12A | 209-06-12190 | CLIP | 10001-@ | |
| 13 | 01010-81220 | BOLT | 10001-@ | |
| 14 | 01643-31232 | WASHER | 10001-@ | |
| 15 | 19M-06-17990 | WIRING HARNESS | 10001-@ | |
| 16 | 08038-00218 | CAP | 10001-@ | |
| 17 | 08034-00414 | BAND | 10001-@ | |
| 18 | 08036-01014 | CLIP | 10001-@ | |
| 19 | 01010-81220 | BOLT | 10001-@ | |
| 20 | 01643-31232 | WASHER | 10001-@ | |
| 21 | 19M-06-17730 | CABLE | 10001-@ | |
| 22 | 19M-06-17740 | CABLE | 10001-@ | |
| 23 | 08038-02027 | CAP | 10001-@ | |
| 24 | 08037-02512 | GROMMET | 10001-@ | |
| 08036-01414 | CLIP | 10001-10037 | ||
| 26 | 01010-81220 | BOLT | 10001-@ | |
| 27 | 01643-31232 | WASHER | 10001-@ | |
| 28 | 19M-06-17651 | WIRING HARNESS | 10001-@ | |
| 29 | 08053-00912 | CLIP | 10001-@ | |
| 30 | 08053-01512 | CLIP | 10001-@ | |
| 31 | 01010-81220 | BOLT | 10001-@ | |
| 32 | 01643-31232 | WASHER | 10001-@ | |
| 33 | 08073-00505 | SWITCH,ENGINE OIL PRESSURE | 10001-@ | |
| 34 | 202-62-21330 | BUSHING | 10001-@ | |
| 35 | 08038-10519 | CAP | 10001-@ | |
| 36 | 195-01-14450 | CLIP | 10001-10035 | |
| 37 | 01010-81220 | BOLT | 10001-@ | |
| 38 | 01643-31232 | WASHER | 10001-@ | |
| 39 | 21T-54-71980 | GROMMET | 10001-@ | |
| 40 | 08036-01014 | CLIP | 10003-@ | |
| 41 | 08036-01414 | CLIP | 10003-@ |
