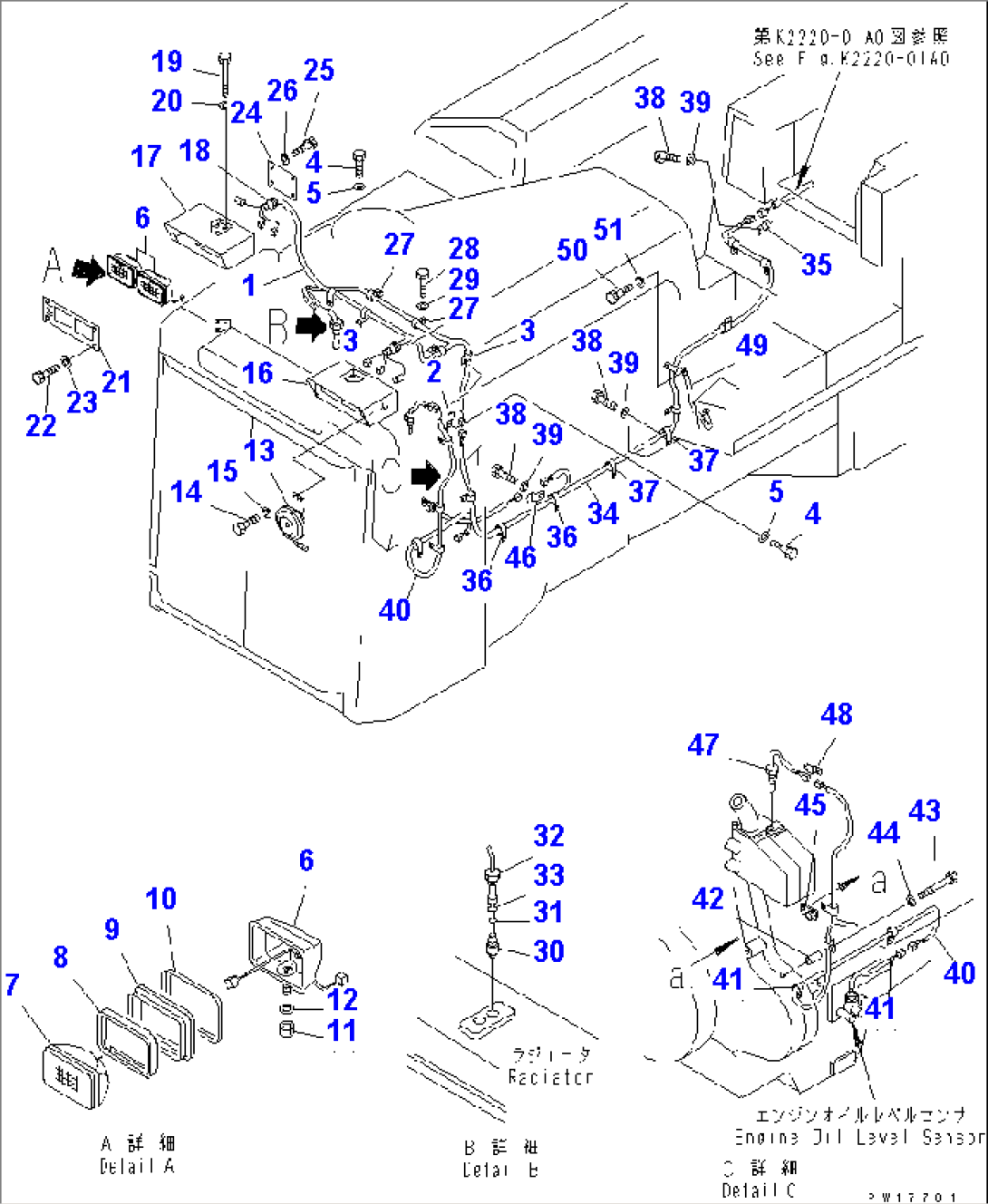

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-06-27530 | WIRING HARNESS | 10017-10042 | |
| 1 | 19M-06-17531 | WIRING HARNESS | 10001-10011 | |
| 2 | 08053-01512 | CLIP | 10001-@ | |
| 3 | 08036-01414 | CLIP | 10001-@ | |
| 4 | 01010-81220 | BOLT | 10001-@ | |
| 5 | 01643-31232 | WASHER | 10001-@ | |
| 6 | 203-06-56140 | LAMP ASS'Y | 10001-@ | |
| 7 | 22W-06-12170 | BULB | 10001-@ | |
| 8 | 203-06-56180 | RING | 10001-@ | |
| 9 | 22W-06-12290 | CUSHION | 10001-@ | |
| 10 | 203-06-56190 | RING | 10001-@ | |
| 11 | 01582-11411 | NUT | 10001-@ | |
| 12 | 01643-31445 | WASHER | 10001-@ | |
| 13 | 17A-06-11710 | HORN | 10018-10042 | |
| 13 | 19M-06-18220 | HORN | 10001-10017 | |
| 14 | 01010-80820 | BOLT | 10001-@ | |
| 15 | 01602-20825 | WASHER,SPRING | 10001-@ | |
| 16 | 19M-06-14212 | CASE,L.H. | 10001-10042 | |
| 17 | 19M-06-14222 | CASE,R.H. | 10001-10042 | |
| 18 | 08037-02512 | GROMMET | 10001-10042 | |
| 19 | 154-61-16390 | BOLT, 230MM | 10001-10042 | |
| 20 | 01643-31232 | WASHER | 10001-@ | |
| 21 | 19M-06-14132 | PLATE | 10001-10042 | |
| 22 | 195-54-43260 | BOLT | 10001-@ | |
| 23 | 205-06-62460 | WASHER | 10001-@ | |
| 24 | 19M-06-17980 | PLATE | 10001-10042 | |
| 25 | 01010-81220 | BOLT | 10001-10042 | |
| 26 | 01643-31232 | WASHER | 10001-10042 | |
| 27 | 08036-01014 | CLIP | 10001-@ | |
| 28 | 01010-81220 | BOLT | 10001-@ | |
| 29 | 01643-31232 | WASHER | 10001-@ | |
| 30 | 281-06-13942 | SWITCH,RADIATOR WATER LEVEL | 10001-@ | |
| 31 | 07002-21023 | O-RING | 10001-@ | |
| 32 | 19M-06-13440 | BRACKET | 10001-@ | |
| 33 | 07002-23634 | O-RING | 10001-@ | |
| 34 | 19M-06-17562 | WIRING HARNESS | 10001-10042 | |
| 35 | 08053-00912 | CLIP | 10001-@ | |
| 36 | 08036-01014 | CLIP | 10001-@ | |
| 37 | 08036-01814 | CLIP | 10001-@ | |
| 38 | 01010-81220 | BOLT | 10001-@ | |
| 39 | 01643-31232 | WASHER | 10001-@ | |
| 40 | 19M-06-18120 | WIRING HARNESS | 10026-@ | |
| 40 | 19M-06-28120 | WIRING HARNESS | 10017-10025 | |
| 40 | 19M-06-18120 | WIRING HARNESS | 10001-10011 | |
| 41 | 21T-38-12270 | CLIP | 10001-@ | |
| 42 | 113-03-21170 | SPACER | 10001-@ | |
| 43 | 01010-81060 | BOLT | 10001-@ | |
| 44 | 01643-31032 | WASHER | 10001-@ | |
| 45 | 198-06-41230 | BRACKET | 10001-@ | |
| 46 | 08053-01512 | CLIP | 10001-@ | |
| 47 | 7861-92-3320 | SENSOR,ENGINE WATER TEMPERATURE | 10001-@ | |
| 48 | 08053-01512 | CLIP | 10001-@ | |
| 49 | 08028-56055 | CABLE | 10001-@ | |
| 50 | 01010-81020 | BOLT | 10001-@ | |
| 51 | 01602-21030 | WASHER,SPRING | 10001-@ |
