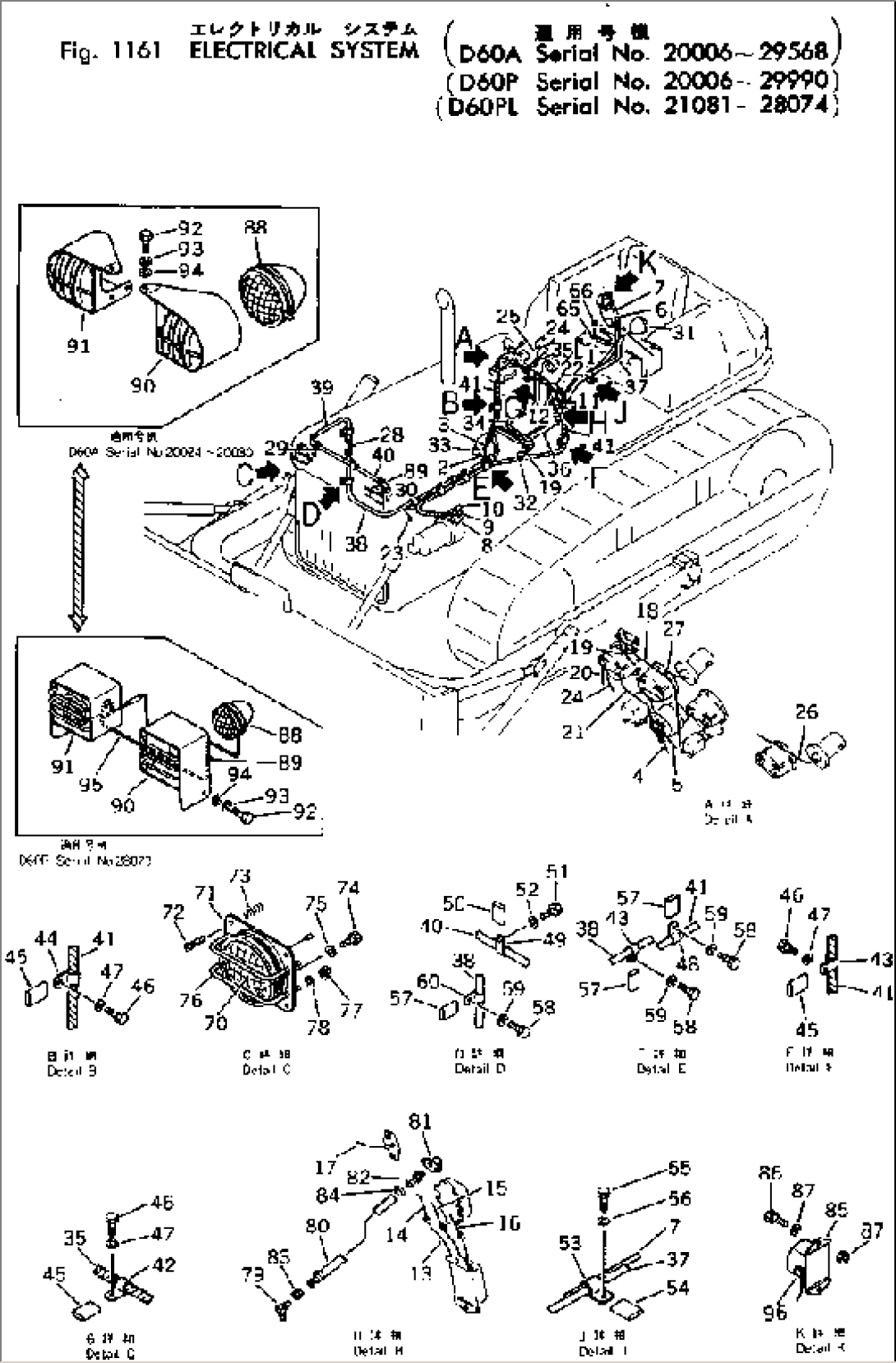

ELECTRICAL SYSTEM(#20006-29990)

ELECTRICAL SYSTEM(#20006-29990)
ItemPart No.Part NameQtySerial No.
1144-06-24114CABLE.-29990
144-06-24111CABLE20024-.
144-06-24110CABLE20006-20021
2144-06-24121CABLE20024-29990
144-06-24120CABLE20006-20021
3144-06-24132CABLE20032-29990
144-06-24131CABLE20024-20031
144-06-24130CABLE20006-20021
4144-06-24141CABLE20032-29990
144-06-24140CABLE20006-20031
5144-06-24152CABLE20054-29990
144-06-24151CABLE20032-20053
144-06-24150CABLE20006-20031
6144-06-24161CABLE20024-29990
144-06-24160CABLE20006-20021
7144-06-24171CABLE20024-29990
144-06-24170CABLE20006-20021
8144-06-24181CABLE20024-29990
144-06-24180CABLE20006-20021
9144-06-24191WIRE20024-29990
144-06-24190CABLE20006-20021
10144-06-24211CABLE22388-29990
144-06-24211CABLE20024-22387
144-06-24210CABLE20006-20021
11131-06-14390WIRE20006-29990
12144-06-24222WIRE20032-29990
144-06-24221CABLE20024-20031
144-06-24220CABLE20006-20021
13144-06-24231CABLE22388-29990
144-06-24231CABLE20024-22387
144-06-24230CABLE20006-20021
14144-06-24240CABLE20006-29173
15144-06-24251CABLE20032-29990
144-06-24250CABLE20024-20031
16144-06-24260CABLE20006-29990
17144-06-24270CABLE20006-29990
18144-06-24280CABLE20006-29990
19144-06-24290CABLE20006-29990
20144-06-24310CABLE20006-20021
21144-06-24320CABLE20006-20021
22144-06-24330CABLE20006-20021
23144-06-24340CABLE20006-20021
24144-06-24350CABLE20006-20021
25144-06-24360CABLE20006-20021
26144-06-24370CABLE20006-29990
27144-06-24380CABLE20006-29990
28144-06-24390CABLE20006-29990
29144-06-24410CABLE20006-29990
30144-06-24420CABLE20006-29990
31144-06-24430CABLE20006-29990
3208038-00519CAP22388-29990
140-06-18260CAP20006-22387
3308038-00035CAP22388-29990
08038-02027CAP22388-29990
140-06-18250CAP20006-22387
34144-06-24440TUBE20006-20021
35144-06-24450TUBE20006-20021
36144-06-24460TUBE20006-20021
37144-06-24470TUBE20006-29990
38144-06-24480TUBE20006-29990
39144-06-24490TUBE20006-29990
40144-06-24510TUBE20006-29990
41130-06-14120TAPE20006-29990
42140-06-18440CLIP20006-29990
4308036-11214CLIP22388-29990
130-06-14220CLIP20006-22387
44140-06-18440CLIP20006-29990
45131-06-44410SEAT20006-29990
4601010-31016BOLT20006-29990
4701602-01030WASHER20006-29990
4808036-10610CLIP20006-29990
4908036-10814CLIP28241-29990
08036-10614CLIP20006-28240
50131-06-44410SEAT20006-29990
5101010-31016BOLT20006-29990
5201602-01030WASHER20006-29990
5308036-01414CLIP22388-29990
140-06-18440CLIP20006-22387
54131-06-44410SEAT20006-29990
5501010-31016BOLT20006-29990
5601602-01030WASHER20006-29990
57131-06-44410SEAT22388-29990
131-06-44410SEAT20006-22387
5801010-31016BOLT22388-29990
01010-31016BOLT20006-22387
5901602-01030WASHER22388-29990
01602-01030WASHER20006-22387
6008036-10814CLIP22388-29990
08036-10614CLIP22388-29990
08036-10614CLIP20006-22387
65141-06-11410WIRE6357-29990
6601580-00806NUT22388-29990
01500-30807NUT20006-22387
144-06-13102HEAD LAMP ASS'Y,L.H.22388-29990
\0\144-06-13101HEAD LAMP ASS'Y,L.H.20032-22387
\0\144-06-13101HEAD LAMP ASS'Y,L.H.20006-20021
144-06-13202HEAD LAMP ASS'Y,R.H.22388-29990
\0\144-06-13201HEAD LAMP ASS'Y,R.H.20032-22387
\0\144-06-13201HEAD LAMP ASS'Y,R.H.20006-20021
70144-06-13311LAMP22388-29990
\0\144-06-13310LAMP20032-22387
\0\144-06-13310LAMP20006-20021
08113-02480BULB¤ 80W20032-29990
08113-02480BULB¤ 80W20006-20021
71144-06-13130BRACKET,L.H.20032-29990
144-06-13130BRACKET,L.H.20006-20021
144-06-13220BRACKET,R.H.20032-29990
144-06-13220BRACKET,R.H.20006-20021
72131-06-43230SCREW20032-29990
131-06-43230SCREW20006-20021
73144-06-13150SPRING20032-29990
144-06-13150SPRING20006-20021
7401210-40408SCREW22388-29990
01210-20408SCREW20032-22387
01210-20408SCREW20006-20021
7501601-00410WASHER20032-29990
01601-00410WASHER20006-20021
76144-06-13120GUARD20032-29990
144-06-13120GUARD20006-20021
7701580-00605NUT22388-29990
01500-30605NUT20032-22387
01500-30605NUT20006-20021
7801602-00619WASHER20032-29990
01602-00619WASHER20006-20021
144-06-21201JOINT ASS'Y20024-29990
144-06-21200JOINT ASS'Y20006-20021
79144-06-21160ELBOW20006-29990
80144-06-21190HOSE20024-29990
144-06-21170HOSE20006-20021
81144-06-21180ELBOW20024-29990
135-06-22310ELBOW20006-20021
82135-06-22320NIPPLE20006-29990
83135-06-22320NIPPLE20006-29990
84135-06-22350CLAMP20006-29990
8508088-00000SWITCH20006-29990
8601010-30818BOLT22388-29990
\0\01000-30818BOLT20006-22387
8701602-00825WASHER20006-29990
01580-00806NUT20006-29990
8808128-02400HEAD LAMP ASS'Y,REAR20032-29990
08128-02400HEAD LAMP ASS'Y,HEAD AND REAR20024-20030
08113-02480BULB¤ 80W20032-29990
89130-06-44711GROMMET20024-20030
90144-06-15110BRACKET20024-20030
91144-06-15120BRACKET20024-20030
9201010-31230BOLT20024-20030
9301602-01236WASHER20024-20030
9401643-01232WASHER20024-20030
95144-804-6210CABLE28073-29990
9608038-00519CAP23569-29990
