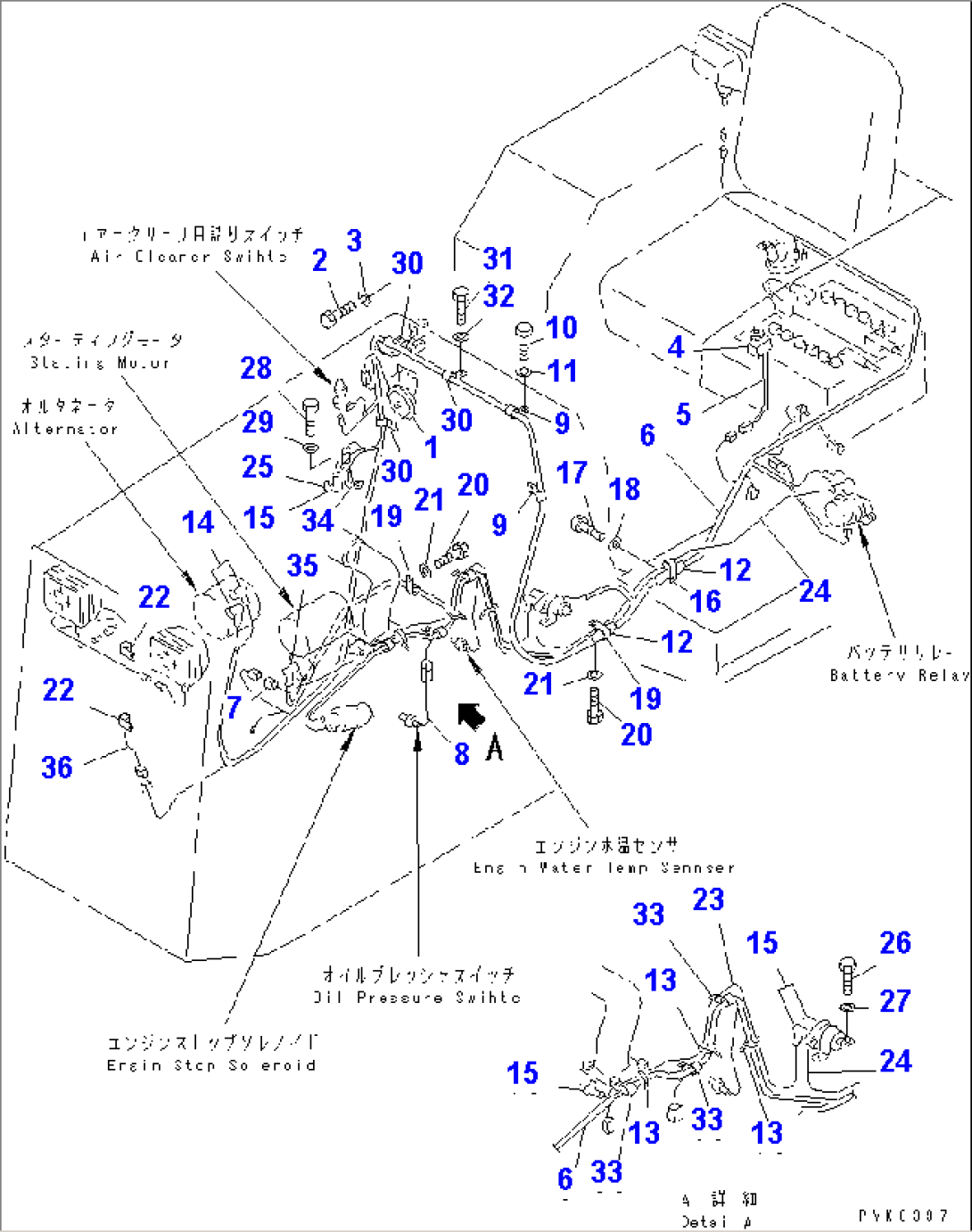

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08160-62430 | HORN | 47617-@ | |
| 2 | 01010-80820 | BOLT | 47617-@ | |
| 3 | 01602-20825 | WASHER,SPRING | 47617-@ | |
| 4 | 08064-10000 | HORN SWITCH,HORN | 47617-@ | |
| 5 | 114-06-48551 | WIRE ASS'Y | 47617-@ | |
| 6 | 114-06-51111 | WIRING HARNESS | 47617-@ | |
| 6 | 114-06-51281 | WIRING HARNESS,(35A ALTERNATOR AND TRIMMING) | 47617-@ | |
| 6 | 203-06-57241 | FUSIBLE LINK | 47617-@ | |
| 6 | 08020-20000 | DIODE | 47617-@ | |
| 7 | 114-06-51221 | WIRING HARNESS | 47617-@ | |
| 8 | 114-06-51232 | WIRING HARNESS | 49182-@ | |
| 8 | 114-06-51231 | WIRING HARNESS | 47617-48181 | |
| 9 | 424-09-12550 | CLIP | 47617-@ | |
| 10 | 01010-81020 | BOLT | 47617-@ | |
| 11 | 01643-31032 | WASHER | 47617-@ | |
| 12 | 113-06-23220 | COVER | 47617-@ | |
| 13 | 08034-00414 | BAND | 47617-@ | |
| 14 | 08038-00519 | CAP | 47617-@ | |
| 15 | 08038-02027 | CAP | 47617-@ | |
| 16 | 141-01-33250 | CLIP | 47617-@ | |
| 17 | 01010-81020 | BOLT | 47617-@ | |
| 18 | 01643-31032 | WASHER | 47617-@ | |
| 19 | 08036-03014 | CLIP | 47617-49533 | |
| 20 | 01010-81020 | BOLT | 47617-@ | |
| 21 | 01643-31032 | WASHER | 47617-@ | |
| 22 | 08036-11014 | CLIP | 47617-@ | |
| 23 | 114-06-51130 | WIRE | 47617-49533 | |
| 24 | 114-06-51140 | WIRE | 47617-@ | |
| 25 | 600-815-8930 | SWITCH,SAFETY RELAY | 49204-49533 | |
| 25 | 203-06-59320 | SWITCH,SAFETY RELAY | 47617-49203 | |
| 26 | 01010-80620 | BOLT | 47617-@ | |
| 27 | 01643-30623 | WASHER | 47617-@ | |
| 28 | 01010-80820 | BOLT | 47617-@ | |
| 29 | 01643-30823 | WASHER | 47617-@ | |
| 30 | 08036-01814 | CLIP | 47617-@ | |
| 31 | 01010-81016 | BOLT | 47617-@ | |
| 32 | 01643-31032 | WASHER | 47617-@ | |
| 33 | 08036-01414 | CLIP | 47617-@ | |
| 34 | 08038-00525 | CAP | 47617-@ | |
| 35 | 08038-06031 | CAP | 47617-@ | |
| 36 | 114-06-43232 | WIRE ASS'Y | 47617-@ |
