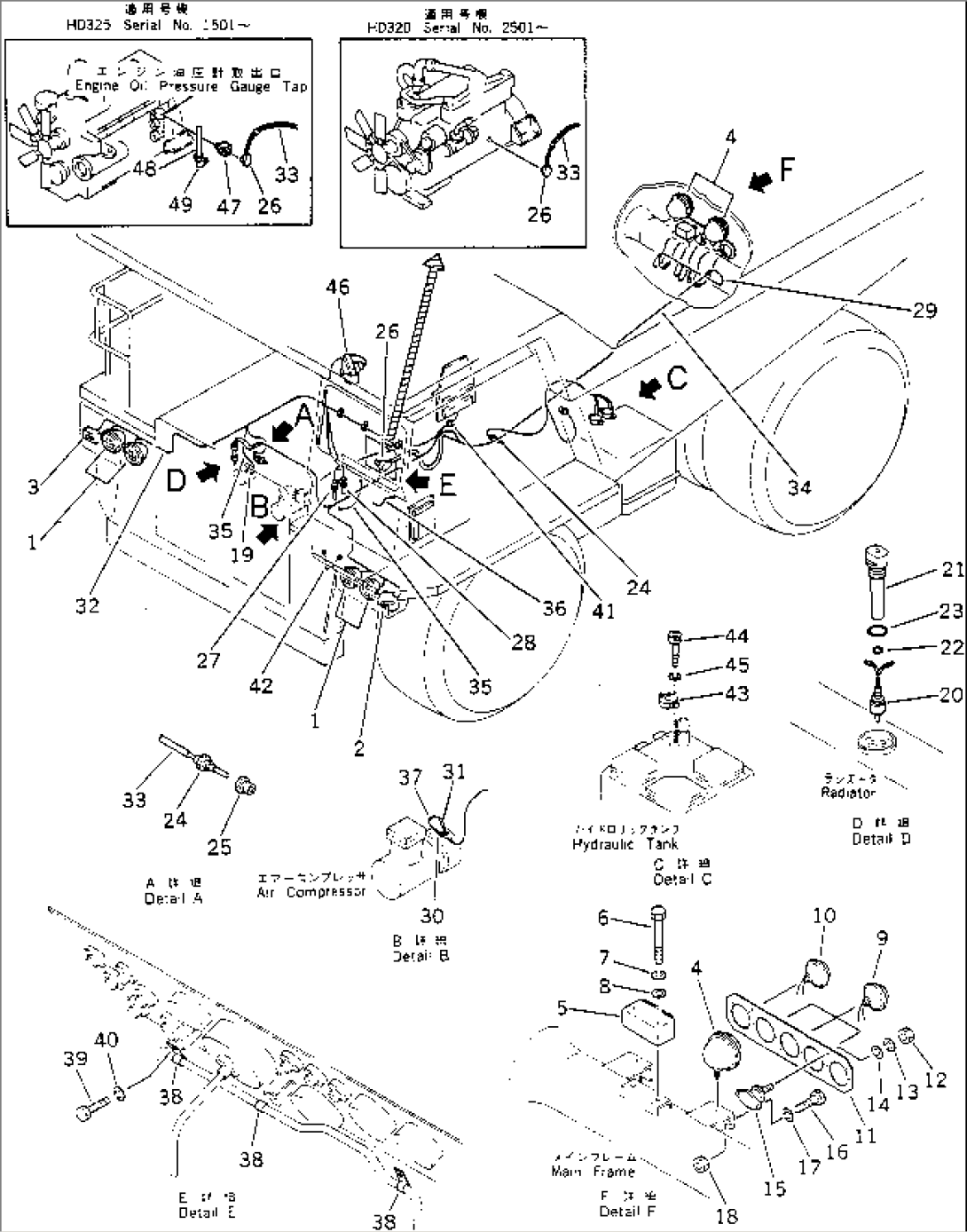

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08120-32440 | LAMP,HEAD | 1501- | |
| 1 | 08113-02440 | BULB, 40W | 1501- | |
| 2 | 08130-62400 | LAMP ASS'Y | 1501- | |
| 2 | 08105-02420 | BULB, 25W | 1501- | |
| 3 | 08130-82400 | LAMP ASS'Y | 1501- | |
| 3 | 08110-12410 | BULB, 12W | 1501- | |
| 4 | 08128-22400 | LAMP ASS'Y,BACK-UP | 1501- | |
| 4 | 08113-02480 | BULB, 80W | 1501- | |
| 5 | 566-06-15950 | ALARM,BACK | 1501- | |
| 6 | 01011-51005 | BOLT | 1501- | |
| 7 | 01602-21030 | WASHER,SPRING | 1501- | |
| 8 | 01643-31032 | WASHER | 1501- | |
| 9 | 08131-12400 | LAMP ASS'Y | 1501- | |
| 9 | 08104-12420 | BULB, 25/10W | 1501- | |
| 9 | 08102-02403 | BULB, 3W | 1501- | |
| 10 | 08131-12400 | LAMP ASS'Y | 1501- | |
| 10 | 08105-12420 | BULB, 25W | 1501- | |
| 11 | 566-06-13363 | BRACKET | 1501- | |
| 12 | 01580-11008 | NUT | 1501- | |
| 13 | 01602-21030 | WASHER,SPRING | 1501- | |
| 14 | 01643-21032 | WASHER | 1501- | |
| 15 | 565-03-11270 | CUSHION | 1501- | |
| 16 | 01010-50820 | BOLT | 1501- | |
| 17 | 01602-20825 | WASHER,SPRING | 1501- | |
| 18 | 01580-10806 | NUT | 1501- | |
| 19 | 08038-02027 | CAP | 1501- | |
| 20 | 430-06-13631 | SWITCH,WATER LEVEL | 1501- | |
| 21 | 562-07-16160 | PLUG | 1501- | |
| 22 | 07002-01023 | O-RING | 1501- | |
| 23 | 07002-03634 | O-RING | 1501- | |
| 24 | 08620-00000 | SENSOR,THERMOSTAT | 1501- | |
| 25 | 565-06-13212 | ADAPTER | 1501- | |
| 26 | 566-06-13872 | SWITCH,PRESSURE | 1501- | |
| 27 | 281-06-13913 | SENSOR | 1501- | |
| 28 | 198-06-11940 | SENSOR | 1501- | |
| 29 | 566-06-42250 | WIRE ASS'Y | 1501- | |
| 30 | 565-06-11960 | CABLE | 1501- | |
| 31 | 568-06-12470 | CABLE | 1501- | |
| 32 | 566-06-42220 | WIRE ASS'Y | 1501- | |
| 33 | 566-06-42230 | HARNESS | 1501- | |
| 34 | 566-06-42240 | WIRE ASS'Y | 1501- | |
| 35 | 568-06-12220 | CABLE | 1501- | |
| 36 | 566-06-11641 | WIRE | 1501- | |
| 37 | 566-06-13990 | DIODE | 1501- | |
| 38 | 08036-01814 | CLIP | 1515- | |
| 38 | 08036-01814 | CLIP | 1501-1514 | |
| 39 | 01010-51016 | BOLT | 1515- | |
| 39 | 01010-51016 | BOLT | 1501-1514 | |
| 40 | 01602-21030 | WASHER,SPRING | 1515- | |
| 40 | 01602-21030 | WASHER,SPRING | 1501-1514 | |
| 41 | 281-06-16760 | BAND | 1501- | |
| 42 | 565-06-11641 | WIRE | 1501- | |
| 43 | 566-06-41150 | SWITCH | 1501- | |
| 43 | (\2\209-06-13370) | INDICATOR ASS'Y | (1501-1553) | |
| 44 | 01252-40635 | BOLT | 1501- | |
| 45 | 01602-20619 | WASHER,SPRING | 1501- | |
| 46 | 566-06-13890 | LAMP,CAUTION | 1501- | |
| 46 | 08105-12420 | BULB, 25W | 1501- | |
| 47 | 485-44-11386 | JOINT | 1501- | |
| 48 | 566-06-15211 | TUBE | 1501- | |
| 49 | 6610-81-8820 | ELBOW | 1501- |
